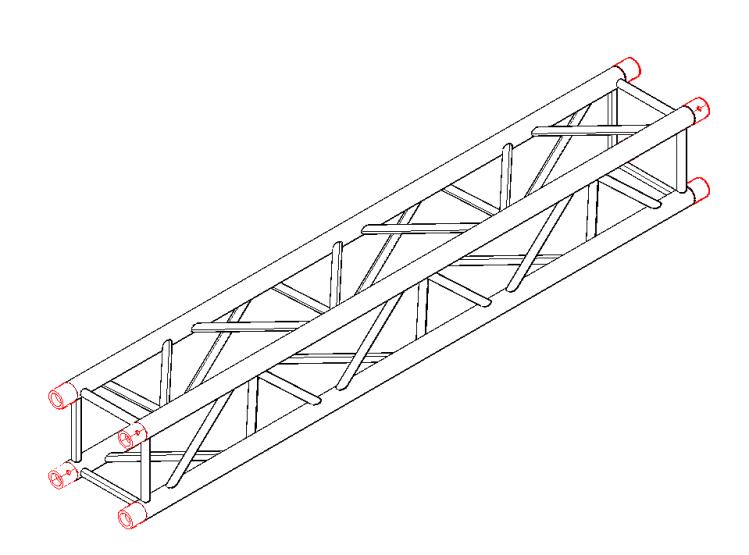

This is a lightweight square aluminum 290×290mm×1m spigot truss. The thickness of the main tubes is ⌀50×3.0mm, while the vice tubes and the brace braces are ⌀20×2.0mm. The pins and R-clip connection system ensures a quick and secure assembly, saving you valuable time on-site. It is a perfect solution for advertising displays or hanging lights.
Item No :
V290Connection :
Pins, R-clipsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingAvailable Length :
500/1000/1500/2000/2500/3000/4000mmProduct Introduction
Lightweight Portable Aluminum Alloy Spigot Truss 290*290mm
Made from high-strength aluminum alloy and finished with a corrosion-resistant coating, this Lightweight 290×290mm Aluminum Truss strikes a perfect balance of durability and portability. 1-meter length makes it easy for transportation and flexible setup.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|

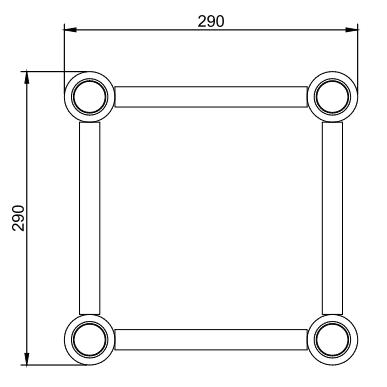

Size |
290×290mm (4-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*2.0mm |
|
Vice Tube |
⌀20*2.0mm |
|
Brace Tube |
⌀20*2.0mm |
|
Available Length |
500/1000/1500/2000/2500/3000/4000mm |
Product Advantage
Built Tough with Premium Aluminum
One Truss, Countless Possibilities
Fast Assembly, Rock-Solid Connection
Designed for Flexibility and Fit
Fabrication Procedure
Material Selection and Cutting Preparation
GF-Truss uses high-strength aluminum alloy to ensure our products are strong and durable. Before production, all raw materials must pass quality checks. After passing, the materials will be cut, shaped, and prepared for forming according to design specifications.
4+4 Milling Machine
Welded components will undergo a high-precision processing using CNC (Numerical Control Equipment), including drilling, deburring, and grinding. This process not only improves the surface quality of the product, but also guarantees that the dimensions of each component match precisely.
Precision Welding Process
Welding is important in constructing load-bearing truss structures, which are essential for the safety and stability of buildings and bridges. Skilled welders can adjust the welding current, speed, and temperature to match the specific requirements of each component.

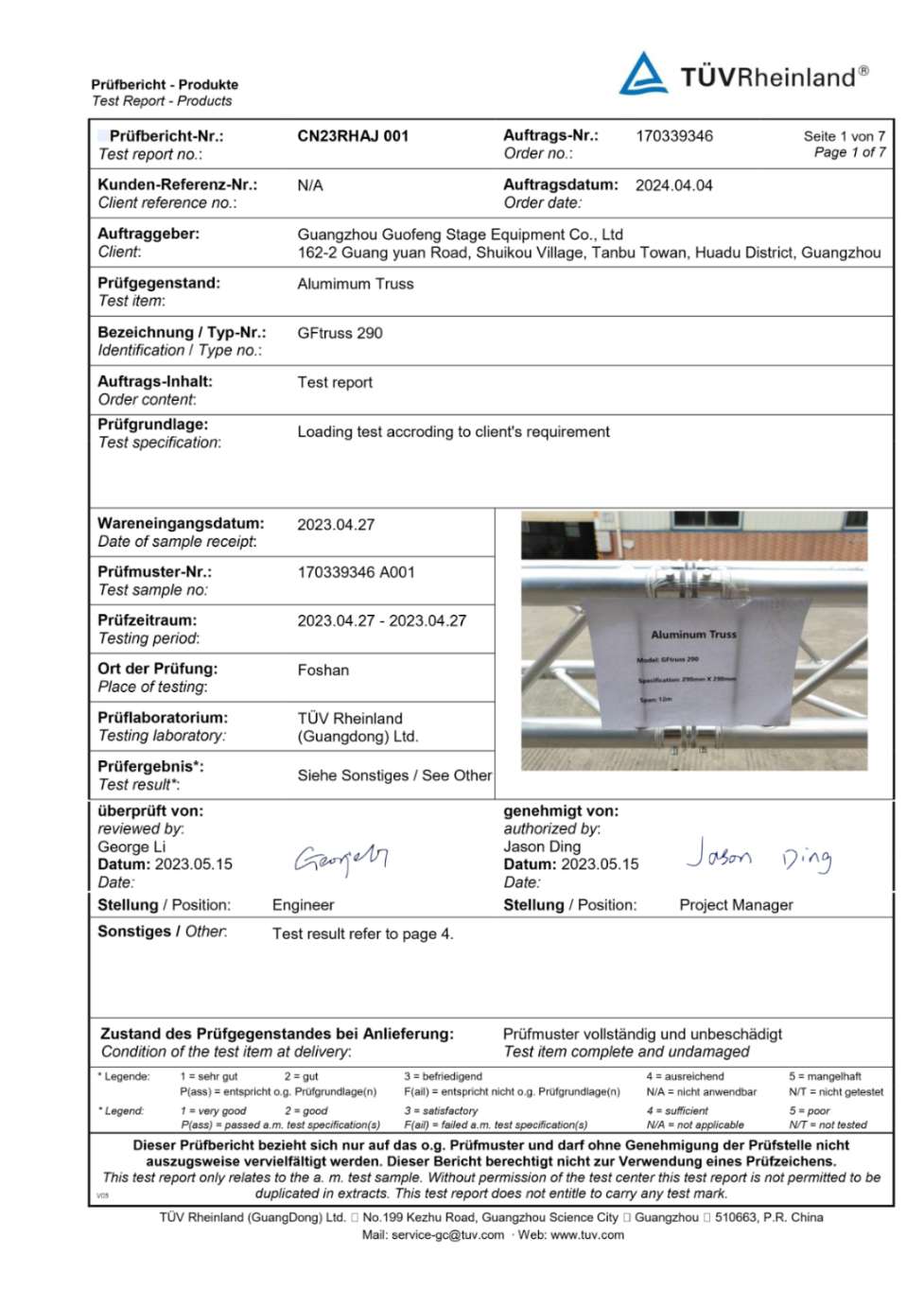

TÜV Certification
|
The test was performed on a 12-meter span of 290*290mm spigot truss. It was pushed to its limits to evaluate its performance under different weight conditions. The results were consistently no damage or collapse across every single test.
Center Point Load: The truss easily handled a concentrated weight of 350 kg at its very center. This proves it can support heavy, single-point loads like a large speaker or a heavy light fixture exactly where you need it.
Two/Three/Four Points Loads: In these tests, the truss was loaded with a total of 450 kg at two points, and then again with 450 kg at three points, and even 500 kg at four points. It passed all these tests without damage shows its ability to safely support multiple pieces of equipment spread across its length.
Distributed Load: We conducted a challenging test by evenly distributing a total weight of 600 kg across a 12-meter span. This uniform weight distribution created even stress, allowing us to evaluate performance under challenging situations. |
 |
