Spigot Truss

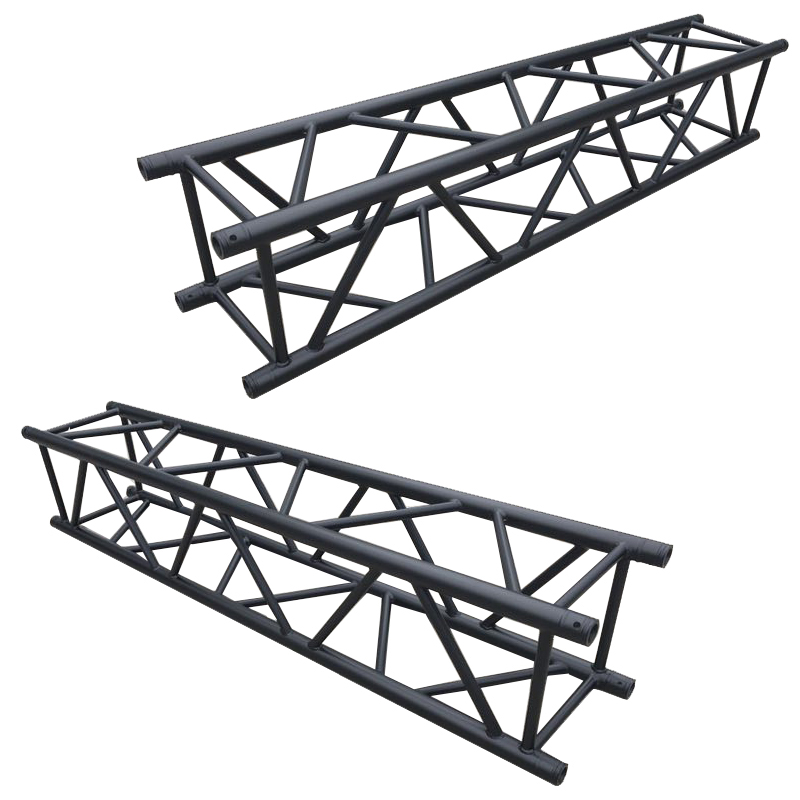

This 400 × 400 mm spigot truss comes in a range of lengths, making it easy to fit into different booth truss or stage truss layouts. It is a solid choice for mid-span structures because it handles substantial loads while remaining manageable during transport and installation. This truss size is widely used in many projects, especially when customers need higher hanging points or wider spans without adding extra weight. Its strong structure makes it a dependable option for event truss systems, trade show booth truss setups, and stage lighting truss applications.

This is a lightweight square aluminum 290×290mm×1m spigot truss. The thickness of the main tubes is ⌀50×3.0mm, while the vice tubes and the brace braces are ⌀20×2.0mm. The pins and R-clip connection system ensures a quick and secure assembly, saving you valuable time on-site. It is a perfect solution for advertising displays or hanging lights.

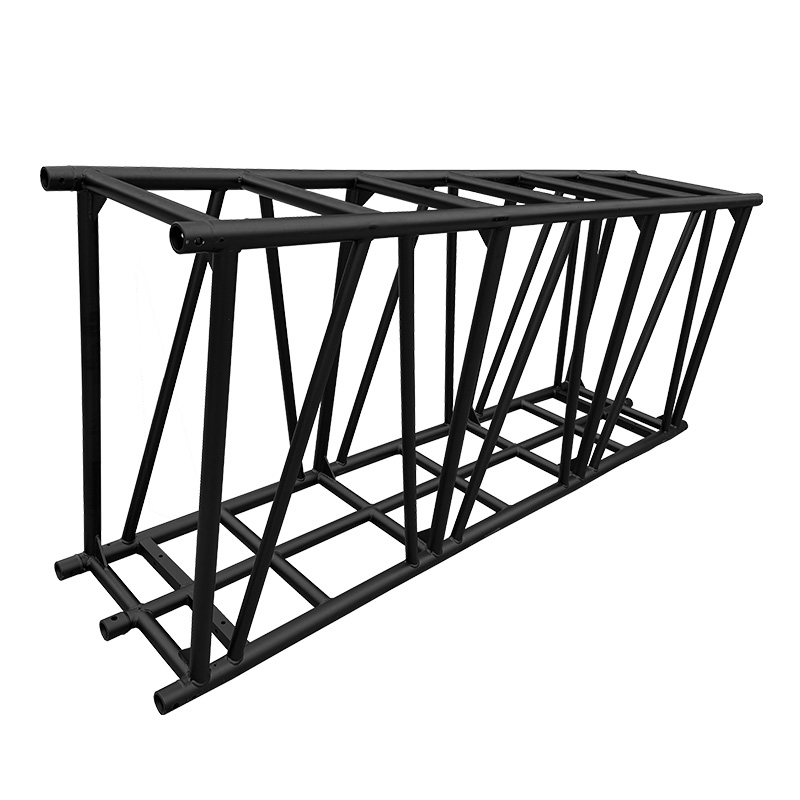

This large-scale black aluminum 650×1200mm spigot truss is constructed of main tube(⌀60×5.0mm), vice tubes(⌀50x×4.0mm) and brace tubes (⌀40×3.0mm). Equipped with the reinforced sleeves and the triangle plates, this 650×1200mm truss is more stronger and more resistant to deformation. It can also be designed as a pre-rig light truss, offering a very high loading capacity.

This high load capacity aluminum 520x760mm spigot truss are made from high-strength aluminum alloy. It is constructed of main tube(⌀50x4.0mm), vice tubes(⌀50x2.0mm) and brace tubes (⌀30x2.0mm). The length of 520x760mm truss is available in 1000mm/2000mm/3000mm/4000mm. It has an excellent load-bearing and span capacity.

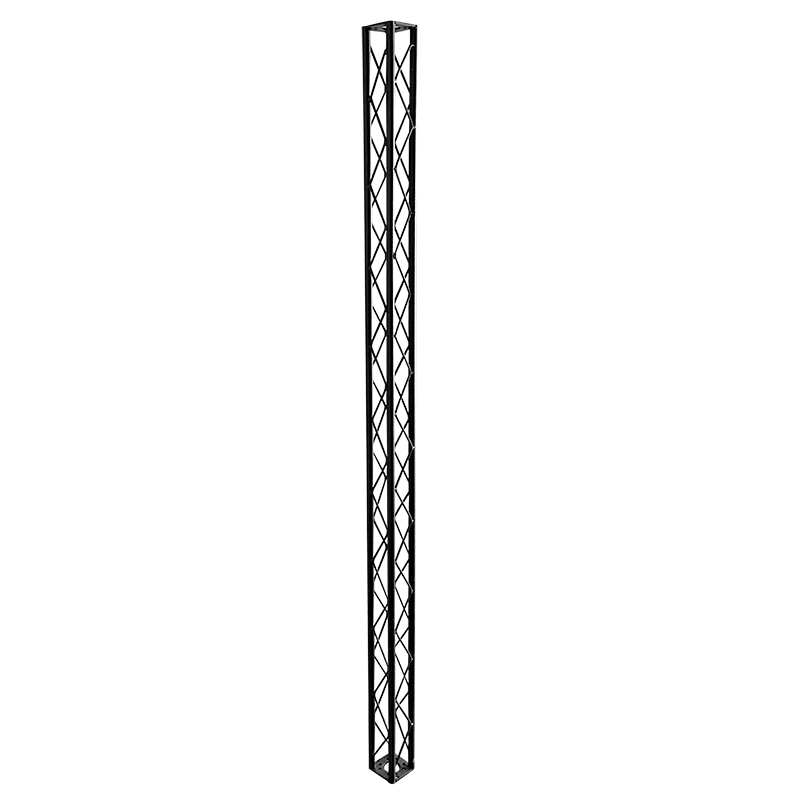

This is an Aluminum 150×150mm Square Truss. It is constructed of main tube(⌀30×3.0mm), vice tubes(⌀14×2.0mm) and brace tubes (⌀14× 2.0mm). This 150×150mm truss is renowned for its light weight and flexibility, making it the ideal choice for small scale displays and backdrop construction. In limited spaces, it can be quickly installed and disassembled, while also offering excellent aesthetics and portability.

Outdoor events aluminum spigot 520×520mm truss is constructed of main tube(⌀50×3.0mm), vice tubes(⌀50×2.0mm) and brace tubes (⌀25×2.0mm). This Outdoor Events  Aluminum Truss can suspend lighting at multiple points, along with LED screens and speakers. It is suitable for medium and large performance structures.

Stage lighting aluminum 400x400mm spigot truss is ideal for medium to large events that require a high loading capacity. Depending on your specific application, you can choose either a two-sided or a four-sided brace tube truss. We offer an extensive range of lengths to meet the diverse demands of your projects.
