Stage lighting aluminum 400x400mm spigot truss is ideal for medium to large events that require a high loading capacity. Depending on your specific application, you can choose either a two-sided or a four-sided brace tube truss. We offer an extensive range of lengths to meet the diverse demands of your projects.
Item No :
V400Product Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingWeight :
9KGAvailable Length :
500/1000/1500/2000/2500/3000/4000mmProduct Introduction

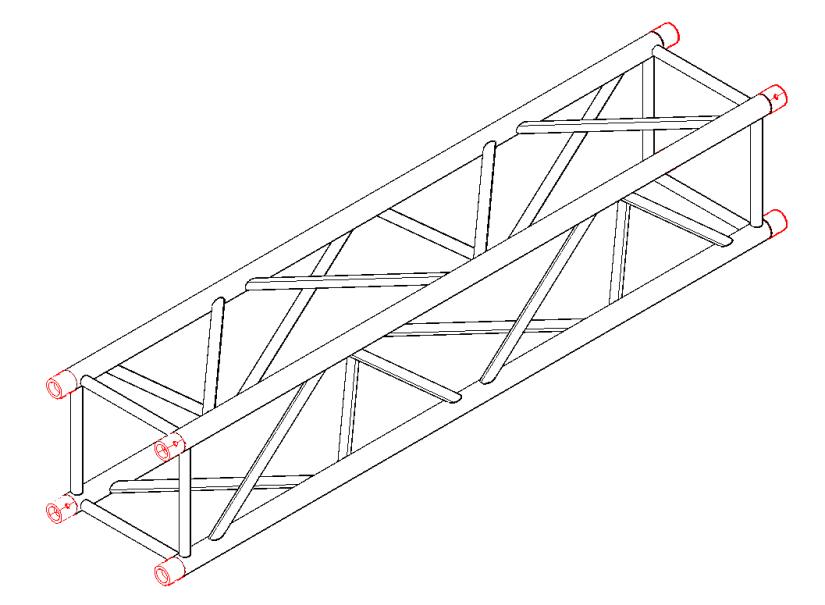

Concert Stage Lighting Aluminum Spigot Truss 400x400mm
Need a truss that's both tough and easy to work with?
The Stage Lighting Aluminum 400×400mm truss delivers. It carries high loads reliably, yet ensures fast and easy transportation, handling, and installation, particularly in limited spaces. That combination of strength and practicality makes it a popular, reliable solution for mid-scale events and indoor shows to setups that need to move frequently.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |

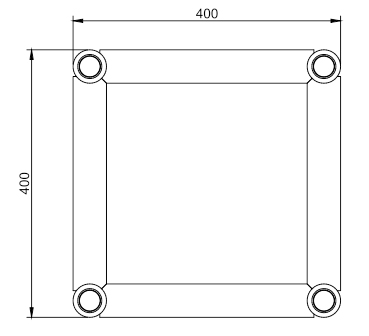

400x400mm (4-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*3.0mm/⌀50*2.0mm |
|
Vice Tube |
⌀20*2.0mm |
|
Brace Tube |
⌀20*2.0mm |
|
Available Length |
500/1000/1500/2000/2500/3000/4000mm |
Fabrication Procedure

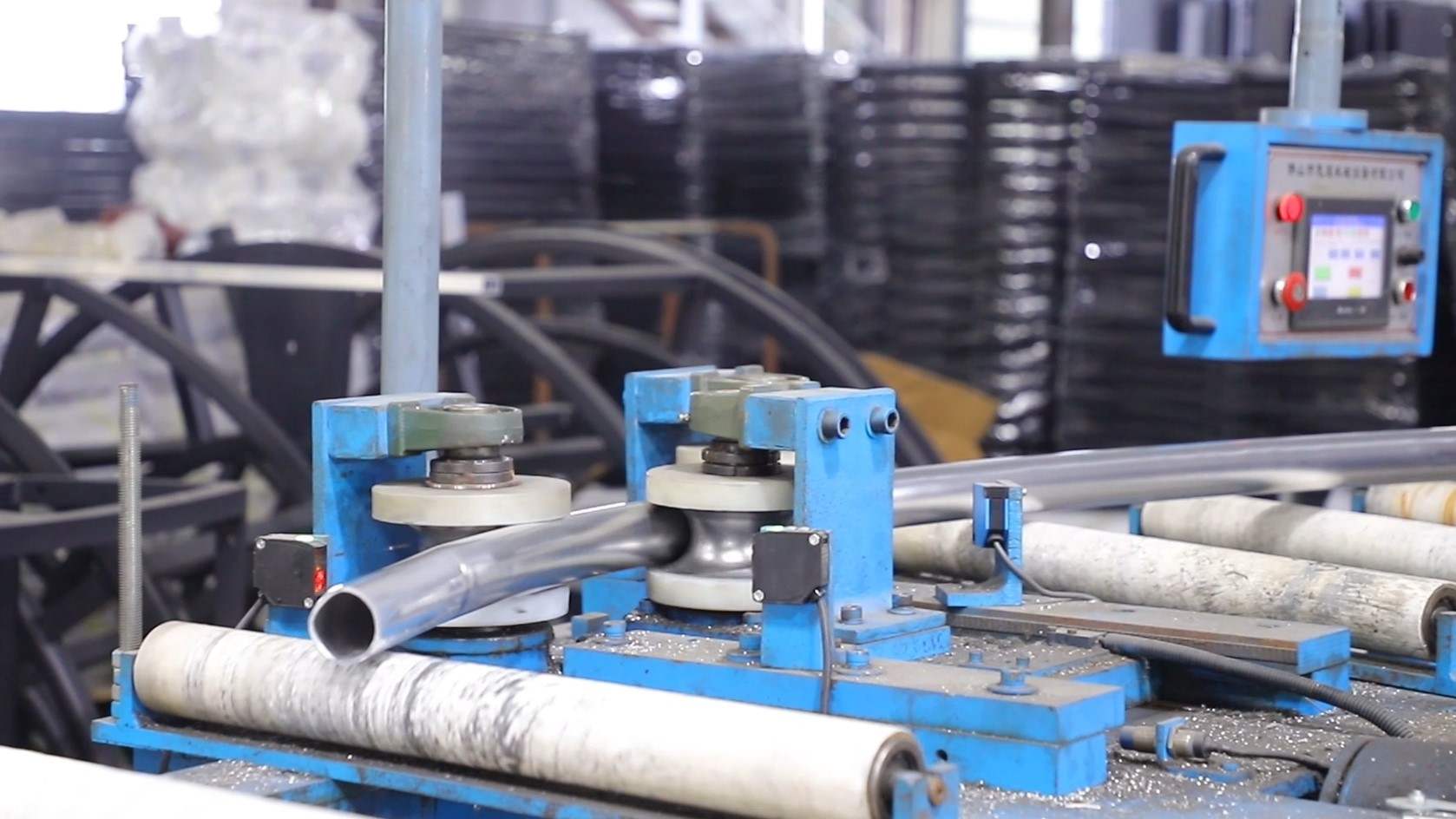

Our aluminum tube bending machine is built to shape single tubes with accuracy. It uses controlled force to bend the aluminum without causing any cracks, wrinkles, or damage to the surface. This means we can create smooth curves and perfect angles, even for our most complex truss designs.
4+4 Milling Machine
CNC Machining allows us to cut, drill, and mill aluminum components with high accuracy. Every movement of the cutting tool is computer-controlled, so the parts come out consistent and within tight tolerances. It is easily for CNC machining to create complex shapes that would be difficult or impossible to achieve manually.

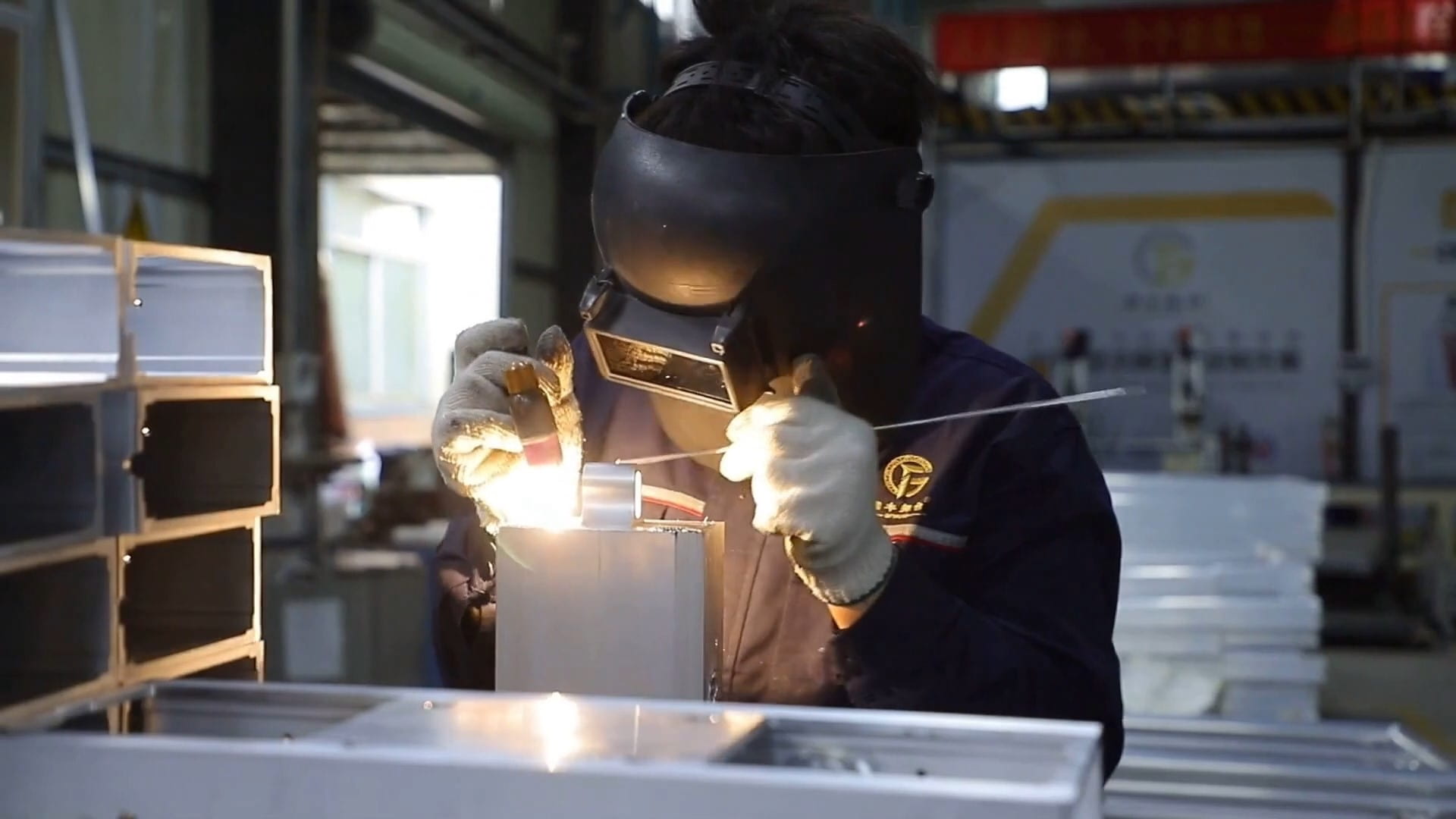

Precision Welding Process
While machines handle precision cutting and bending, the final assembly depends on skilled manual welding. Our experienced welders carefully join each aluminum component, ensuring strong, clean, and durable connections. Every weld is checked for consistency to make sure the finished truss can handle heavy loads without risk.

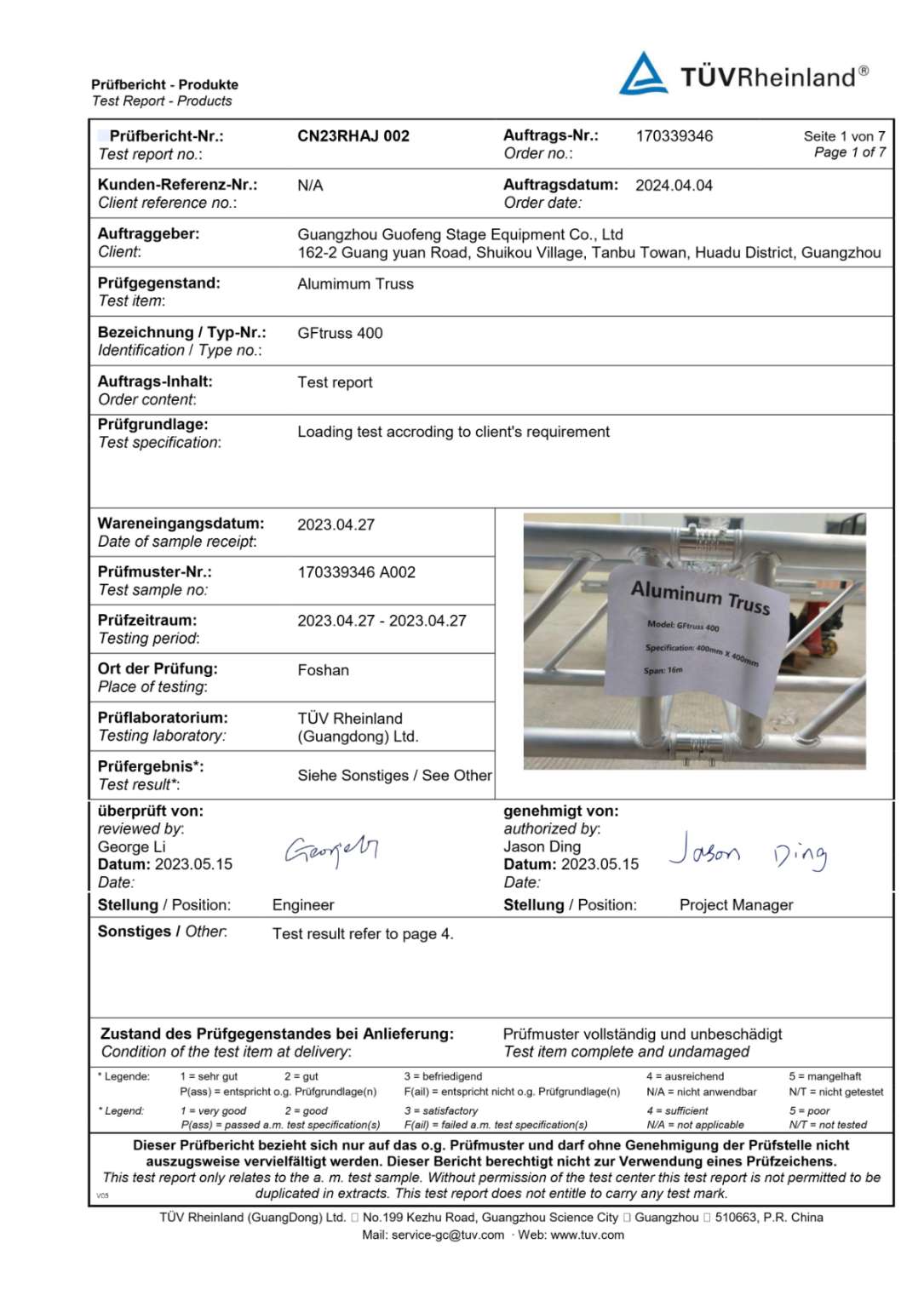

TÜV Certification
|
Our 400x400mm spigot aluminum truss has passed tests by TÜV Rheinland. These tests checked its ability to support weight, ensure safety, and remain stable in tough conditions.
We tested a 16-meter-long truss with different loads, including center point, two-point, three-point, four-point, and fully distributed loads. The toughest test had an evenly distributed load of 800 kg to mimic extreme real-world use.
These results show that the 400 mm spigot truss is of high strength and durable, making it great for large events, LED screen setups, stage roofs, and heavy-duty installations. |
 |
FAQ
1. Can I customize size, color, or shape of the truss system?
Yes, we offer customization services for truss systems, including size, color, and shape. Simply share your requirements with us, and our team will provide tailored solutions to meet your needs.
2. How can I customize my products？
To customize your product, please share your specifications with us. We will create CAD drawings based on your requirements and discuss the technical details with you. Once everything is confirmed, we will start manufacturing.
3. Is GF-Truss resistant to water, standing in water and extreme temperatures?
Yes, GF-Truss is made from aluminum alloy, which resists corrosion and is a good choice for outdoor usage. However, extreme weather can affect its long-term durability. If the truss is exposed to temperatures over 50°C or below -20°C for a long time, its performance may be effected. For projects with specific environmental needs, please contact our technical team for help.
