Heavy Duty Steel Base plate Dolly for 6pcs 600x600mm Truss Base Plates

Heavy Duty Steel Base plate Dolly for 6pcs 600x600mm Truss Base Plates

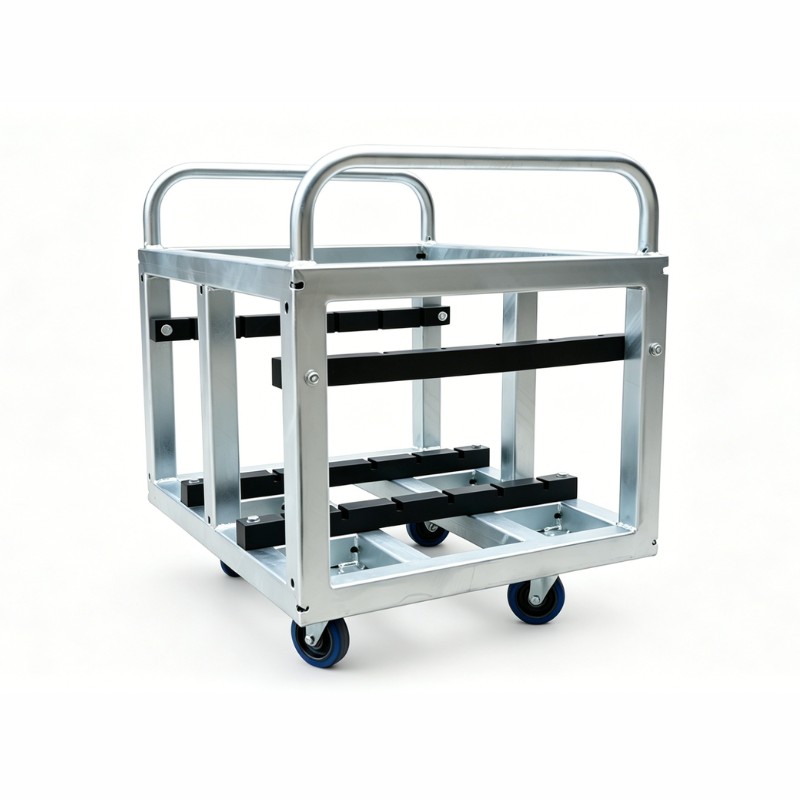

Moving heavy steel base plates is one of the most physically demanding parts of event rigging. Our six in one base plate dolly is designed to solve this problem by organizing and transporting up to six steel plates measuring 600 by 600 mm with an 8mm thickness. By storing these heavy plates vertically, this cart drastically allows stage crews to load, unload, and organize transport space with maximum efficiency.

  • Material :

    Steel
  • Color :

    Galvanized/Black
  • Surface Finish :

    Galvanized/Powder coated
  • capacity :

    Up to 6 base plates
  • Mobility :

    Heavy duty polyurethane wheels

Product Introduction

Heavy Duty Steel Base plate Dolly for 6pcs 600x600mm Truss Base Plates

Heavy duty base plate dolly loaded with six steel plates

Built with a high strength welded steel frame, this dolly handles the immense weight of professional stage rigging gear without bending or warping.



Inside the storage slots, black rubber insert strips cushion each steel plate to prevent metal on metal sliding, and protect the powder coated finish from scratches during transit.



Smooth movement is provided by 4 inch heavy duty polyurethane wheels, featuring two swivel castors with locking brakes and two without, ensuring both effortless steering and secure parking on uneven stage surfaces.





Product Specification

Storage Capacity Holds up to 6 baseplates
Supported Plate Dimensions 600mm (W) * 600mm (L)
Supported Plate Thickness 8mm
Self Weight 16kg
Frame Construction All welded high strength Q235 with durable powder coating
Caster Wheels 4 inch heavy duty polyurethane casters
Caster Configuration 2 swivel wheels with brake locks and 2 standard swivel wheels
Interior Protective System Dense black rubber positioning strips in each slot
Handling System Integrated heavy duty steel handles on both ends





Product Highlights

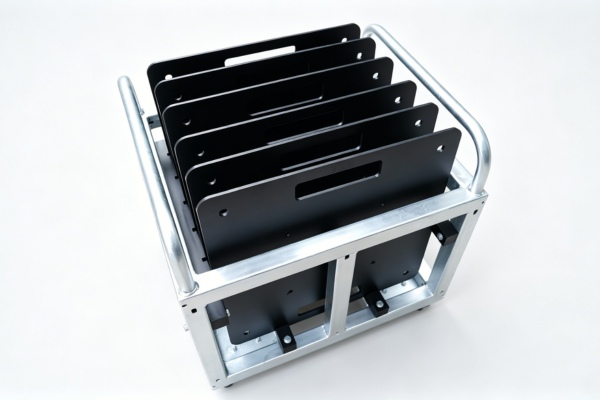

Base plate storage cart for six 600 by 600 mm truss base plates





  • High Transport Efficiency

This dolly holds up to six heavy steel plates vertically. It maximizes truck space during transit and allows event crews to quickly load or unload gear with minimal effort.



Robust Welded Frame

Crafted from industrial grade steel, the all welded structure is built to carry heavy stage equipment over long periods of use without structural failure.



Mechanical Plate Protection

Every slot is fitted with dense black rubber strips that guide the plates into position. These inserts prevent metal rubbing against metal, stopping scratches during transit.



Heavy Duty PU Casters

Equipped with four inch polyurethane wheels that roll smoothly over diverse surfaces. Two wheels feature foot brakes that lock both swivel and rotation to hold the dolly securely in place.





FAQ

Q: Are the protective black rubber strips durable, or will they peel off after heavy use?

A: The black rubber strips are secured with hexagon socket countersunk head screws and nuts. As they are mechanically bolted to the frame rather than glued, they will not peel or slide out of position even under constant daily friction.



Q: Will base plates that are thicker than 8 mm fit in the slots?

A: The individual slots on this dolly are designed to comfortably fit plates with a thickness of up to 8 mm. If you have thicker base plates, please contact us because we can adjust the slot width during manufacturing to fit your specific needs.



Q: Can we request a custom size dolly for larger or non standard truss base plates?

A: Yes. We offer custom services. If your stage setup uses larger plates or non standard dimensions, we can customize the frame and slot widths to your exact specifications. Please contact our support team with your requirements.
