How GF-Truss Built a Zero Error LED Tower

In modern stage design, LED Truss Towers are not only the support, but also the skeleton of the visual spectacle. In modern stage design, LED truss towers are not only the support but also the skeleton of the visual spectacle. However, when creative inspiration meets stringent engineering constraints, every challenge tests the limits of technology and craftsmanship. The recently finished LED truss tower project is a fantastic example of art, precision and challenge.

Project Background

Out of the Box Design

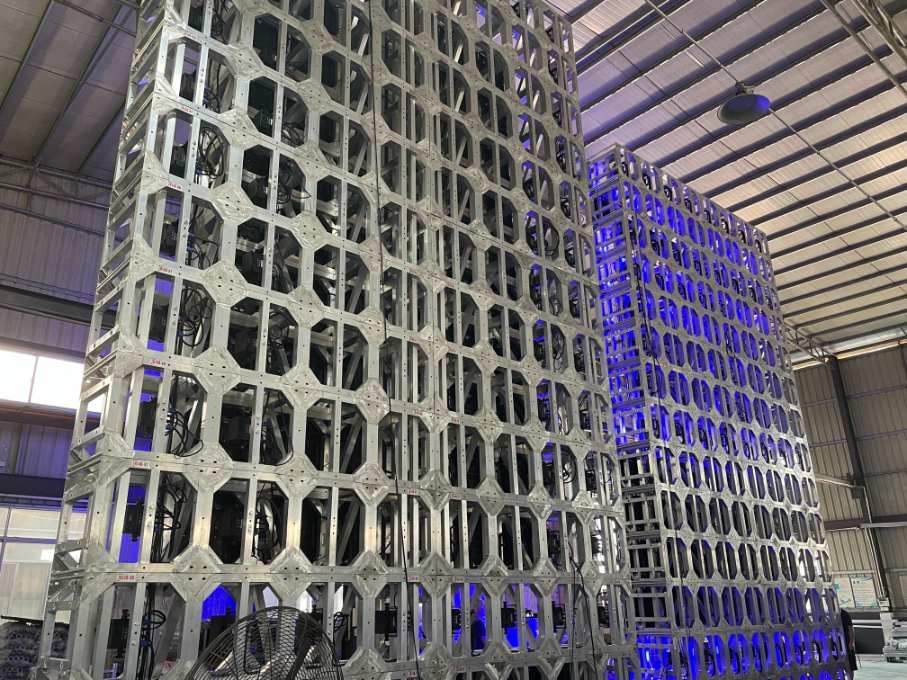

Several aluminum LED tower systems needed to perfectly replicate their designs in precise 1:1 scale. This is not just a simple structural build, but also translating every detail and curve on the design drawings into a solid and precise structure in reality.

Millimeter Precision and Seamless Stacking

The core challenge of the project was seamless stacking. The customer imposed a strict requirement. The towers must have positioning pins at the top and at the bottom. The accuracy of the positioning pins and holes must be millimeter-accurate to ensure that any two towers can be stacked together perfectly and securely.

Conventional welding processes often cause thermal expansion and contraction due to high temperatures, resulting in metal deformation. Any slight deviation may cause the stack to fail. In addition, multiple parts of the towers need to be customized and welded in batches. Ensuring different batches and parts fit together tightly in final assembly is the biggest manufacturing challenge.

GF-TRUSS's Solution: Precision and Control

Firstly, we carry out several quality checks. This is not a one-time final inspection. Our strict dimensional measurements and quality control are carried out at every critical point in the process, from raw material entry, component cutting, batch welding, and before final assembly. This ensures that every component meets the design requirements for the final stacking.

Finally, before shipping, we conducted a test-build. We randomly selected different batches of towers for combined stacking to achieve seamless stacking of any two towers. This is not only the fulfillment of our promise to the customer, but also the final test and confident display of our own craftsmanship.

From Concept to Creation

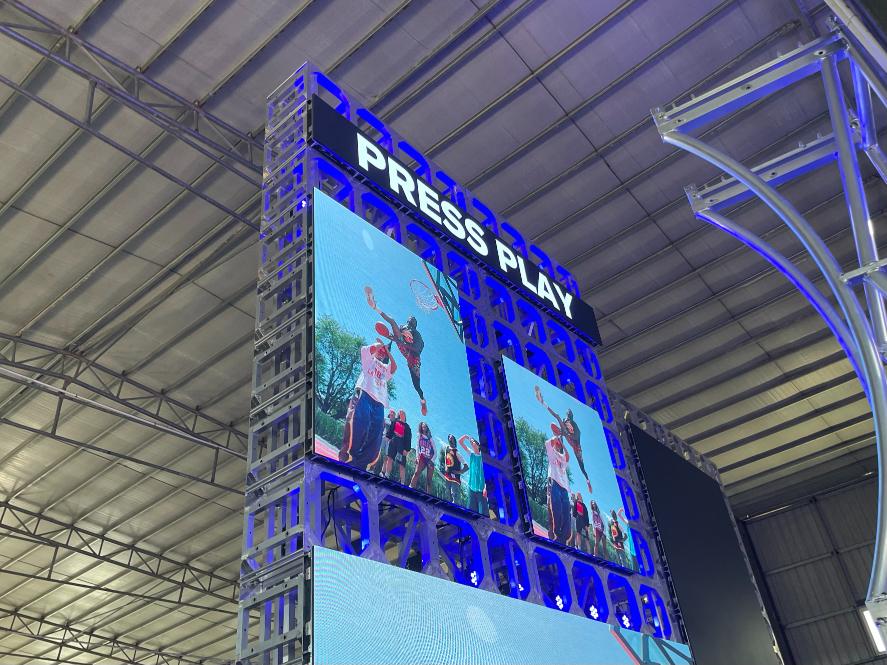

The final result of the project far exceeded our expectations. We successfully delivered a batch of seamlessly stacked LED towers. These towers perfectly realized the unique design concept. The success of this project proves the extraordinary strength of GF-Truss in high-precision customization.
