40m LED Wall Ground Support: Engineered to Support a 12,800 kg LED Wall

The stability of the LED wall ground support is the invisible foundation of every LED panel. Last year, GF-Truss completed a landmark project: a 40m LED Wall Ground Support system designed to support a total LED screen weight of 12,800 kilograms.

Handling a massive 12,800 kg LED screen wall stretched across a 40-meter span isn't basic rigging. It requires a professional, custom-engineered LED wall ground support that carefully manages weight distribution, prevents sagging, and remains rock-solid over such an extreme distance.

The Problem: When Scale Meets Gravity

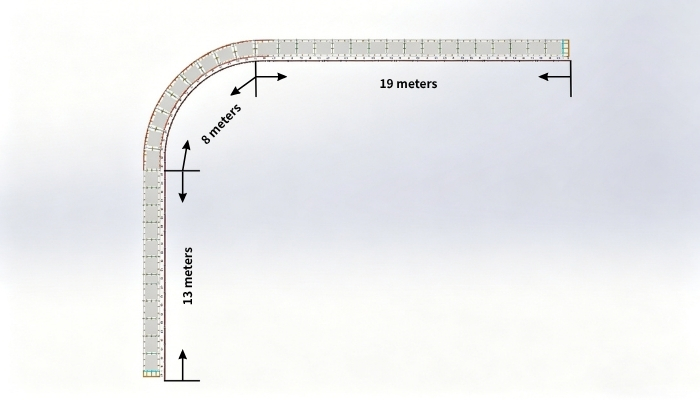

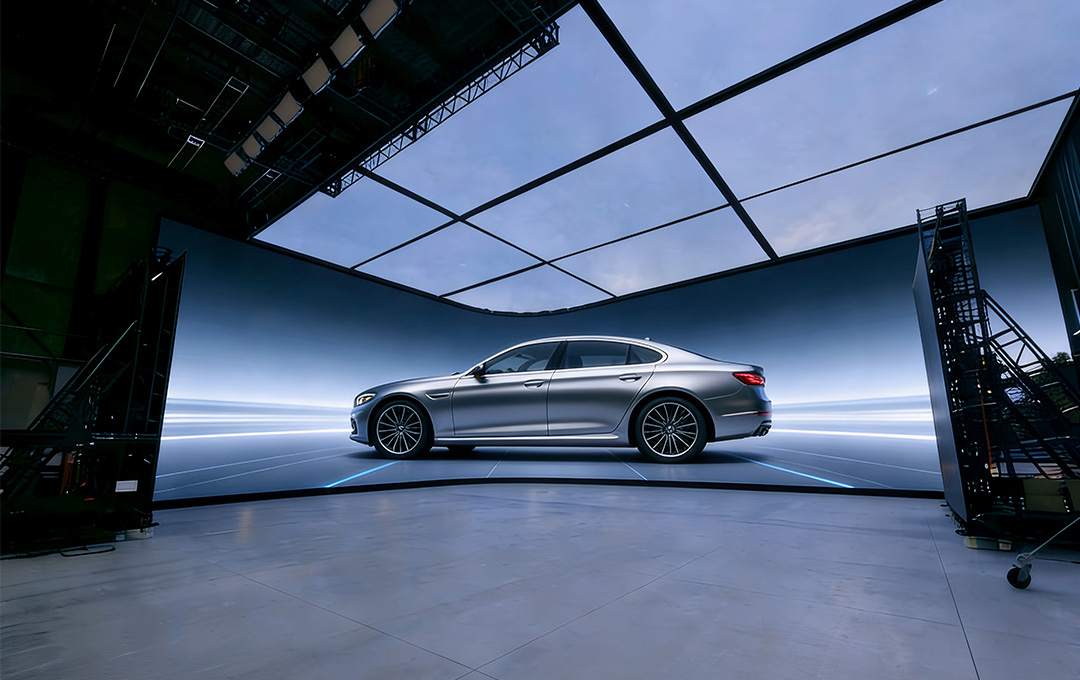

The project called for a specific configuration: an 8-meter central arc integrated with two straight sections of 13 meters and 19 meters. While this creates a stunningly immersive field of view for the camera, it creates a structural nightmare for the engineers.

As the scale grows, it becomes harder to keep the LED wall ground support structure stable under load. The system has to deal with a lot of stress from both vertical and lateral forces because the total weight of the screen is 12,800 kg. The extra length means much larger bending forces, and greater height increases the risk of instability and gradual deformation. Without proper reinforcement, issues such as frame leaning, joint fatigue, and structural distortion can arise rapidly.

The question our engineering team had to answer was simple but terrifying: How do we keep a 12,800 kg curved LED wall perfectly rigid when the dimensions are pushed to such an extreme?

The Solution: Re-Engineering the Backbone of LED Wall Ground Support

We realized that our standard 500mm ladder trusses wouldn't work in these conditions. We needed a custom LED wall ground support solution that treated the LED wall as a permanent part of the building instead of a temporary stage prop.

1. The Anchor Strategy: Custom H-Beam Integration

The most critical breakthrough was our decision to tie the LED screen’s structure directly into the building’s soul. Instead of relying solely on a free-standing base, we proposed a design concept for custom H-beam connectors.

These heavy-duty steel components were designed to bridge the gap between our LED wall ground support and the studio’s existing structural steel columns. By securing the screen to the wall-side columns using H-beams, we effectively neutralized the "tip-over" risk. The building became part of the screen’s skeleton, providing a level of lateral stability.

2. Reinventing the Ladder Truss

In our most standard setups, a 500mm wide ladder truss is more than sufficient, as long as it is not used for large-scale structures. But "standard" was off the table for this project. To combat the immense downward pressure of the 12,800 kg load, we developed three oversized ladder truss systems.

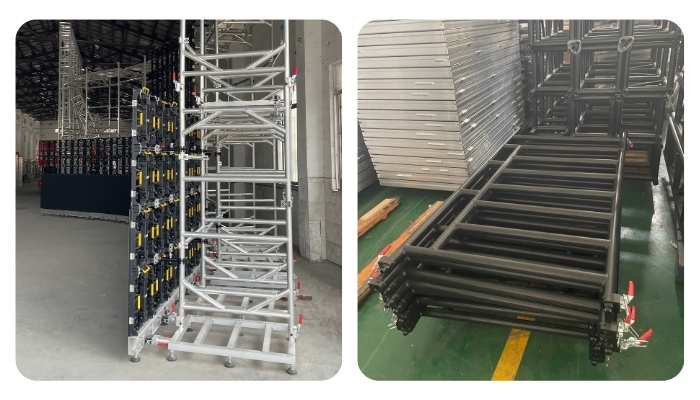

We expanded each dimensions to 2135mm x 1120mm. This increased surface area allowed for better load distribution. To beef up the stiffness even more, we welded in some reinforced crossbars right into the ladder trusses. That helps prevent structural deformation, which is a sneaky issue where the load causes the frame to gradually lean or twist sideways over time.

3. The Precision Curve: Modular Ground Beam Ratios

Creating a 8-meter curve is not as simple as bending a rail. In LED engineering, a curve is actually a series of very small straight lines. If these lines are too long, the "faceting" (the visible angles between cabinets) becomes apparent to the camera.

Our solution was a mathematical blend of 1000mm and 500mm ground beams. By strategically alternating these two lengths. This hybrid approach ensured that the 8-meter curve remained smooth enough for the most sensitive cinema lenses while providing a rock-solid foundation for the weight above.

The Outdoor 40-Meter Full-Span Trial

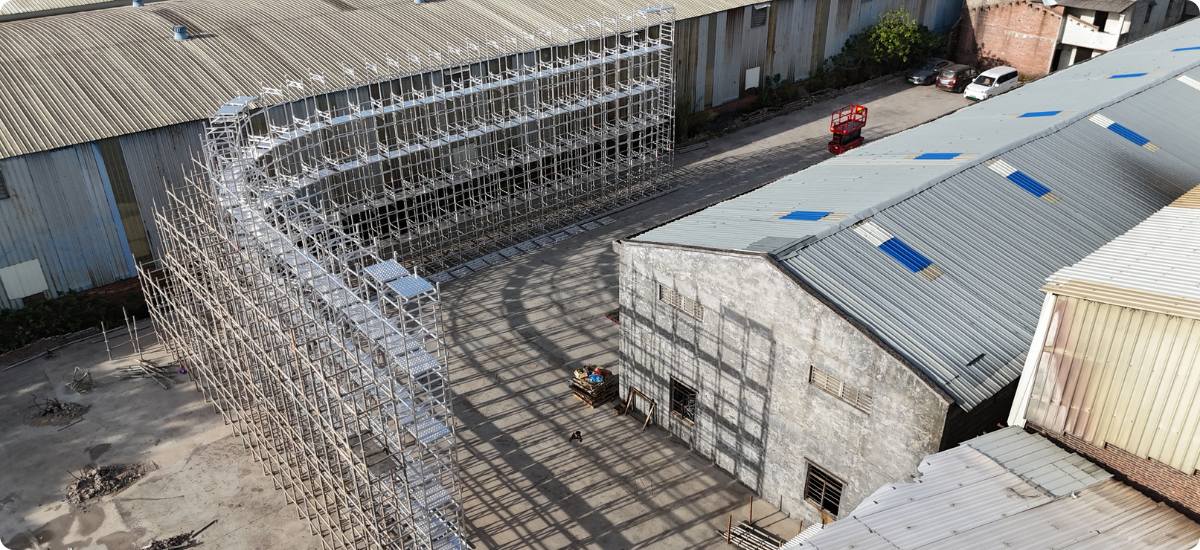

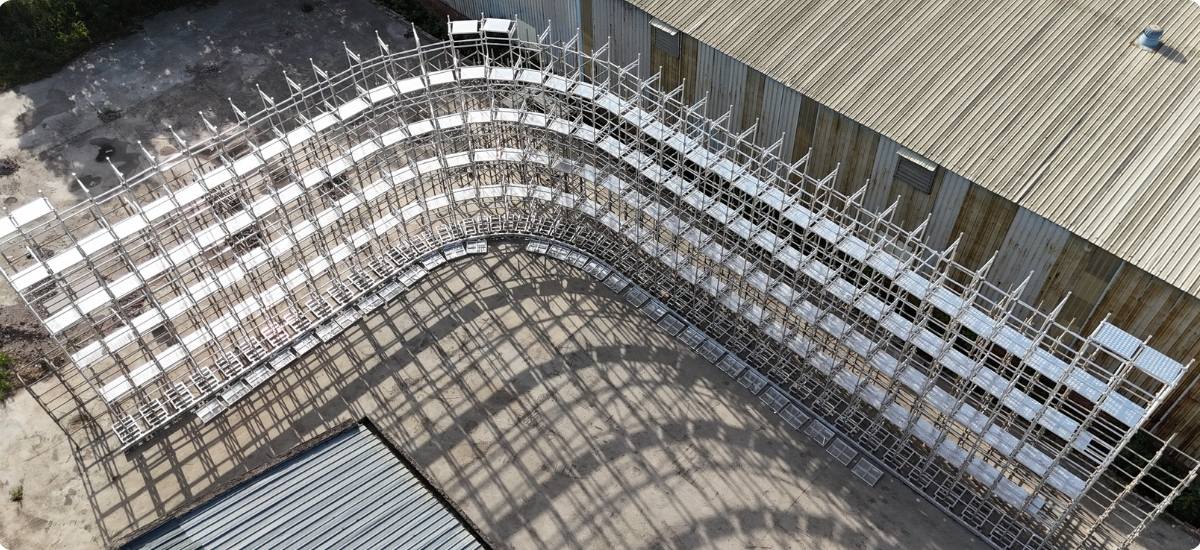

To meet the customer's requirements for absolute pre-verification, we conducted a full-scale trial assembly before shipping. We set up the entire 40-meter LED wall ground support in an outdoor setting for a period of two weeks.

The purpose of this outdoor assembly was to witness the LED wall ground support’s performance at its full length. We zeroed in on that 8-meter central arc and how it hooks up with the 13-meter and 19-meter straight parts, checking every single bolt hole and joint to ensure it all lined up just right.

By assembling the whole structure, we were able to verify the rhythm of the build and confirm that the H-beam connectors aligned perfectly with the intended column spacing. Resolving these minor alignment issues saved what would have been days of troubleshooting at the customer’s studio.

Smart Packing Strategy

Packaging a 40-meter LED wall ground support system is a complex task. To prevent on-site delays, we developed a packing strategy based entirely on the customer’s scheduled assembly sequence.

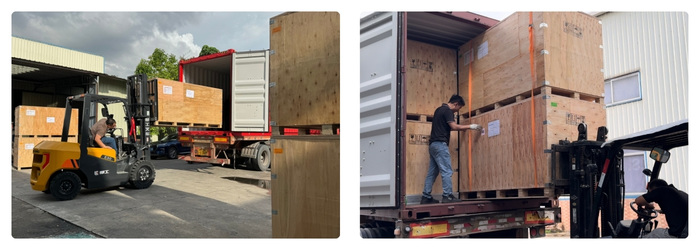

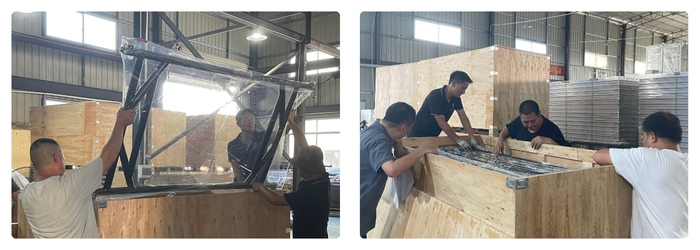

The entire structure was disassembled and categorized into 90 heavy-duty wooden cases. Instead of packing by part type (e.g., all screws in one box), we packed by installation phase.

With this time-indexed packing, the studio needed the contents of each case right away when it arrived. This got rid of the need for a big storage area and stopped the chaos of looking through 90 cases for a single missing part. By coordinating our logistics with the rhythm of the site crew, we made sure that the installation of the 40-meter LED wall ground support was as quick as possible.

At GF-Truss, we believe the best engineering is invisible. When a 12,800 kg, 40-meter-long LED wall feels like a natural part of the building, we know we’ve done our job.
