Ground Support Solution for Curved and Wavy OLED Screen Walls

Practical Solutions to Meet the Growing Market Demand

As flexible OLED screens gain popularity in exhibitions and commercial display environments, designers are increasingly looking beyond flat screen walls. Curved and wavy OLED display screens have become the preferred way to create immersive visual effects. However, despite the rapid development of screen technology, the support system for these applications is still limited.

In many cases, creativity is not limited by the screen itself, but by the lack of practical and reliable support solutions. GF-Truss's OLED panel ground support was born.

When Standard LED Wall Support Systems Are No Longer Enough

At present, there are very few LED wall support systems on the market specially designed for OLED screen walls. Most existing LED screen ground support systems are designed for straight layouts or simple curved LED wall support, so they are not suitable for continuous wavy designs. The ground support structure is more challenging. Many venues are not allowed to be suspended or have strict restrictions on load-bearing, while traditional LED wall ground supports are usually large in volume, take up space and have more restrictions. For OLED display walls, there is an obvious gap between the design idea and the actual construction.

Engineering Ideas: Experience Precedes Concepts

When carrying out this products, GF-Truss clearly takes actual use as the core starting point. Our starting point is not the sketch, but the practical experience of a large number of LED wall ground support solutions accumulated over the years under various customized needs.

Instead of developing a new system from scratch, it is better to adjust the mature LED wall support structural principle to meet the specific needs of OLED screens. The core goal is to achieve a balance between modelling freedom, structural stability and on-site operability.

Critical Structural Decision-making

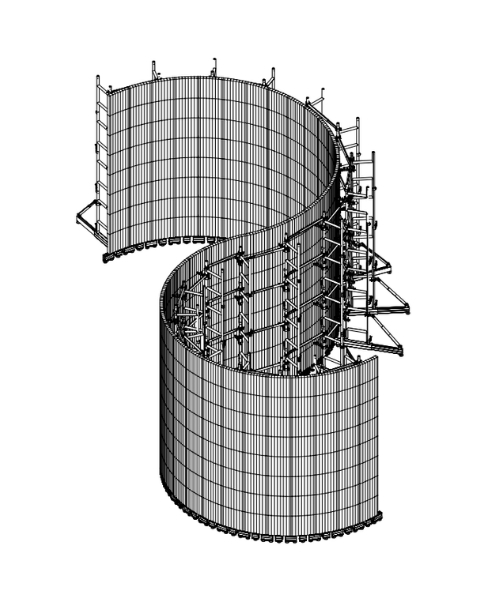

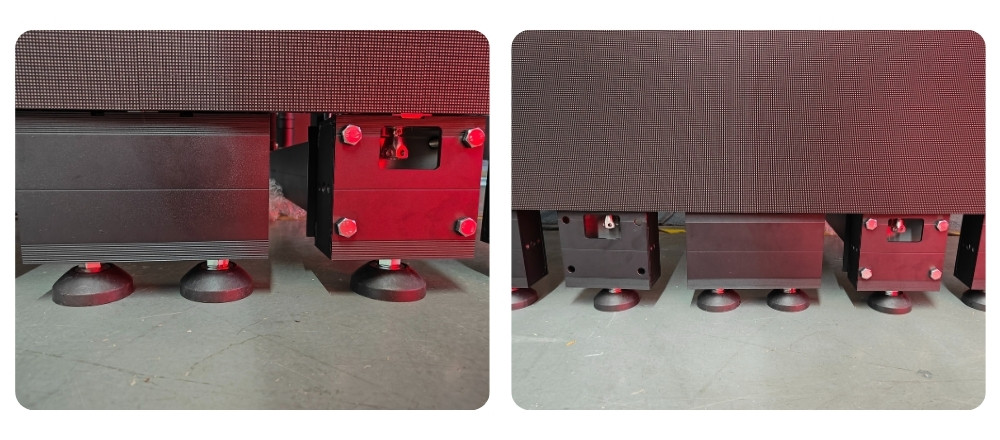

The first challenge is the flexibility of the ground layout. The system abandons the traditional overall ground beam and adopts a split beam scheme, which is divided into two large and small beams from a single ground beam. This allows the support structure to be adjusted more freely, and it is easier to follow the geometric shapes of curved surfaces and wavy screens without making compromises on visual design. The core structure is mainly based on GF-Truss mature curved LED wall ground support. Unlike the common large-area bases on the market, our flexible screen bracket significantly reduces the footprint and lowers the limitation that OLED screen panels are difficult to shape flexibly.

The system is composed of ground beams, adjustable bases, ladder trusses, telescopic crossbars, telescopic diagonal brace and quick locks/screw locks. The telescopic crossbar is firmly connected to the adjacent ladder trusses, making the screen wall structure a unified whole. The telescopic diagonal brace is combined with the adjustable base and ladder truss to form a stable triangular load-bearing structure. This configuration is more stable when supporting complex LED screen shapes.

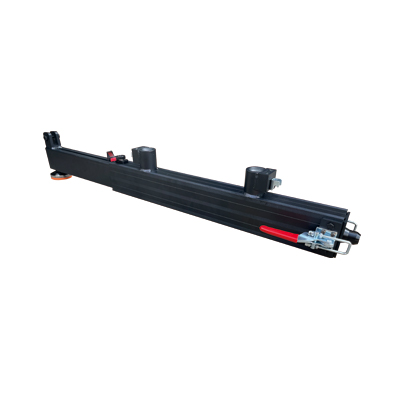

Adjustable Base	Ground Beam	Ladder Truss

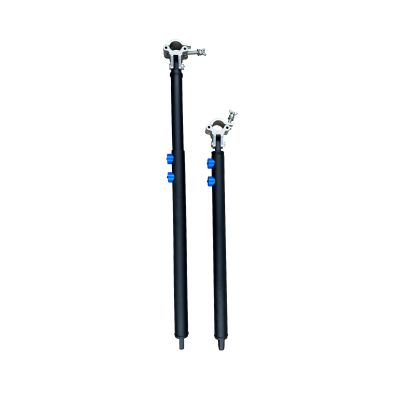

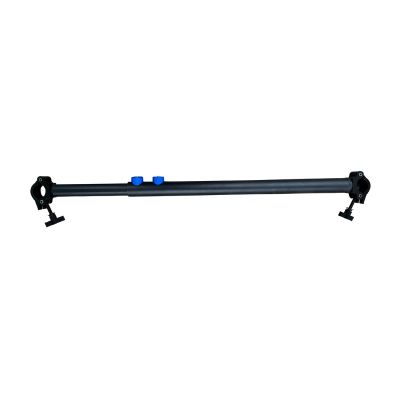

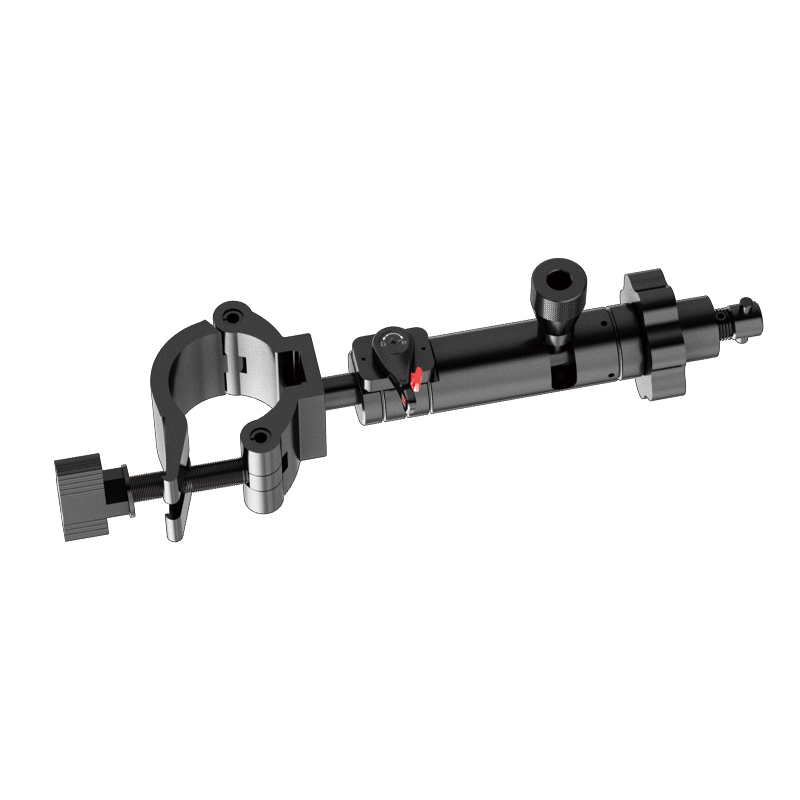

Telescopic Crossbar	Quick Lock	Diagonal Brace

From Design to On-site LED Wall Support Execution

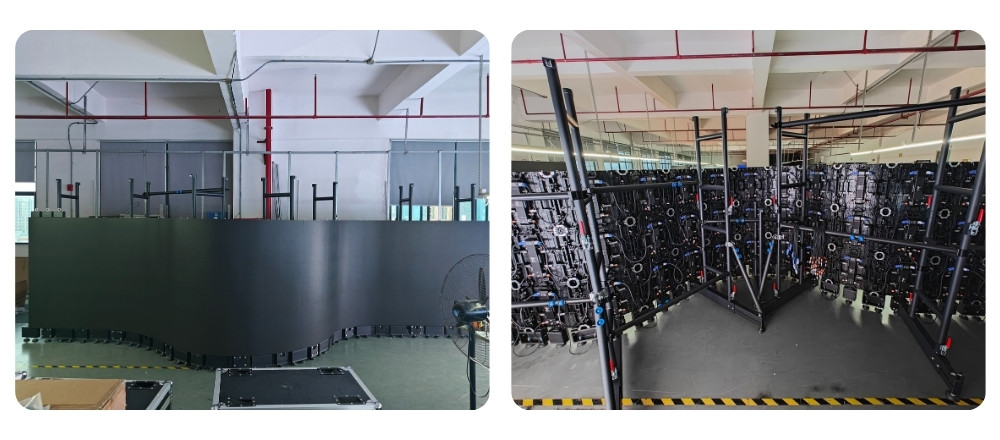

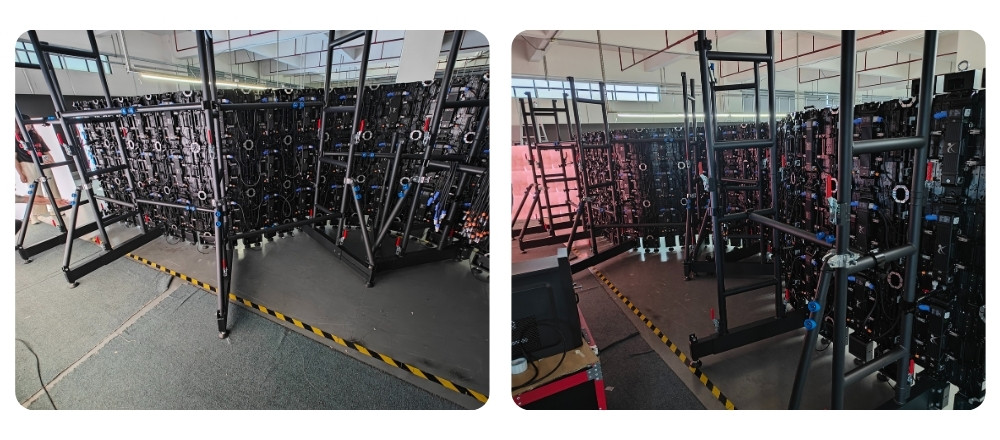

Our set of OLED ground supports fully considers the on-site installation conditions when designing. The modular design is convenient for transportation and quick assembly. During installations, the structure can be accurately adjusted according to the required curvature of the screen. The compact ground space is particularly favourable in the exhibition environment, especially in the case of limited space and tight installation time. The final effect is that our ground-supported OLED screen wall remains stable, safe and visually accurate during operation.

Verification advantages in practical applications

Our LED wall bracket product line has covered straight LED wall ground support, off-ground LED wall ground support, curved LED wall ground support, off-ground curved LED wall ground support, and LED panel hanging beam, etc. These mature products provide a solid engineering foundation for more complex applications.

By expanding and improving these mature systems, GF-Truss can support curved and wavy OLED screen support while maintaining structural reliability and installation efficiency. Avoiding oversized bases and one-time customized processing makes our solutions more practical, repeatable and scalable in actual projects.

Practical Engineering Solutions

For GF-Truss, the design embodies our core belief: a reliable structure comes from experience, mature schemes, and an in-depth understanding of how the system works in practical use. This concept enables us to turn creative concepts into reality under the premise of prioritizing safety, stability, and efficiency.
