Extended Base LED Ground Support Solution for High Screen Walls

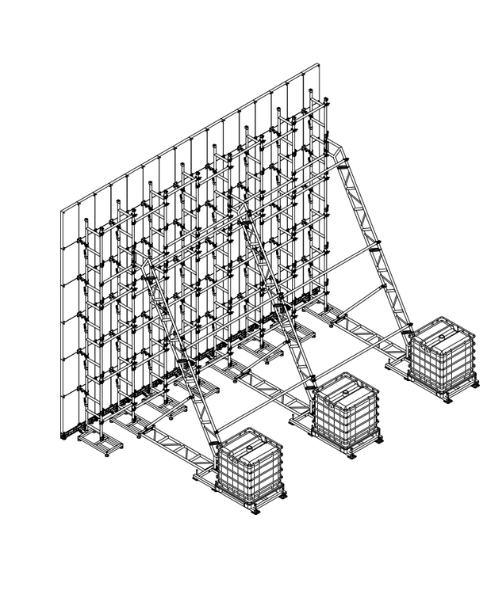

What is An Enlarged Base LED Ground Support?

The enlarged base LED wall ground support is an enhanced ground installation system developed for the needs of large-sized, high-height LED screen ground support installation. Compared with the traditional base structure, the system adopts a widened and lengthened base design,  reinforced bracing support and modular component structure. It provides higher stability, safety and on-site construction convenience for large screens with a height of more than 6m.

This solution is especially suitable for installation conditions with requirements for stability and safety, such as large-scale outdoor stages, sports main screens, and commercial display screens.

Why Needs a New Ground Support Solution for High LED Screens?

The screen itself is no longer a limiting factor, but structural support has become the key to the success or failure of the project. Especially in the ground installation, when the screen height exceeds 6m, the industry will generally encounter the following types of structural problems:

1. Structural Safety Pressure Brought by the High Screen Wall

The higher the height of the screen, the greater the bending moment and lateral force the structure bears. In outdoor or semi-open environments, wind load becomes a variable that cannot be ignored. Once the stability of the support structure is insufficient, there will be structural shaking in mild cases, affecting the LED display effect. There are obvious safety hazards in severe cases.

2. Limitations of Traditional Ground Support

Conventional ground support are mostly based on small and medium-sized screen designs. The base size is limited, which reduces the effective load-bearing area. For high LED screen applications, stability is often increased by adding temporary counterweights. However, the restricted base footprint limits their effectiveness against overturning.

3. The Counterweight Lacks A Unified Standard

Many customers can only temporarily place counterweights according to the on-site situation. Where and how much to put are often judged by their experience. Due to the lack of clear structural logic, the counterweight effect is difficult to guarantee, and the structural stability cannot be evaluated in advance. This method not only increases the on-site adjustment time, but also makes it difficult to form a safe and reusable installation scheme.

Therefore, it is increasingly difficult for the traditional scheme to meet the actual needs of high-screen projects in terms of stability, construction efficiency and safety protection. It is against this background that the market needs a support solution specially designed for high-screen ground installation, with clear structure and controllable performance.

It is against this industry background that the market urgently needs a support solution specially designed for high-screen ground installation, with clear structural logic and controllable stability.

How Do We Give A Solution?

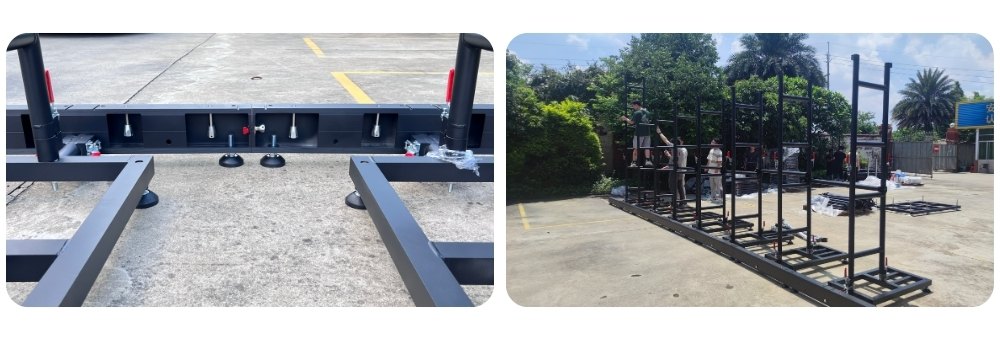

1. Enlarge the Base

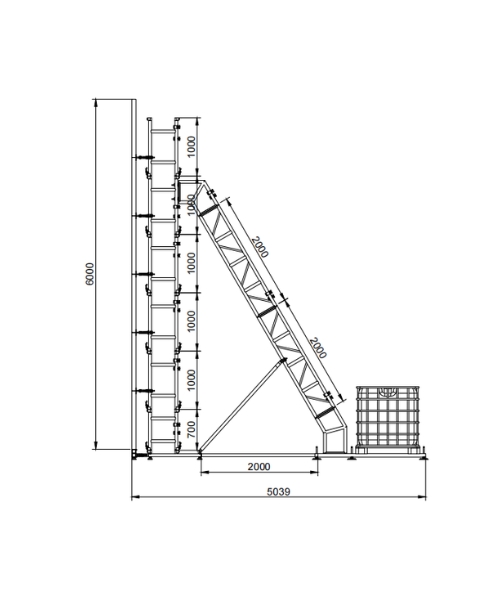

In the ground installation scenario of high-altitude LED display, the base structure is the key basis for determining the overall safety.

Through the extension of the length and width of the base, the effective force area at the bottom of the structure is significantly increased, making the overall centre of gravity distribution more stable. When bearing the self-weight, wind load and other external forces of the screen, the base can provide stronger reaction support, thus effectively reducing the risk of overturning the high-screen structure under lateral force.

At the same time, the enlarged base design provides a clear layout basis for the on-site counterweight scheme. Compared with the traditional way of limiting the base space and stacking the counterweight at will, this LED wall ground support can reasonably place the water tank or other large counterweights according to the project height, screen size and environmental conditions, so that the position of the counterweight is consistent with the structural force path.

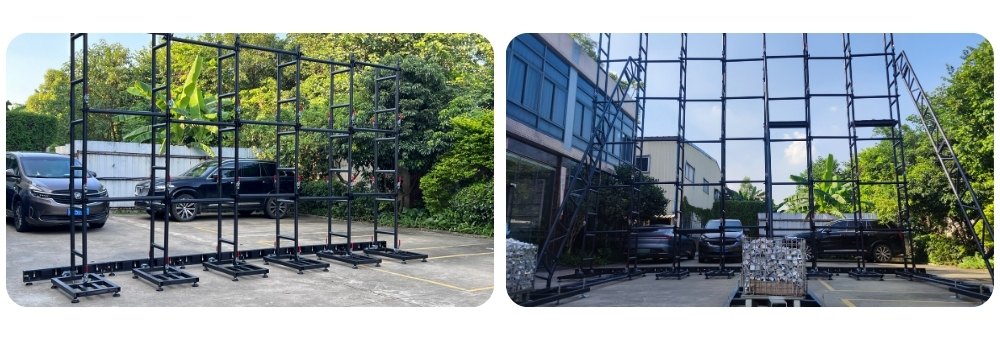

2. Upgrade and Optimization Based on Mature LED Wall Ground Support System

The enlarged base LED wall ground support is not developed from scratch, but structural upgrade and performance optimization on the basis of GF-Truss's mature LED wall ground support system.

Relying on GF-Truss's experience in the design and manufacture of aluminum alloy trusses, the enlarged base LED wall system has further integrated the ladder truss support of higher strength and consistency on the basis of the original mature structure. In the structural strengthening part, the system adopts ladder trusses as the main supporting component to form a stable force-bearing system with the main LED wall bracket.

In the actual installation, the ladder trusses can form a stable and accurate connection relationship with the main structure, ensuring that the overall structure is clearly subjected to force and the deformation is controllable.

By combining the mature LED wall ground support system with the advantages of aluminum truss, it significantly improves the stability and safety redundancy of the system under high-altitude applications while maintaining the original installation method and construction habits.

Practical Application Effect

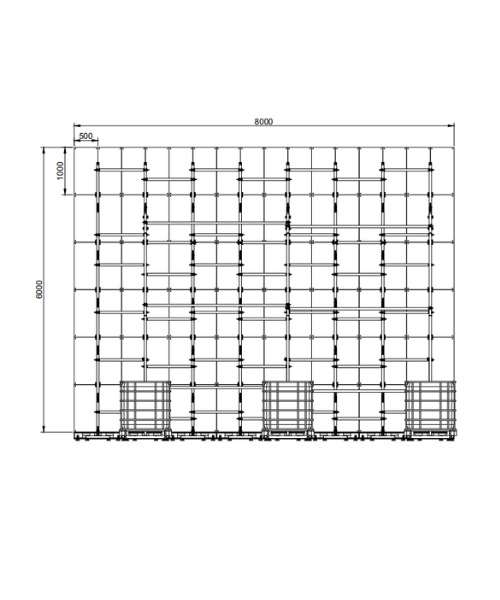

1. Construction Efficiency and Reusable

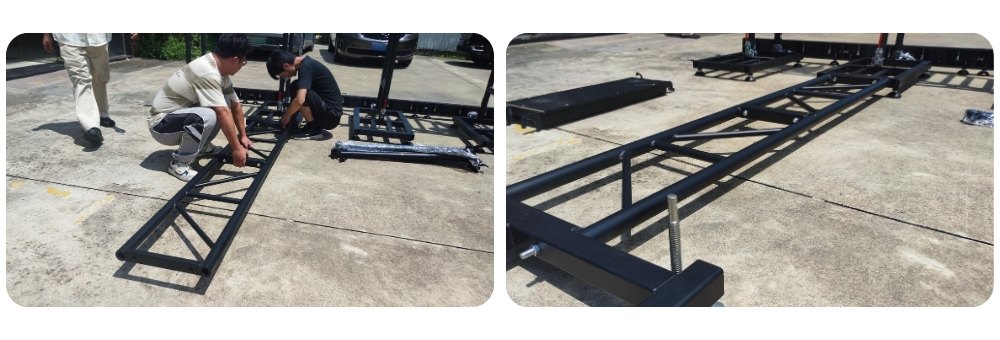

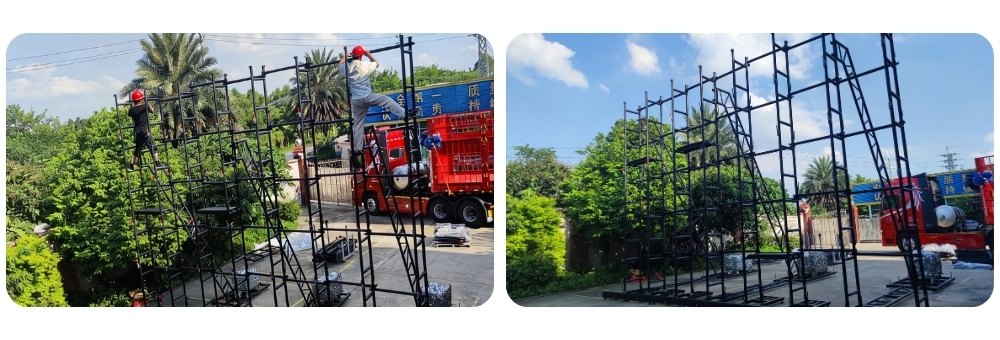

4-5 people can complete the installation of a 6-meter-high LED screen wall support in 3-4 hours, saving about 25%~30% of construction time than the other solutions. The standardized interface, bolt and quick lock design allow the module to be quickly disassembled and installed in different venues without additional tools or special construction equipment, which is very suitable for temporary events or touring. At the same time, the modular design supports multiple repeated installations. It can be disassembled and installed 10 to 20 times under normal use conditions to maintain structural integrity, which reduces the cost of long-term use.

2. Secure Redundancy Design

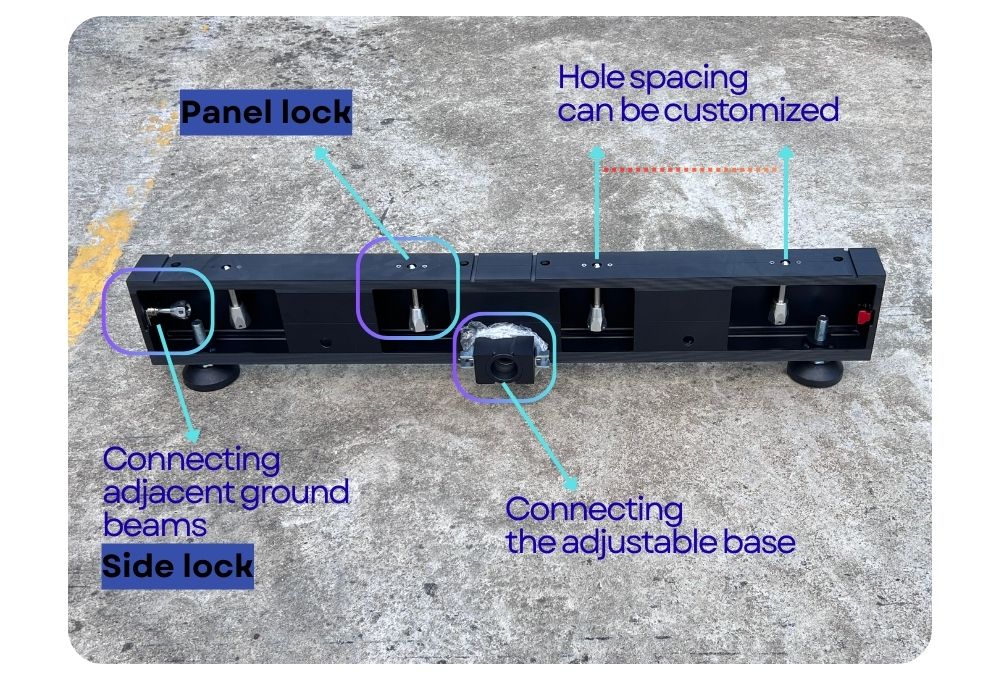

Each set of enlarged base LED wall ground support adopts a multi-point safety connection design, including multi-bolt fixing of the enlarged base and the adjustable base of the LED wall ground support, secondary reinforcement of oblique support and systematic counterweight schemes to form a redundant force system. Even if some bolts or modules are subjected to abnormal load, the overall structure remains stable. The screen will not cause dangerous overturning. This can greatly improve the confidence of construction parties and customers in structural safety.

Bring A More Secure Ground Support Solution for High-screen Installation

Starting from the actual use scenario, the enlarged base LED wall ground support system focuses on solving the problem that the high screen is easy to be unstable and complicated when installed on the ground. Through the combination design of a larger base and a strong ladder trusses support, the whole system is more intuitive and easy to understand during the construction process. It is easier to complete the installation step by step. Whether in large-scale stages, sports events or commercial displays, this system can help you complete the high-screen construction more easily, making the installation process and the results of use more secure and reliable.
