The Ballast System Enlarged Base LED Video Wall Ground Support is specially designed for large-scale LED displays. It maintains a stable structure while enhancing load-bearing capacity and safety performance. In addition to the adjustable base and ground beams, it features aluminum ladder trusses and enlarged bases, which provide a larger base area for stability.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
8×6mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×1000mmProduct Introduction

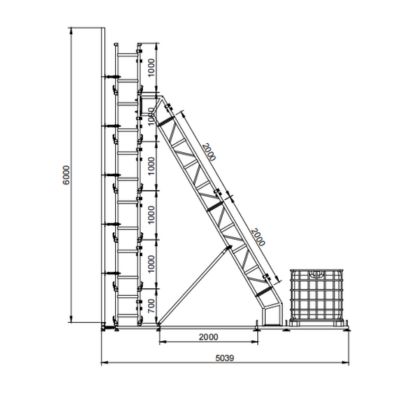

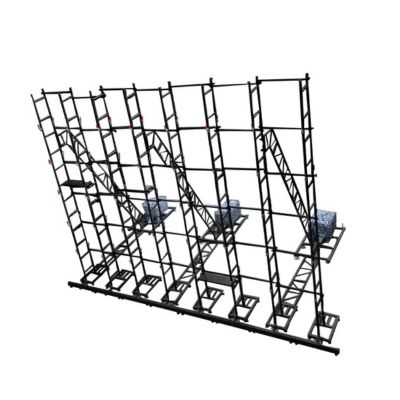

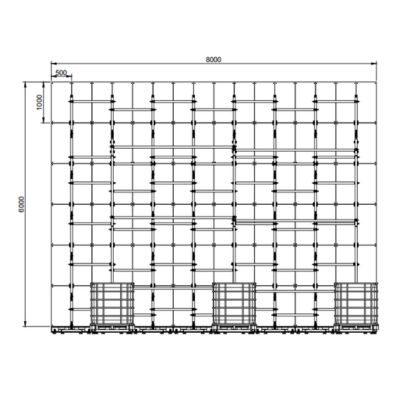

Ballast System Enlarged Base LED Video Wall Ground Support 8*6m
This 8x6m Ballast System LED Video Wall Ground Support is designed to meet the higher demands of LED displays in large-scale events. The entire LED screen bracket has been enhanced compared to common LED screen ground supports. We use high-strength aluminum alloy to ensure that the overall weight is light while maintaining excellent load-bearing capacity. It remains sturdy even in challenging outdoor environments or high wind conditions.
Product List
| Structure List: 8x6m Ballast System LED Video Wall Ground Support(500X1000mm) | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
8/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
8/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*700mm |
8/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
40/pcs | ||
| 4 | Crossbar | Material: aluminum alloy Length: 1m/pc Measure: 50*50*1000mm |
42/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
40/pcs |
| 6 | Footboard | Material: aluminum alloy + 9mm plywood Measure: 380*85*1000 |
7/pcs |
*This list does not include products such as enlarged bases, ballasts, or 400mm ladder trusses. For a complete product list, please contact us.
Key Components
 |
Ground Beam: Unlike most on the market, our ground beam features a set of special cabinet locks. They’re simple to use but create a powerful connection, firmly locking cabinets into place to prevent any loosening or movement. This not only makes installation faster and safer but also improves the stability of the entire structure. |
|
Adjustable Base: The ground base of your LED display system is the most important part. A solid, high-quality ground base does more than just hold weight. It is designed to handle rough surfaces and keep your screen perfectly balanced. Whether you are setting up for an indoor trade show or a large outdoor event, a sturdy can guarantee your entire display is safe and secure. |
 |
 |
Ladder Truss: The ladder truss is a core part of the LED Wall Ground Support. It provides strong vertical support for the adjustable base below and connects firmly to each cabinet using either a quick lock or screw lock. This dual support system prevents sideways movement, keeping your whole wall stable. |
|
Quick Lock: Our patented quick lock is specifically designed for connecting LED display cabinets with precision and reliability. Instead of relying on traditional screw connections that slow you down and require extra tools, this clever mechanism allows you to fix cabinets in just seconds. All it takes is a simple align, press, and lock. |
|
 |
Screw Lock: A screw lock is a common way to lock the cabinet of an LED video display system, especially when your cabinets or frames don't have quick-lock holes. You just need to line up the holes on four nearby cabinets and tighten the screw to get a secure connection. It is simple to use, affordable, and one of the most reliable options for traditional setups. |
|
Crossbar: The crossbars are set between the ladder trusses to add strength and stability to the entire LED Video Wall System. It attaches with clamps on each end, which keep the structure from shaking or shifting during events. Made from high-grade aluminum alloy, the crossbars are built to last and will stay stable even with long-term use and frequent assembly. |
 |
 |
Footboard: The footboard installs between the ladder trusses, giving installers a safe and stable platform to work on. It's used to provide support when you need to install or adjust screens at height. This is an optional part, so you can decide whether to use it or not based on your needs. |
|

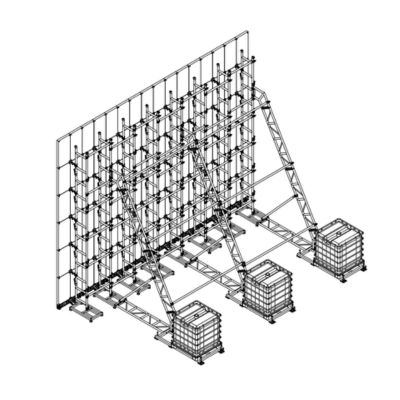

Weight: The counterweight is placed on the adjustable base to improve stability and prevent the screen from tipping forward. You can choose to purchase it or not according to your needs. |
 |
GF-Truss' Solution
Stop the Tipping: GF-Truss's Solutions for a Large LED Video Wall Display System
Building a spectacular LED video wall is only half the job, while making sure it's safe is the other, and it's just as important. We have received many concerns about stability and tipping. That is absolutely a serious question. These are some of the solutions GF-Truss tries to offer.
GF-Truss fully understanding the risks. The main dangers are forward tipping due to wind, an uneven floor, or accidental bumps. That’s why a secure base is non-negotiable. Our LED Screen Ground Support is engineered to handle these real challenges, giving you a solid foundation for your display.
We know every setup is different. That’s why GF-Truss offers flexible solutions for maximum safety. In addition to using a ballast, you have options like:
Although our ground base is engineered for strength, a proper safety plan is what makes a setup truly secure. The integrity of your entire LED wall structure depends on taking every precaution, from placing ballasts to using steel cables or even bolting the base into concrete. When you take these final, crucial steps, you gain the confidence that your display will remain safe and secure, no matter the environment.
