OLED Wall Panel Ground & Hanging Support

Product Introduction

OLED Wall Panel Ground & Hanging Support

Our OLED panel wall ground and hanging support is designed to make display installation easier, steadier, and more efficient. This support is made from high-quality die-cast aluminum, giving it a lightweight feel while remaining strong enough for everyday stacking and overhead hanging. This OLED Wall Support Solution is recommended for events, exhibitions, retail displays, and fixed installations.

Fabrication Feature

Die-cast Aluminum provides our OLED Panel Wall Stacking & Hanging Support with a user-friendly installation. The aluminum frame hence provides better strength and rigidity which prevents permanent deformation of the frame during shipping, setup, and future servicing. A more durable frame will also ensure that the display is flat, less distorted, and has greater contrast across panels.

1. Perfectly Fitting for A Flatter and a Cleaner Screen

Die cast aluminum supports very precise molding in such a way that the ground/hanging beams can be installed with high precision to the OLED or LED panels. This makes the gaps smaller, smoothens the surface of the screen and stabilizes it especially in large screen display walls.

2. Resilient yet Light Weight for Easier Handling

Die-cast aluminum is not only light in weight but also strong. It is able to hold the supporting panels during stacking or hanging without bending or deforming and installing the panels becomes easier and safer.

3. A More Detailed and Integrated Design

Die-casting facilitates more precise automatic installations. Mounting ribs, wire channels and other elements are installed immediately in the beams. Thus, installation is simpler, neater and quicker and with fewer tools.

Key Components

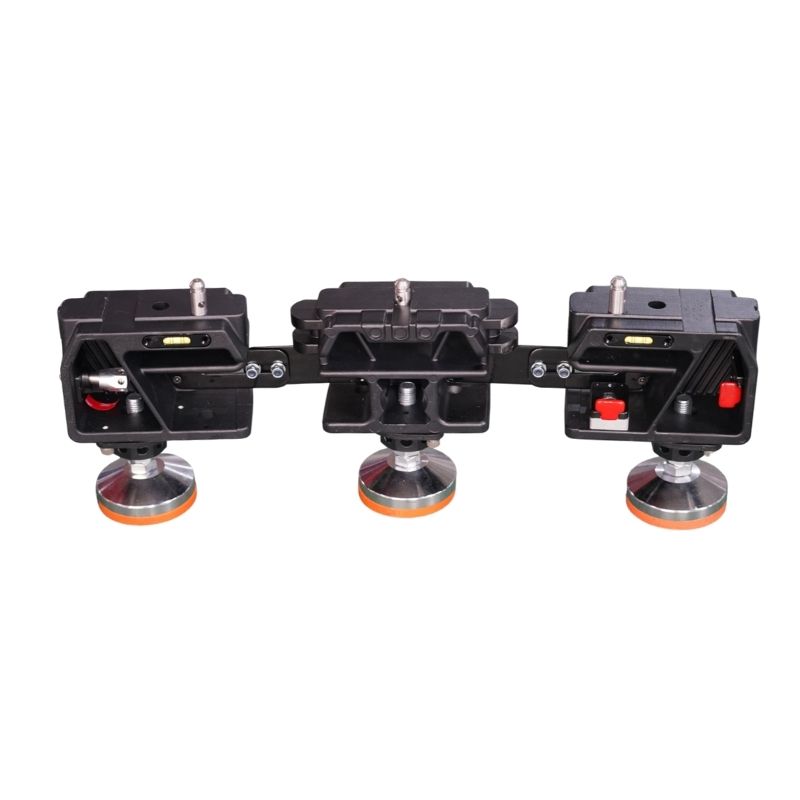

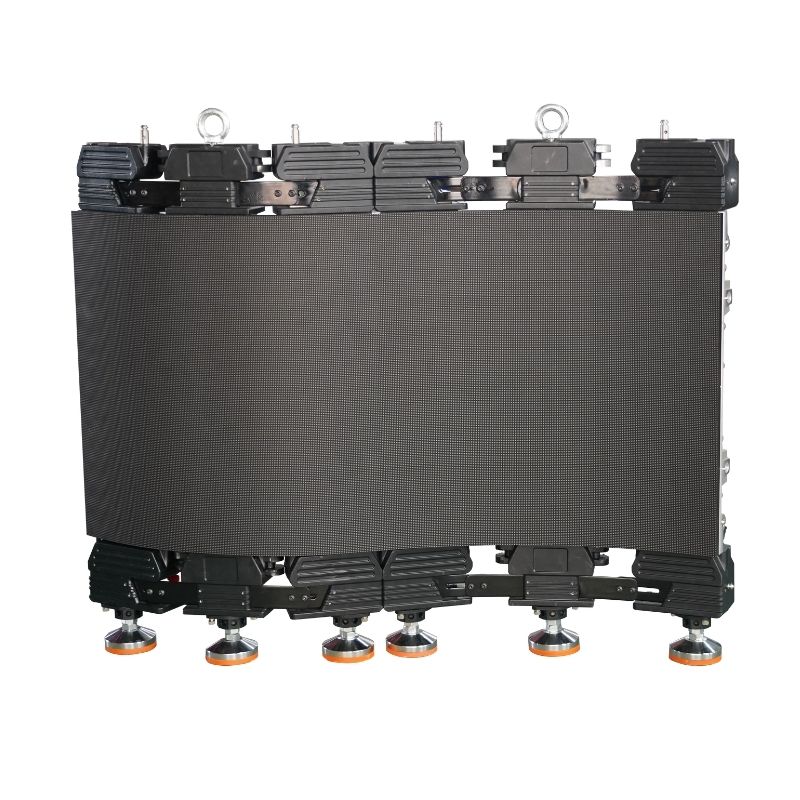

	Ground Beam (for OLED Panels): This newly launched ground beam is designed for OLED cabinets, offering a stretchable and adaptive design. It conforms effortlessly to the panel's curved or creative shapes, delivering stable support for arcs, waves, and other custom configurations. Once the panel is set onto the beam, it locks into place automatically, with no extra steps required.
Adjustable Base: The newly designed base comes in an elongated design. It provides stronger support for creative display arrangements. Curved, angled, or other unique configurations can be assembled with ease. The base is also upgraded with a gear lock system. It makes setup faster and reduces reliance on extra tools.
	Ladder Truss: The ladder truss is designed with high-strength aluminum alloy round tubes. It connects to the cabinets enclosure using quick locks or screw locks. Ladder trusses of varying lengths can be used to accommodate different screen sizes.

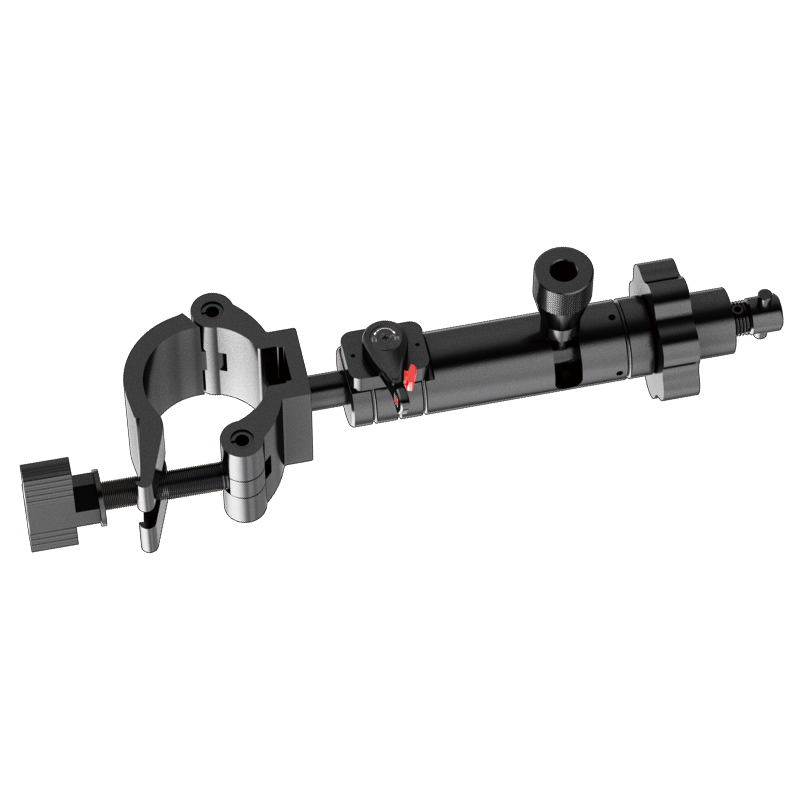

Quick Lock: The telescopic range of quick lock is 280–340mm, allowing the lock body to be adjusted according to the distance between the panel and the ladder truss. The front of the lock has been upgraded with a plum-hex-shaped grips knob, providing a larger area for operation and making it easier to secure the panel.

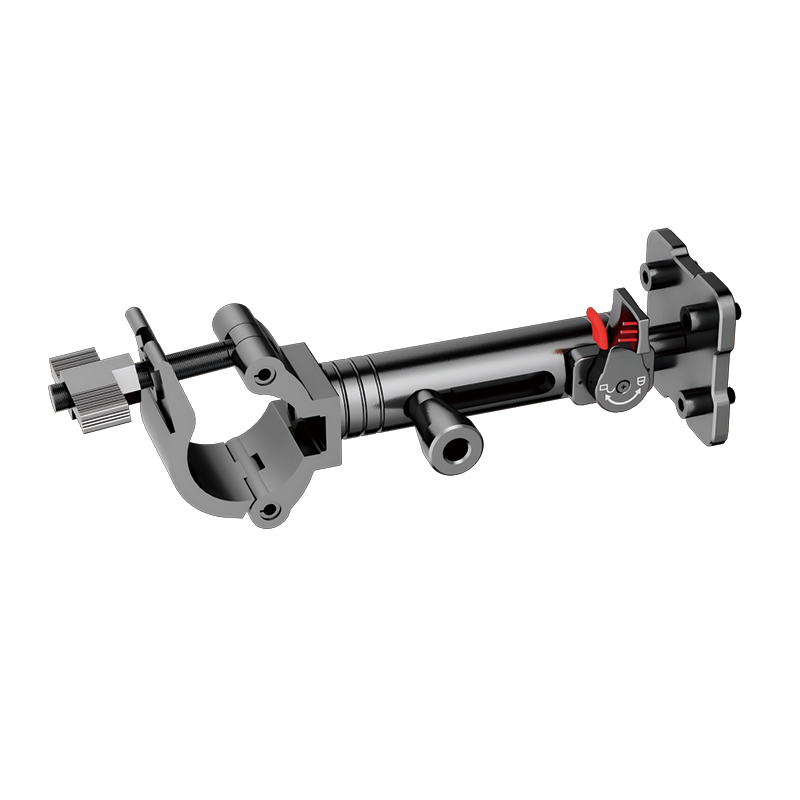

	Screw Lock: The screw lock is the most classic and reliable way to secure a straight display stand. This traditional method is known for being sturdy, stable, and very safe, making sure a large display won't budge in any situation. It's especially perfct for long-term displays.
Crossbar: The crossbar connects the ladder trusses, which helps reduce movement and keeps the structure strong. With this firm side connection, the force is spread evenly and focused, providing stable support for long-term use.

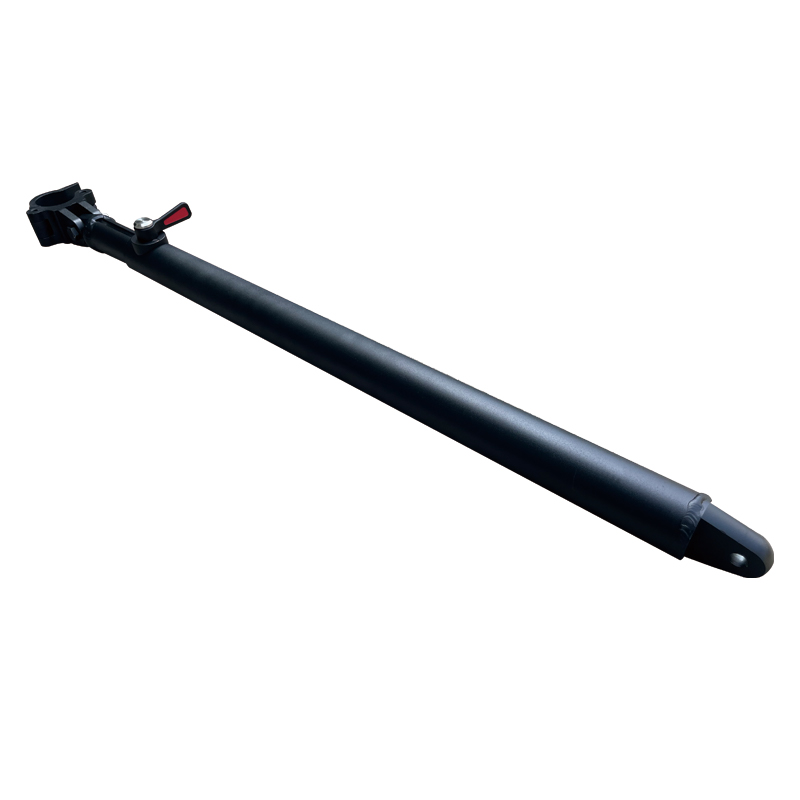

	Diagonal Brace: The diagonal brace connect the base and the ladder truss, forming a stable triangular support structure that greatly enhances overall stability and safety. The length can be adjusted to suit specific installation needs. The brace is also equipped with a gear lock mechanism, providing easy operation and secure locking to prevent loosening or shifting.
Footboard: To make it safer to operate at high places, the surface of the footboard has been covered with an anti-slip texture. It gives operators a steady place to stand when using with the ladder trusses, which makes installation faster and safer.

FAQ

1. What is an LED wall ground/hanging support system?

The LED wall ground/hanging Support System is a dual-use structural solution that combines both ground-mounted and hanging installation capabilities, allowing flexible selection of mounting methods based on your site requirements. In ground mode, the system forms a stable triangular structure using ground beams, ladder trusses, and diagonal braces. Ballast weights are available for installations which require support of large screen walls. The system in hanging mode converts into hanging beams to allow overhead installation applications.

A key advantage of this modular LED wall support is its exceptionally simple conversion process:

• To use it as a ground beam, simply remove the rings or clamps.
• To use it as a hanging beam, just remove the adjustable feet.

2. Can LED wall ground support systems handle curved, concave or convex screen configurations?

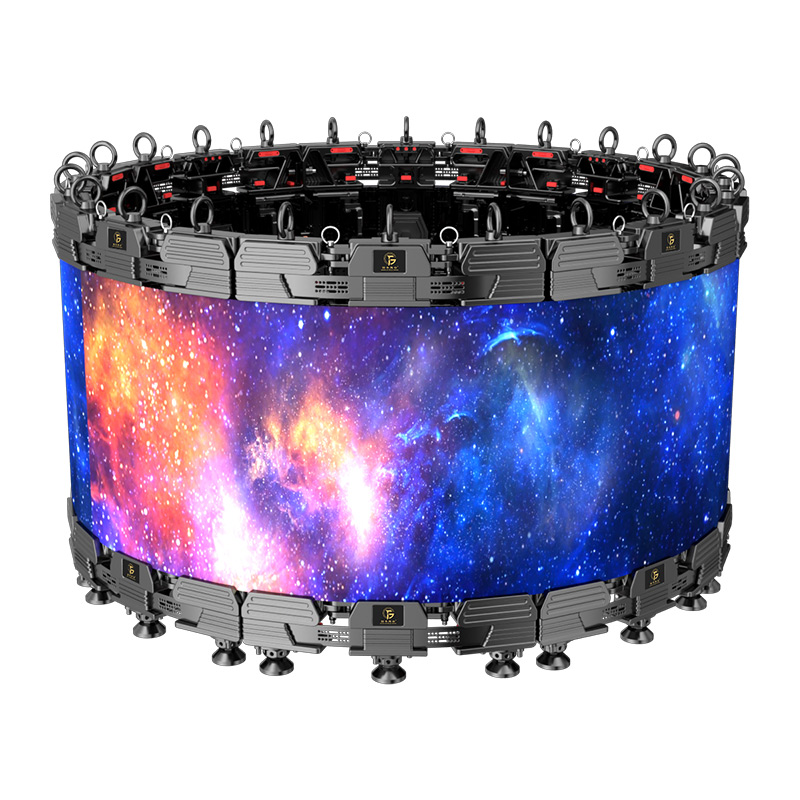

GF-Truss not only provides LED wall ground support for straight panels, but we have also developed matching ground beams/hanging beams specifically for curved and OLED panels. Our LED wall system employs a "one beam per panel" structural design, enabling independent angle control for each panel to create smoother, and more natural curvature transitions. Simply place the LED panel onto our ground beam or hanging beam, and the system automatically locks securely into place. Due to this highly flexible solution, GF-Truss's ground support and hanging systems not only support concave, convex, and circular configurations but also enable to make creative wave-shaped and wraparound LED walls.

3.  Is it possible to adjust the height and width of a LED wall ground support to match different venue requirements?

Our LED wall ground support system offers the flexibility of building blocks. Any component can be easily removed or relocated without additional tools whenever it is no longer needed. Each panel and ground beam can be flexibly adjusted to optimize the LED wall layout according to venue dimensions, aisle restrictions, or audience viewing angles. This means you can fine-tune the height and width of the screen to get the perfect setup for your event.
