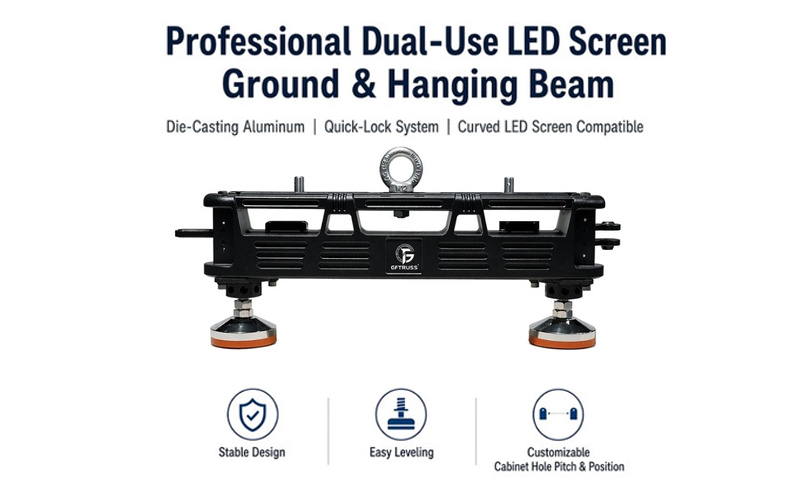

This Dual-use LED Screen Ground and Hanging Beam for Curved Displays is a die-cast aluminum beam for curved LED walls with 500x500 mm or 500x1000 mm cabinets. One beam for both stacking and hanging, with three interchangeable mounts: Clamp, M12 ring, or turnbuckle. Auto-lock locating pins ensure quick and accurate cabinet alignment, with no tools required. Leveling feet and an integrated spirit level keep walls true on uneven floors. Hole pitch and position are customizable.
Material :
Die-cast aluminumLocking System :
Bolted joints between adjacent beamsBuilding Shape :
Flat/CurvedCompatible Cabinet Size :
500*500mm/500*1000mmProduct Introduction
LED Screen Ground and Hanging Beam for Curved LED Displays
The All in One LED Screen Ground and Hanging Beam is designed for 500×500 mm and 500×1000 mm LED cabinets, supporting both stacking and hanging installations. Its die-cast aluminium construction provides strength with reduced weight, while auto-lock locating pins ensure accurate cabinet positioning. Adjustable leveling feet, integrated spirit levels and secure side locking connections help create a stable, aligned structure for flat or curved LED screen wall.
| Product Name | Dual-use LED Screen Ground and Hanging Beam |
| Material | Die Cast Aluminum Alloy |
| Working Modes | Ground leveling / Overhead hanging |
| Suitable to Cabinet | 500x500mm, 500x1000mm |
| Top Mount Options | Clamp / M12 Ring / Turnbuckle |
| Cabinet Mounting | Auto lock locating pins, tool free |
| Beam Connection | Bolted joints between adjacent beams |
| Leveling | Adjustable feet with non slip pads and integrated spirit level |
| Locking | Side shackle pin security locking |
| Customization | Cabinet hole pitch and position |
*This dual-use hanging and stacking beam is designed for 500x500 mm and 500x1000 mm LED cabinets only.

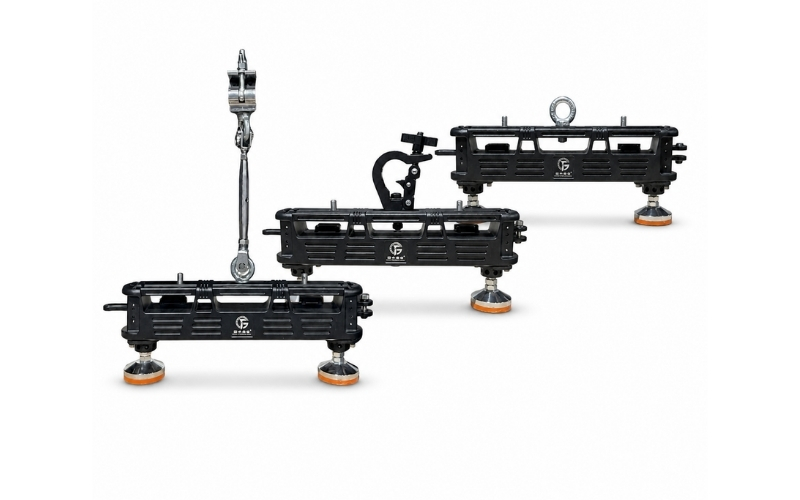

Three Interchangeable Mounts
| Mount | How it works | |
 |

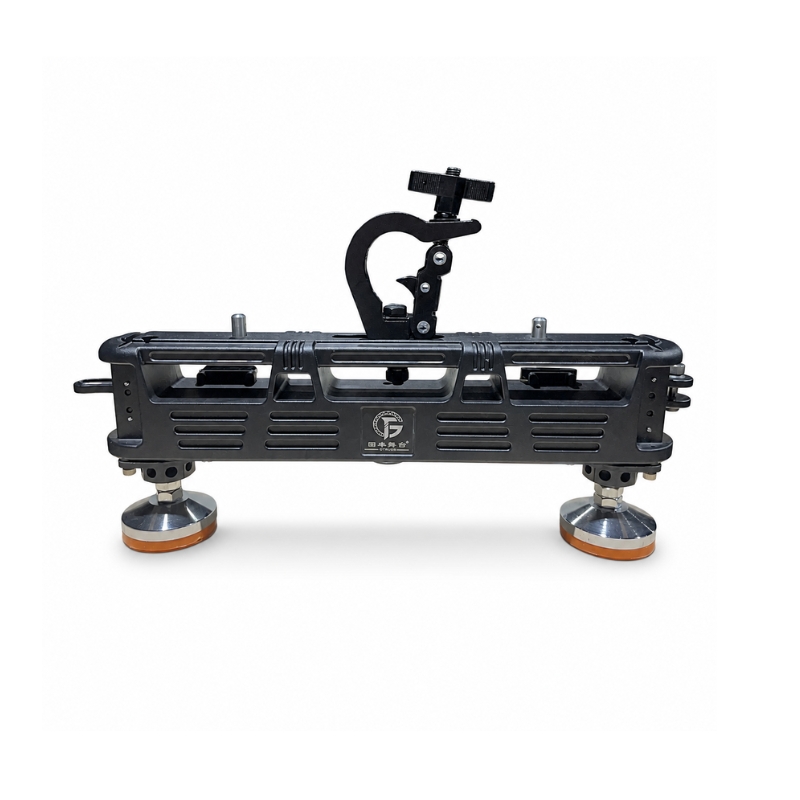

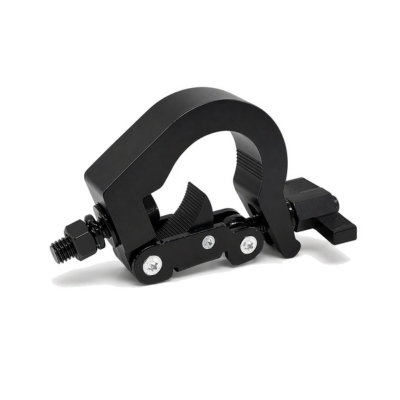

Clamp Mount | Can be mounted directly onto the truss chords. |
 |

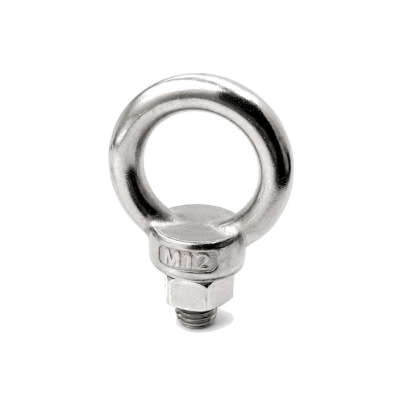

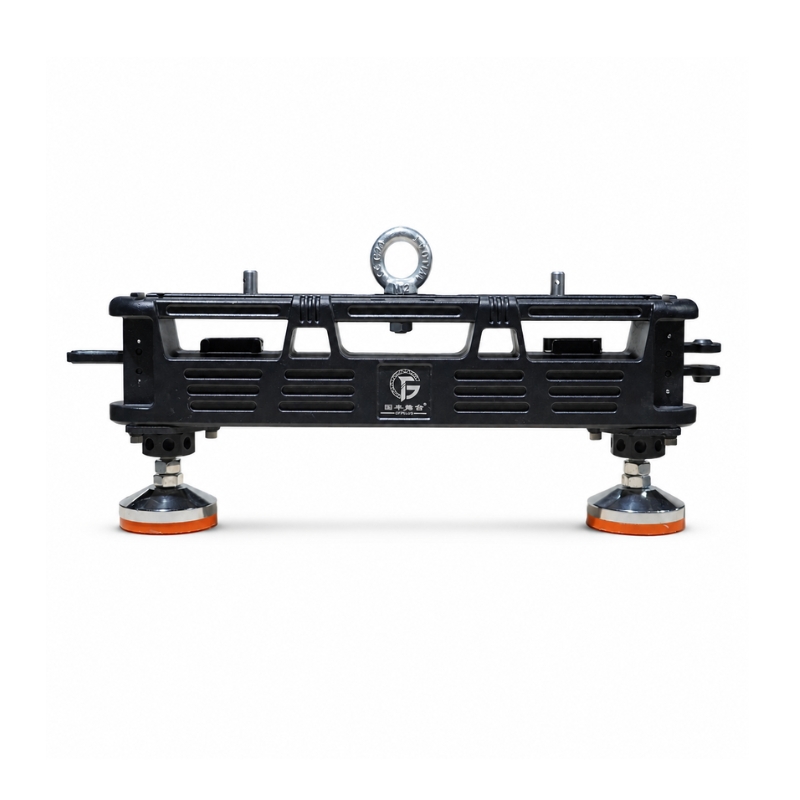

M12 Ring Mount | Used with slings for hanging. |
 |

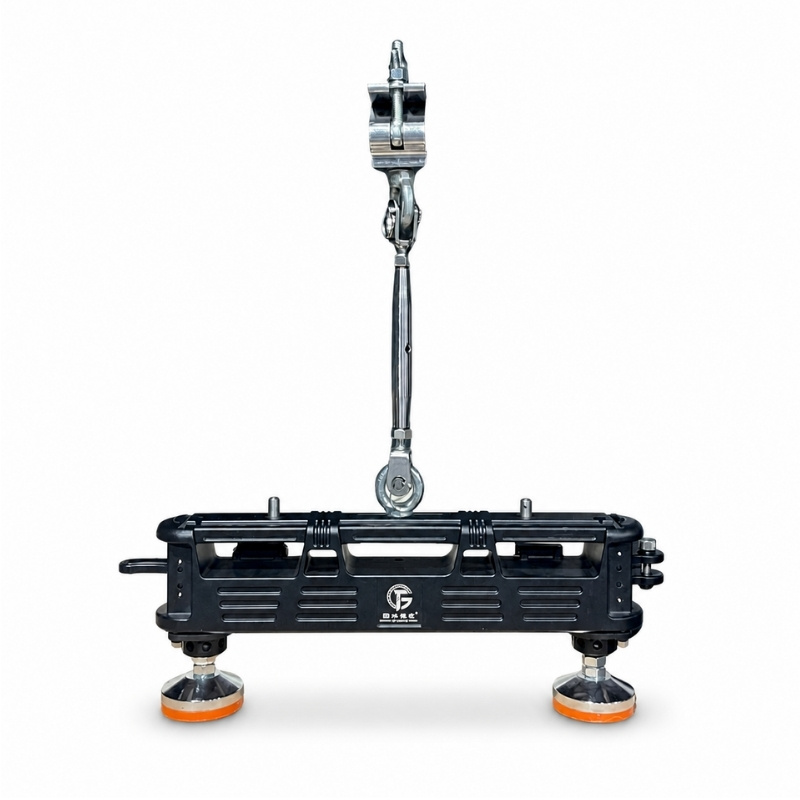

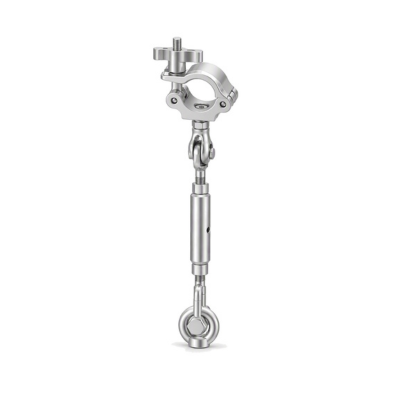

Turnbuckle Mount | Allows tension adjustment and can be mounted directly onto the truss chords. |

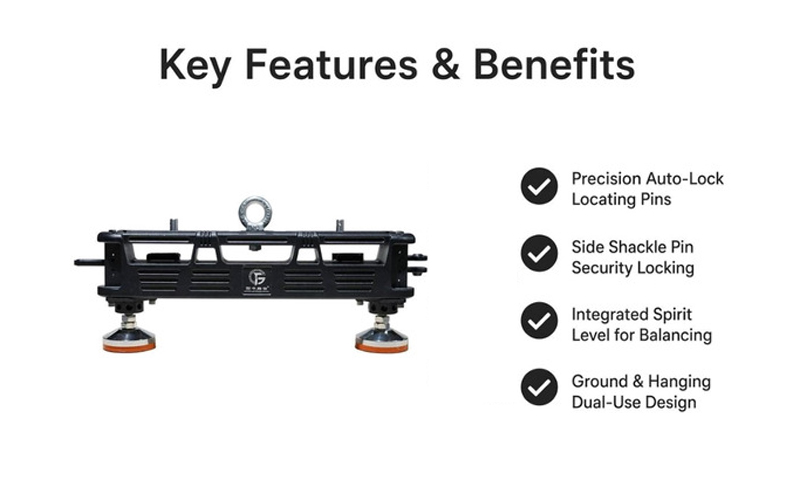

Key Features and Benefits
l Precision auto lock locating pins. Instant alignment, zero tools, zero measuring.
l Bolted beam connections. Rock solid joints between every section.
l Integrated spirit level for balancing. A true horizontal start line on every build.
l Stacking and hanging dual use design. One beam covers both working modes.
How It Works

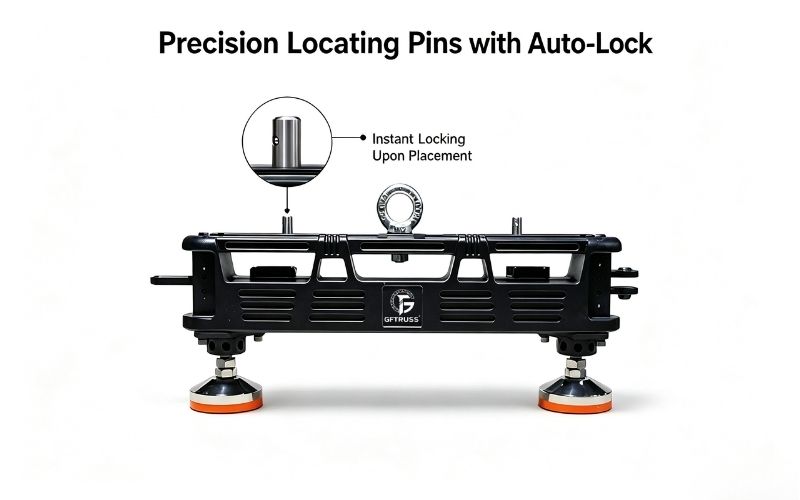

l Quick Assembly
Precision locating pins with auto lock are how the LED cabinet mounts onto the beam. Two locating pins sit on top of the beam, matching the holes of your LED cabinet. The cabinet is aligned automatically. This is what turns a full wall build into a fast and predictable process. The lock releases just as quickly, so reseting a layout takes minutes instead of hours.
l Beam Connection
Adjacent beams are connected with bolts at the joint plates on each end. The bolted connection holds the joint firm with no loose play, across straight or curved runs. Joints stay rigid through setup, teardown, loading, and touring. Every joint uses the same bolts, so the crew works with one tool and one motion across the whole build.
l Easy Leveling
Uneven floors are the first problem on any real site. Each end of the beam has a threaded leveling foot with a wide non slip pad. Turn the foot to raise or lower that end, and the integrated spirit level shows the moment the beam is perfectly horizontal. The non-slip pad protects the floor and holds the beam in place, so the LED wall stays stable through the whole show. Leveling takes seconds per beam, which keeps the crew moving down the line.
FAQ
Q: Which LED cabinets is this beam compatible with?
A: Designed for 500x500 mm and 500x1000 mm LED cabinets. The locating pins match the cabinet holes directly, no adapters needed.
Q: Do I need any tools to build the LED screen wall?
A: No tools are required for cabinet placement. The auto-lock locating pins engage automatically when each panel is positioned on the beam. Adjacent beams are connected with hand-tightened bolts, so no screwdriver or other tools are needed.
Q: Which top mount should I choose?
A: The clamp mount is suitable for direct truss mounting, the M12 ring can be used with hoisting equipment, and the turnbuckle allows tension adjustment depending on the rigging setup.
Q: Can I change the top mount later?
A: Yes. All three mounts swap onto the same base in seconds, so you can buy one beam and switch mounts when the project changes.
