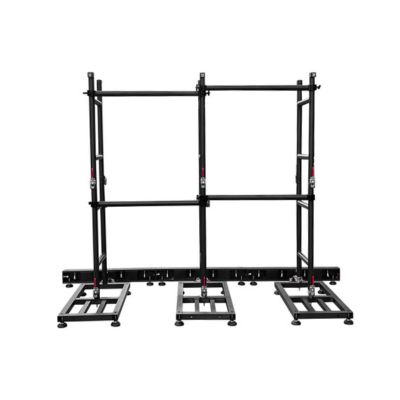

This LED Wall Ground Support with a size of 3 meters long and 2 meters high is built with a standard aluminum alloy truss 6061-T6. It is suitable for temporary construction needs of small LED screens, such as conference background screens, indoor displays or advertisements. It can be customized to fit different screen sizes and according to your needs. The bases support the installation of wheels for easy mobility, improving setup and dismantling efficiency.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
3×2mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×500mmProduct Introduction
Aluminum LED Wall Ground Support 3*2m

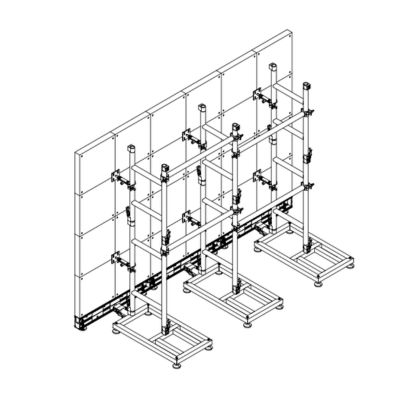

If you need to set up an LED Wall display in a small space and still want it to be stable, this 3×2m LED Wall Ground Support is an ideal choice. It’s ideal for limited spaces and situations where it needs to be moved or reassembled often. This LED Screen Bracket is lightweight while offering excellent stability.
Product List

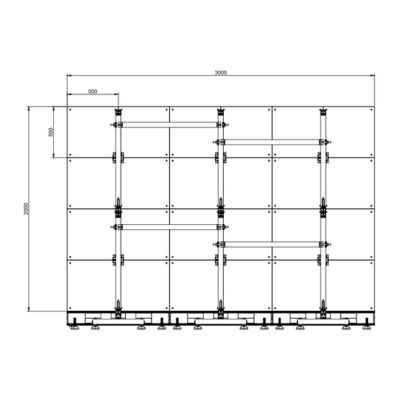

| Structure List: 3×2m LED Wall Ground Support for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
3/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
3/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
6/pcs |
| 4 | Crossbar | Material: aluminum alloy Length: 1m/pc Measure: 50*50*1000mm |
4/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
6/pcs |
Key Components
 |
Ground Beam: Unlike common Ground Beam on the market, our Ground Beam is designed with special cabinet locks, which are not only easy to operate, but also can firmly connect the cabinets, avoiding loosening or displacement during use. This can improve the overall stability and makes the installation more efficient and safer. |
|
Adjustable Base: The adjustable base is constructed from durable aluminum alloy with superior corrosion and rust resistance, allowing it to maintain structural integrity and remain deformation-free over years of use. |
 |
 |

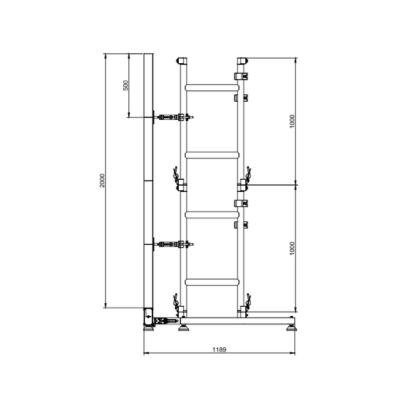

Ladder Truss: The ladder truss plays a crucial role in the entire LED Wall Ground Support. Vertically, it offers strong support for the adjustable base. Horizontally, it is securely attached to each cabinet using either a quick lock or screw lock, preventing any lateral movement. |
|
Quick Lock: If your cabinet has quick-lock holes, then you can lock the cabinets in only 5 seconds, which makes the setup much faster. This design removes the need for screws, so the whole process becomes easier and more efficient. |
|
 |
Screw Lock: If your cabinet is not equipped with quick-lock holes, then the screw lock will be your optimal choice. It is fixed by connecting the locking holes of four neighboring boxes. It still maintains the stability and reliability of the structure in long-term use. |
|
Crossbar: The crossbar links the ladder trusses together, which helps limit the movement and keeps the structure firm. With this strong side connection, the force is spread more evenly and stays focused, giving stable protection for long-term display use. |
 |
 |
Footboard: The footboard is installed between the ladder trusses, providing the installers with a convenient platform for working at height. It is optional, and you can decide whether to purchase it or not based on your actual needs. |
|
Weight: The counterweight is placed on the base to enhance stability, preventing the screen from tipping forward. It can be purchased optionally based on your requirements. |
 |
Innovative Patents · Reliable Quality
About Quick Lock Device
If you are tired of spending time twisting screws and struggling with tools every time you set up your LED screen, our patented quick-lock can solve this problem for you. You do not ever need to use with a screwdriver or worry whether the bolts are tight enough. This smart device-Quick Lock, allows you to lock cabinets securely in just a few seconds.
Our quick lock device is independently developed and designed by GF-Truss, awarded by China National Utility Model Patent. It fully demonstrates our innovative strength in LED support systems. This quick lock is specially built for LED display support. It adopts a unique structural design, which can quickly complete installation and disassembly without complex tools, greatly improving the construction efficiency. At the same time, when the quick lock is connected, it can achieve firmness and stability with the cabinets, effectively improving the efficiency. With the advantages of simple operation, high efficiency, stable connection and strong durability, this patented quick lock provides customers with a safer and more efficient experience.
