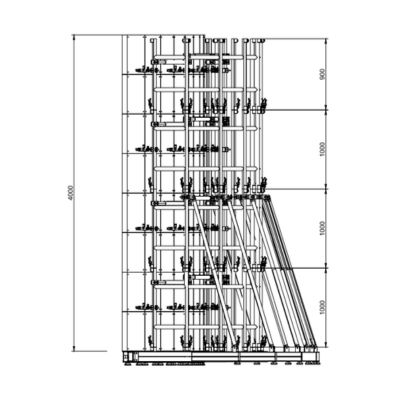

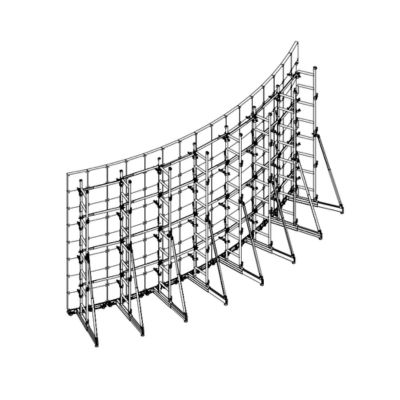

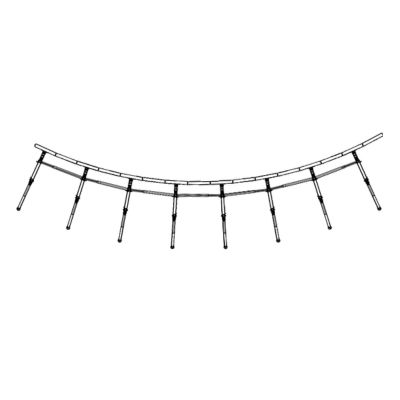

This Curved LED Screen Ground is 8 meters long and 4 meters high. It allows for easy angle adjustments within a range of ±10 degrees. The curved LED Screen Ground Support also supports the mixed-use of the cabinets. Whether for performances, rental events, or permanent installations, GF-Truss provides stable, efficient, and flexible solutions.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
8×4mLocking System :
Quick LockBuilding Shape :
CurvedCompatible Cabinet Size :
500×500mmProduct Introduction

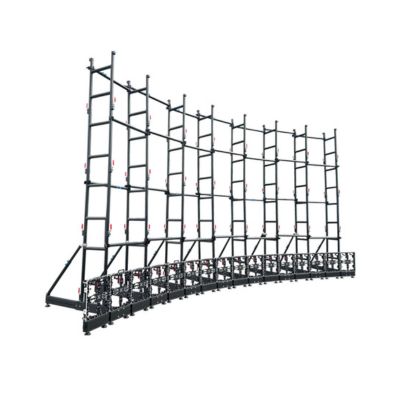

Curved LED Screen Ground Support 8*4m
Whether you are finding a reliable solution for curved LED screen installations or want to create an immersive visual experience, this aluminum alloy curved screen support is designed to meet your needs! Made from high-strength aluminum alloy, it strikes a perfect balance between being lightweight and having a superior load capacity. You won’t be disappointed with this curved LED screen bracket!
Product List
| Structure List: 8×4m Curved LED Screen Ground Support for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: Aluminum alloy 6061-T6 Adjustable Length: 850~1500mm |
8/pcs |
| 2 | Ground Beam | Material: Aluminum alloy 6061-T6 Material size: 450*68*166mm |
16/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*900mm |
8/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
24/pcs | ||
| 4 | Quick Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
32/pcs |
| 5 | Telescopic Crossbar | Material: 6061-T6 aluminum alloy Adjustable Length: 800~1500mm | 28/pcs |
| 6 | Diagonal Bracing |
Material: 6061-T6 aluminum alloy Material size: outer tube: 50*3*650mm; inner tube: 44*3*600mm |
8/pcs |
Key Components
 |

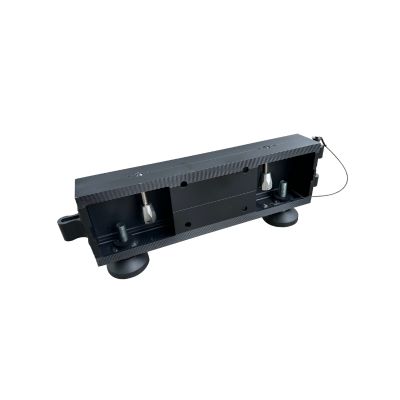

Ground Beam: The Ground Beam of the curved LED Screen Ground Support is shorter than the that of the LED Screen Bracket, with a conventional size of 500mm. The reduction of the length of the ground beam makes it easier to form an arc. It is more flexible to build a smooth arc shape. Adjacent ground beams are connected by pins. Just bring the adjacent ground beams together, drop in the pin, and the connection is done! |
|

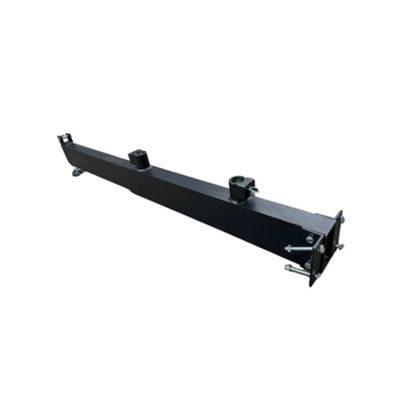

Adjustable Base: The Base of the Curved LED Screen Ground Support has a greater change in appearance than that of the common LED screen ground support. It has changed from a conventional rectangular base to a strip shape. It is composed of an inner tube and an outer tube, and the retractable length is 850-1500mm. At the same time, it is also equipped with adjustable feet, which is convenient for leveling when the ground is uneven. |
 |
 |

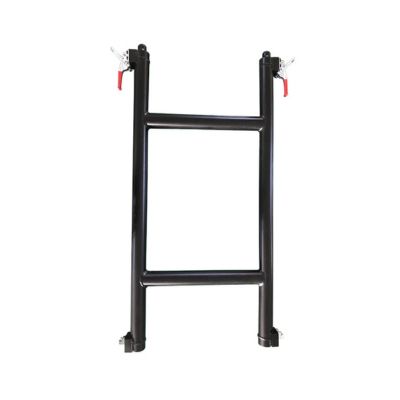

Ladder Truss: Its shape and design are consistent with common LED screen ground support. Available lengths include 500mm, 900mm, 1000mm, 1100mm, etc. We will accurately match the ladder truss according to your LED screen ground support . All ladder trusses have been strictly tested and verified in actual use. Currently, we have received consistently positive feedback from customers, with no negative reviews. |
|

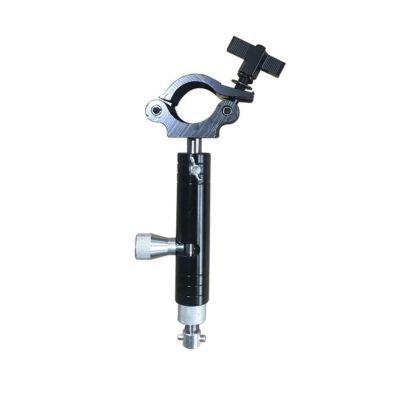

Quick Lock: The innovative quick-lock design of the Curved LED Screen Ground Support makes installation easier and more efficient than ever. Simply align the quick lock hole and gently twist to securely lock the cabinet in place. This design eliminates the need for complex tools. It significantly makes the overall process smoother and more efficient. |
|
 |

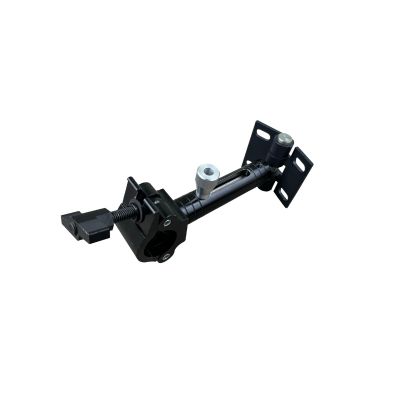

Hinge Lock: The Hinge Lock not only provides a secure connection but also allows for flexible angle adjustments. Even with frequent assembly and disassembly, it can stand up to years of use . Additionally, its operation is user-friendly, allowing for easy installation and disassembly by using tools. |
|

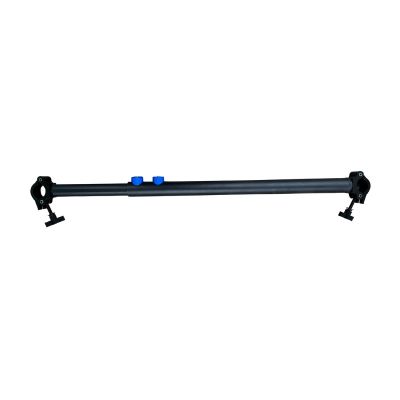

Telescopic Crossbar: The Telescopic Crossbar is securely attached to the adjacent ladder trusses with a single clamp at both end, which is essential for enhancing the structure's stability. This design effectively prevents the ladder trusses from shaking during use. Additionally, the Crossbar is easy to install and quick to disassemble. It is a crucial component for ensuring the stability of the LED display bracket. |
 |
 |

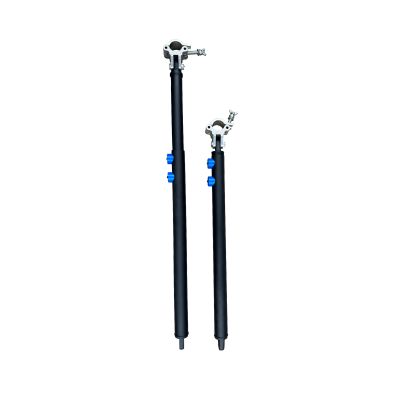

Diagonal Bracing： Diagonal Bracing is securely fastened to the adjustable bases using screws and connected to the ladder trusses with a clamp. This dual-connection design ensures a strong and stable linkage, effectively supporting and reinforcing the ladder trusses. By providing additional rigidity, the diagonal bracing help reduce sway, and enhance the overall stability. |
|

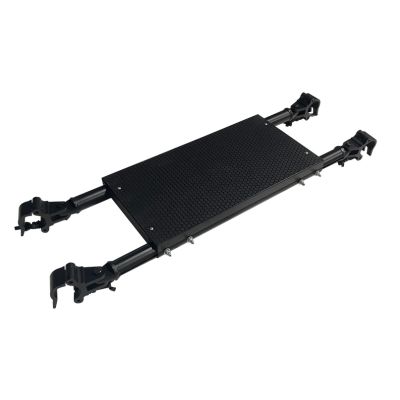

Footboard: Unlike traditional footboards, the Curved LED Screen Ground Support requires a specific arc. Therefore, its footboards are equipped with telescopic pipes. This design allows for adaptation to different radians, ensuring a close fit and stability of both the pedal and the overall bracket structure. |
|
|
|

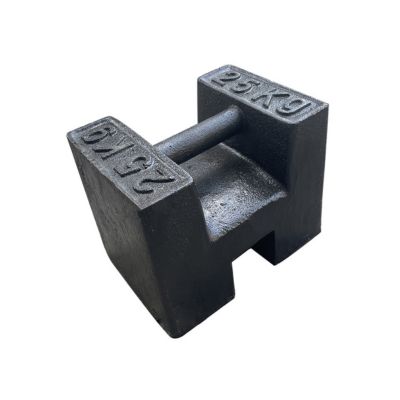

Weight: The weight used for the curved LED screen ground support differs from standard design weights. A special groove is designed at the bottom of the weight to securely accommodate the adjustable base of the curved LED screen ground support. This design can ensure that the weight is firmly fixed to the adjustable base. Of course, this is an optional component that you can choose to purchase according to your needs. |

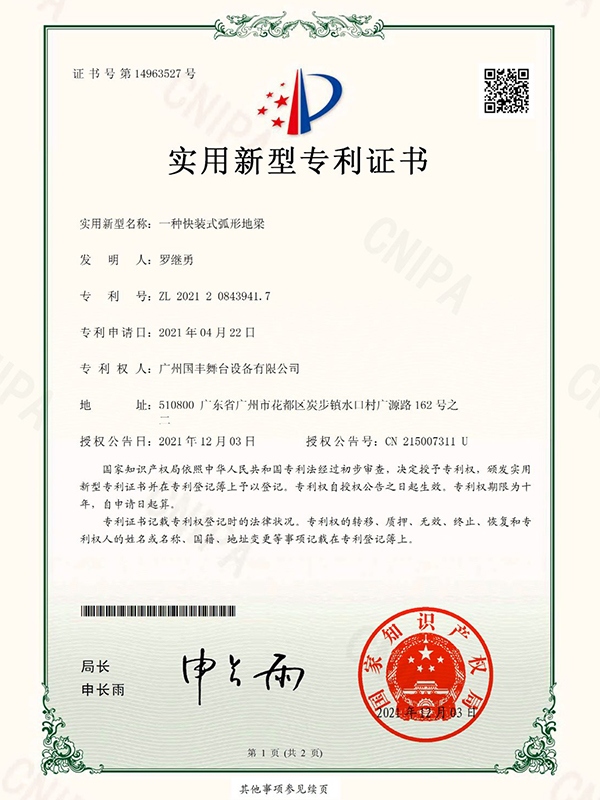

Innovative Patents · Reliable Quality
 |
About Patented Ground Beam (for Curved LED Screen Ground Support) In modern stage, exhibition, and immersive design, Curved LED Wall Displays are increasingly common. Our curved ground beam is a patented core product we developed just for these screens. It is in the same series as our straight ground beam. It also has precise cabinet locks to hold every screen cabinet together tightly.
On stages, it helps create dynamic curved backdrops. This makes the images look natural and smooth. At exhibition halls, it supports large curves, creating an immersive visual experience. It also provides stable support for high-resolution Curved LED Video Walls for advertising and big events. Our GF-Truss's ground beam for Curved LED Screen Ground Support can handle any job, from a small creative design to a large visual display.
We believe creativity should not be limited by a single structure. Our ground beam for Curved LED Screen Ground Support ensures both safety and stability. It also gives you more freedom and flexibility with curved designs. This will help you create more stunning visuals！ |
FAQ
1. Can I install this system myself, or do I need a professional crew?
You can definitely install the LED Wall Ground Support System yourself, but we recommend involving at least two people for safety and efficiency. Our LED screen ground support is designed for easy, tool-friendly assembly with a straightforward locking mechanism, so no advanced technical skills are required.
2. Will this work with my brand of LED cabinets?
Absolutely! GF-Truss specializes in providing customized LED display support solutions. We can tailor the LED wall structure to perfectly match your specific LED cabinet brand and model. What you need to provide with is a cabinet drawing or a sample cabinet to ensure precise compatibility. Once we have these specifications, our engineering team will create CAD drawings to seamless alignment for your display.
3. Can I reorder a previously ordered product?
Yes. We keep detailed records for every product we make, including all size and process information. Please reach out to our sales team, and we can resume production for you. We can guarantee that all new products can match your original order.

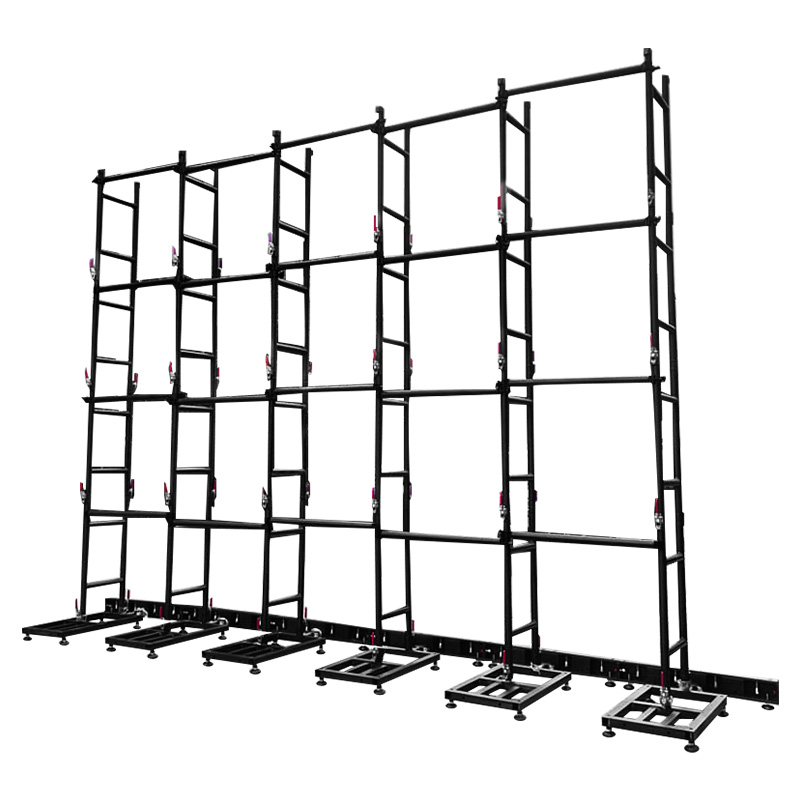

This is our medium-sized LED Video Wall Ground Support. With a length of 6 meters and a height of 4 meters, it is suitable for many product launches, conferences or performances. It skillfully balances space occupation and load-bearing requirements. It does not look bulky and heavy, but also can steadily support all kinds of mainstream LED cabinet sizes. What's more worth mentioning is that GF-Truss supports mixed use of 500*500mm and 500*1000mm cabinets, satisfying flexible adaptation to different cabinet sizes and layout requirements.
Read More

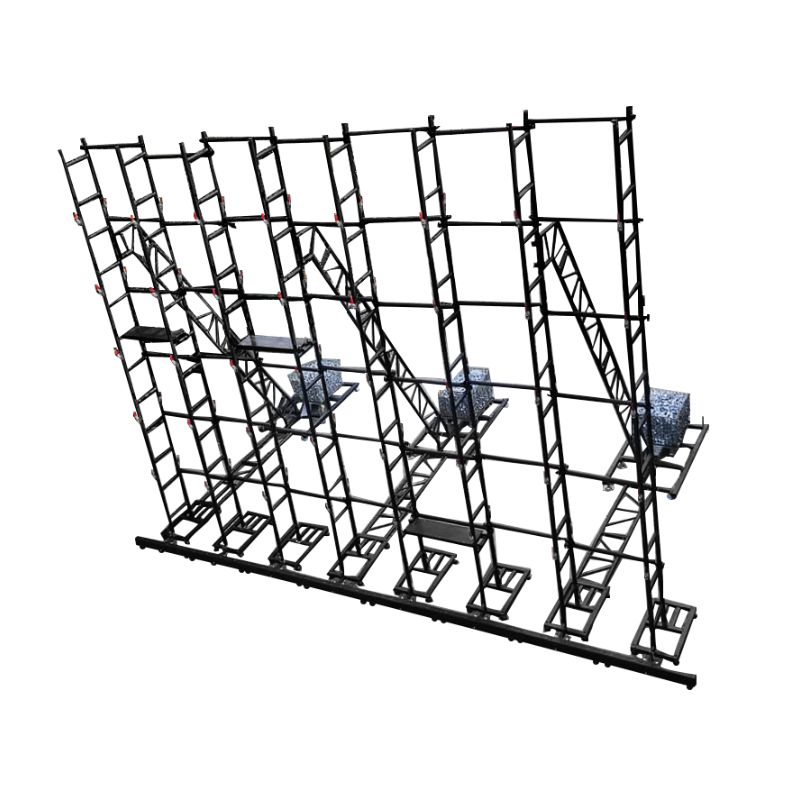

The Ballast System Enlarged Base LED Video Wall Ground Support is specially designed for large-scale LED displays. It maintains a stable structure while enhancing load-bearing capacity and safety performance. In addition to the adjustable base and ground beams, it features aluminum ladder trusses and enlarged bases, which provide a larger base area for stability.
Read More

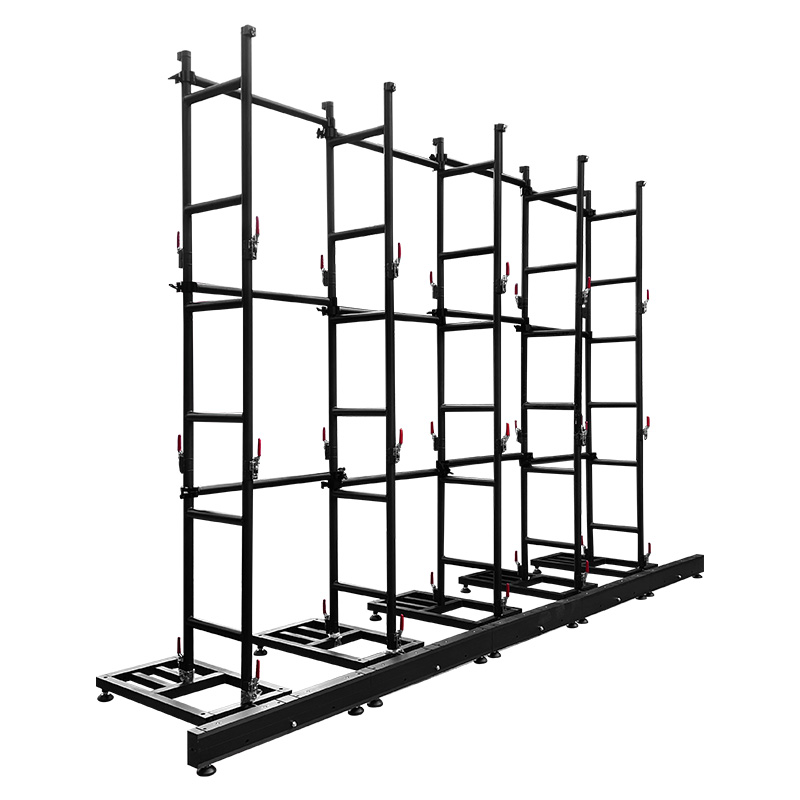

All parts of the 5*3m LED Wall Ground Support are made of high-strength aluminum alloy 6061-T6. Its surface is painted to resist rust, making it suitable for long-term and repeated use. Compared to most similar LED wall ground support available on the market, our 5*3m bracket features a more streamlined design that occupies less space.
Read More
This Curved LED Screen Ground is 8 meters long and 4 meters high. It allows for easy angle adjustments within a range of ±10 degrees. The curved LED Screen Ground Support also supports the mixed-use of the cabinets. Whether for performances, rental events, or permanent installations, GF-Truss provides stable, efficient, and flexible solutions.
Read More

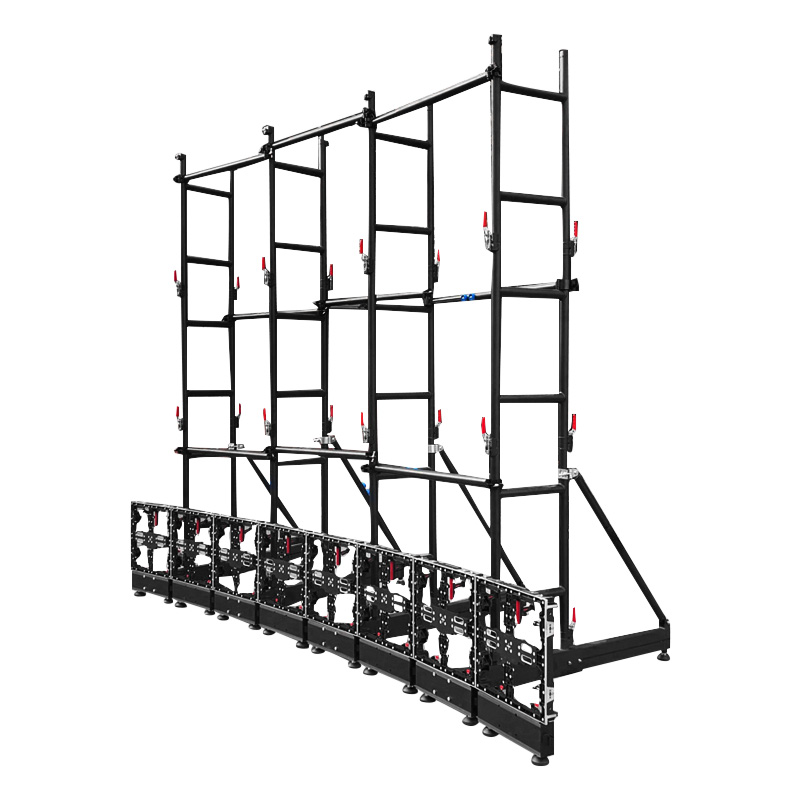

This is a medium-sized 4*3m Curved Ground Support for LED Wall. The whole structure is made from high-quality aluminum alloy, making it both lightweight and strong. This curved bracket can be used in various settings, such as stage events and exhibition displays. Whether you want to create a visual effect or meet high standards of structural safety requirements, it offers a reliable and professional bracket solution for your LED display.
Read More

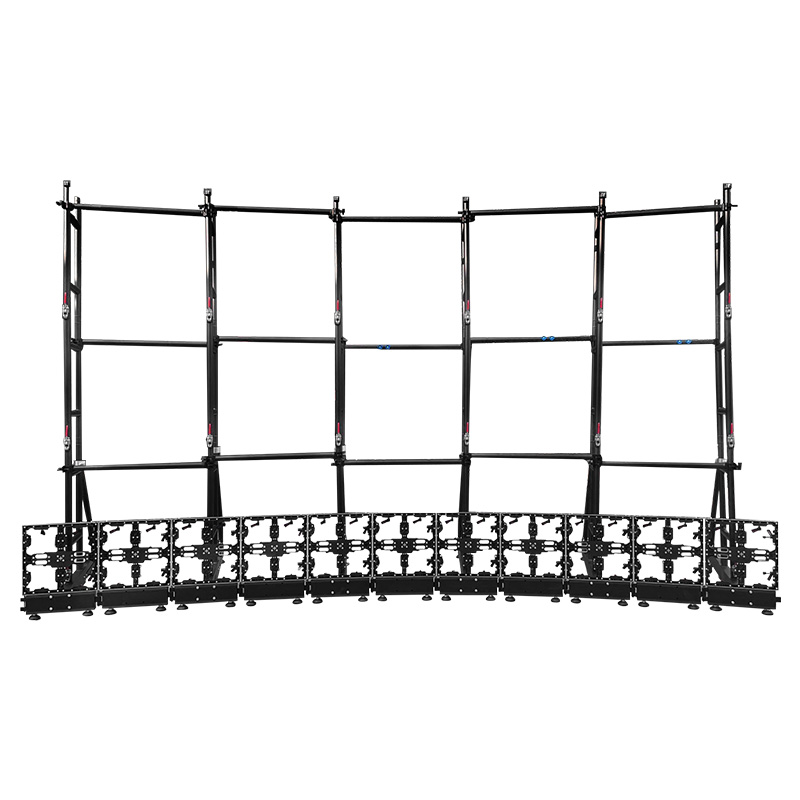

The Curved LED Wall Ground Support achieves a natural curvature for an immersive viewing experience. The 5.5×3 m Curved LED Screen Bracket is an excellent choice for anyone seeking style and functionality. Whether you want a curved layout or a wrap-around display, this bracket enables you to create a variety of dynamic visual effects effortlessly.
