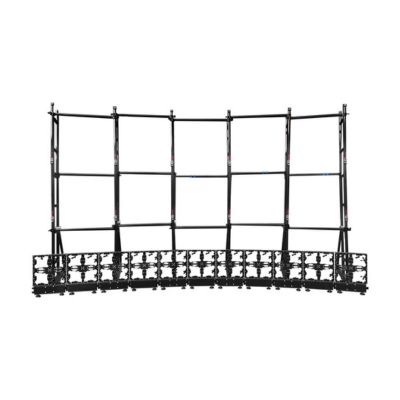

The Curved LED Wall Ground Support achieves a natural curvature for an immersive viewing experience. The 5.5×3 m Curved LED Screen Bracket is an excellent choice for anyone seeking style and functionality. Whether you want a curved layout or a wrap-around display, this bracket enables you to create a variety of dynamic visual effects effortlessly.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
5.5×3mLocking System :
Screw LockBuilding Shape :
CurvedCompatible Cabinet Size :
500×1000mmProduct Introduction

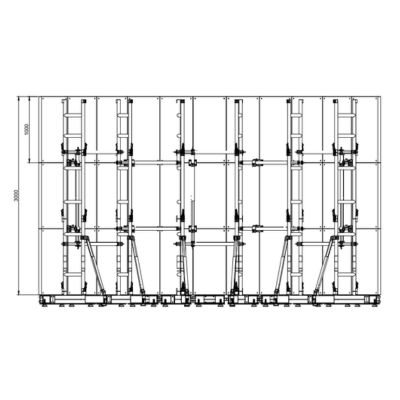

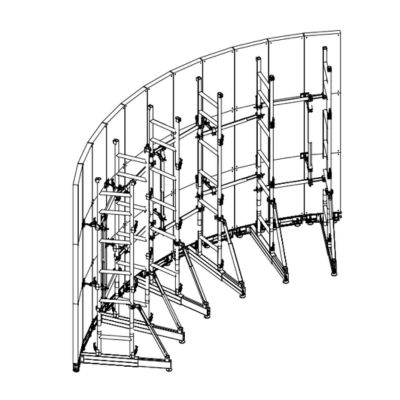

Curved LED Wall Ground Support 5.5*3m
Select a 5.5×3m Curved LED Wall Ground Support, then you can get both an aesthetically pleasing and a functional solution. This bracket is constructed from high-strength aluminum alloy, ensuring it can support the weight of LED screens and endure long-term use. The curved design allows for flexible angle adjustments. No matter whether it is for inner or outer arcs, to meet the diverse needs of different events and displays.
Product List
| Structure List: 5.5×3m Curved LED Wall Ground Support for 500×1000mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: Aluminum alloy 6061-T6 Adjustable Length: 850~1500mm |
6/pcs |
| 2 | Ground Beam | Material: Aluminum alloy 6061-T6 Material size: 450*68*166mm |
11/pcs |

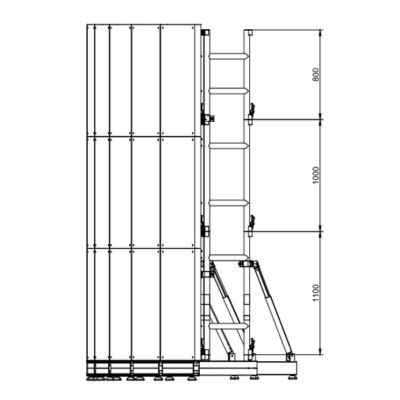

| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*800mm |
6/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
6/pcs | ||
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1100mm |
6/pcs | ||
| 4 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
10/pcs |
| 5 | Telescopic Crossbar |
Material: 6061-T6 aluminum alloy Adjustable Length: 800~1500mm |
10/pcs |
| 6 | Diagonal Bracing | Material: 6061-T6 aluminum alloy Material size: outer tube: 50*3*650mm; inner tube: 44*3*600mm |
6/pcs |
Key Components
 |
Ground Beam: The ground beam is the foundation of curved display stand. It's more than just a simple connector. Its main job is to securely lock the bottom cabinets in place. This prevents any shaking or movement from outside forces. The precise design connects every cabinet perfectly. |
|
Adjustable Base: Our adjustable base is designed for curved builds. It has high-precision adjustable feet. The base can also adjust in length. It's simple to level, whether indoors or on uneven outdoor surfaces. This ensures the entire system remains balanced and stable under heavy loads. |
 |
 |
Ladder Truss: Our ladder trusses provide reliable support for your LED wall display. Due to their modular design, building a screen bracket is as fast and flexible as playing with blocks. If you set up a 3-meter screen previously and now need to upgrade to 5 meters, simply purchase the additional length modules. They can connect perfectly with your existing ladder trusses. |
|
Quick Lock: Compared to screw locks, quick locks offer significant advantages for curved screens. Their locking mechanism automatically adjusts to the cabinet angle within a certain range. It can enable high-precision splicing even in curved screen installations with varying curvatures. This lets you get a precise, gap-free fit, even when building a curved screen with a different angle.
|
|
 |
Hinge Lock: Traditional screw locks are fixed in place, but our hinge lock gives you total freedom. The innovative adjustable-angle design allows you to perfectly match the angle of every screen cabinet. This makes it possible to create seamless curves and unique shapes for your display. No matter the angle, the hinge lock secures your ground stand and ensures it stays strong and stable. |
|
Telescopic Crossbar: Our telescopic crossbar connects the adjacent ladder trusses. It is designed with adjustable lengths. This allows for precise adjustment for any curve, which helps every screen panel connects smoothly and perfectly. |
 |
 |
Diagonal Bracing： The diagonal bracing is crucial for making the Curved LED Display Ground Support more stable. It significantly enhances the overall strength and balance. Due to its adjustable design, you can easily extend or shorten the length as you need. |
|
Footboard: The footboard for the Curved Ground Support is a practical tool that makes installing and maintaining easier. It comes with two telescopic clamps on each end, allowing it to attach securely to the ladder trusses. |
|
|
|
Weight: Each counterweight weighs 25kg. This extra weight effectively lowers the center of gravity. It can resist unpredictable external forces such as crowds and unexpected bumps, providing dual protection for your equipment and audience. For big events, stadiums, these counterweights are a great way to boost overall safety. |

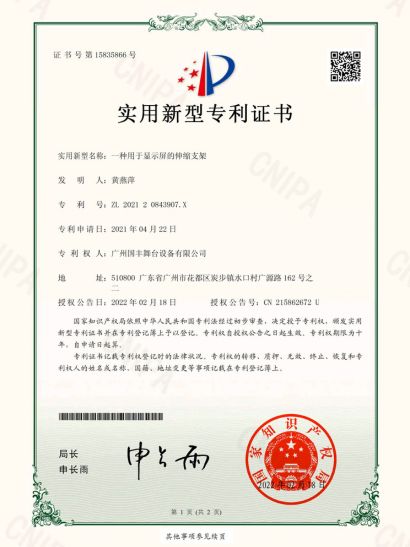

Innovative Patents · Reliable Quality
 |
Fixed Lengths Are Over: Our Patented Adjustable Base Is Your Secret Weapon for Any Curved Display！ The ground beam is an important part of a Curved LED Display Stand. It connects and locks the bottom cabinets/panels in place.
GF-Truss's patented adjustable base is designed specifically for curved LED displays. It has an innovative adjustable structure that provides a reliable foundation for curved shapes. Our telescopic base is different from the one-piece bases in that it has a split-piece design, with the base and ground beam being two separate parts. It is much more efficient for installation and transport.
The length of adjustable base can be changed from 850mm to 1500mm, which is more flexible than traditional fixed-size bases. This allows users easily change curve radius and on-site layouts to fit different installation needs. Whether for a small-radius curve or a large-span arc, it ensures a stable and seamless display support effect. |
