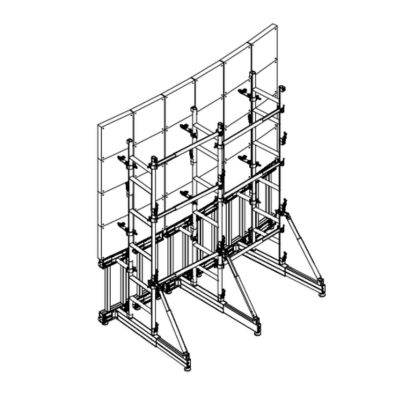

This 3*2m Curved Off-ground LED Wall Ground Support can solve the visual limitations of common LED screen ground support. The curved structure not only effectively reduces the scotomas, but also flexibly adjusts the arc to meet the needs of both inner and outer arcs.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
3×2m(off-ground 1m)Locking System :
Quick LockBuilding Shape :
CurvedCompatible Cabinet Size :
500×500mmProduct Introduction

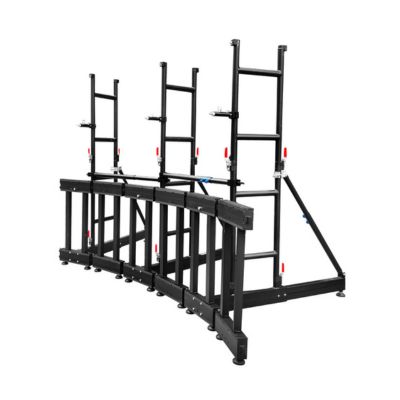

Curved Off-ground LED Wall Ground Support 3*2m
With multiple height adjustment points, you can easily set the ideal height in just a few simple steps, without complicated tools or cumbersome processes. The curved Off-Ground LED Wall Ground Support has also undergone testing to make sure it stays stable and reliable during repeated lifting and lowering.
Product List
| Structure List: 3×2m Off-ground Curved LED Wall Ground Support for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: Aluminum alloy 6061-T6 Adjustable Length: 850~1500mm |
3/pcs |
| 2 | Ground Beam | Material: Aluminum alloy 6061-T6 Material size: 450*68*166mm |
12/pcs |

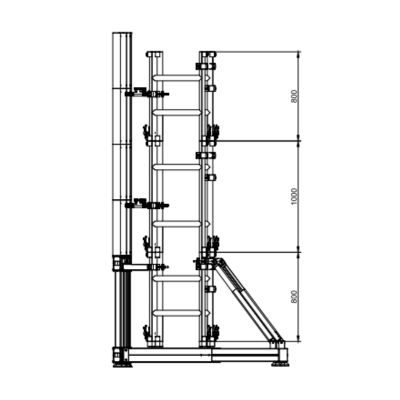

| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*800mm |
6/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
3/pcs | ||
| 4 | Quick Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
6/pcs |
| 5 | Telescopic Crossbar |
Material: 6061-T6 aluminum alloy Adjustable Length: 800~1500mm |
6/pcs |
| 6 | Diagonal Bracing |
Material: 6061-T6 aluminum alloy Material size: outer tube: 50*3*650mm; inner tube: 44*3*600mm |
3/pcs |
| 7 | Lifting Pipe |
Material: 6061-T6 aluminum alloy |
12/pcs |
| 8 | Beam Connector |
Material: 6061-T6 aluminum alloy |
3/pcs |

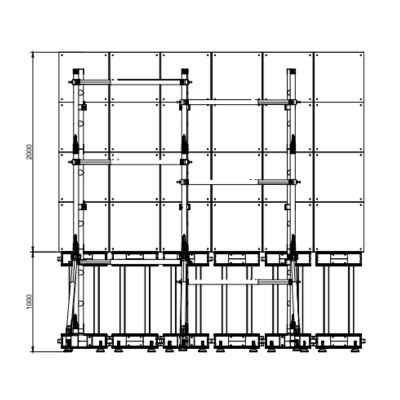

*The LED Wall Ground Support raises the 3×2m LED display to a height of 1 meter.
Key Components
 |
Ground Beam: The first layer of the ground beam is for support, while the upper one locks the LED cabinets in place. This makes the screen display much more stable, preventing any movement or displacement. This smart design can easily achieve 1-meter elevation of the screen. |
|
Adjustable Base: Our adjustable base has an innovative strip design, providing dependable support for curved LED displays. The base offers adjustable length adjustments to accommodate various installation needs. Unlike common integrated bases, our design separates the base from the ground beam. You are able to adjust the angle and position during installation, free from the constraints of fixed structures. |
 |
 |
Ladder Truss: Ladder truss is constructed from high-strength aluminum alloy, providing a stable yet lightweight structure. It simplifies transportation and installation. The modular design of the it allows for flexible adjustment of the number of frames to accommodate various LED wall sizes. |
|
Quick Lock: If you want to quickly lock panels to the ladder trusses, we highly recommend our patented quick lock. It's designed to be compatible with many different panel sizes. It can also be customized to perfectly match LED panels with different interface specifications. |
|
 |
Hinge Lock: This hinge lock has an adjustable-angle design. It connects LED cabinets at different angles while staying secure. Unlike fixed screw locks, our hinge lock allows the hinge to turn freely. This makes it perfect for any curved or special-angle LED display installation. |
|

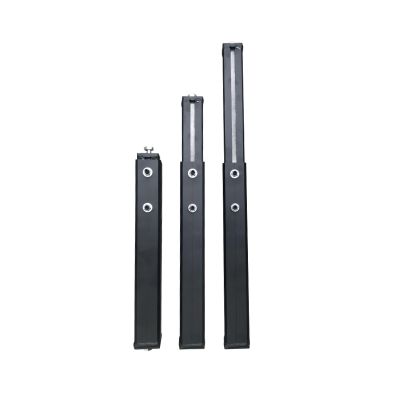

Lifting Pipe: Lifting pipes are designed to support the upper ground beam. Each ground beam will be equipped with two lifting pipes to support the upper ground beam. The length is adjustable, offering a flexible range to accommodate varying height requirements. The adjustable range is 0.7-1 m and 1.5-2 m. |
 |
|
|
Diagonal Bracing： This diagonal bracing is a crucial part of the whole LED ground stand. It works in conjunction with the adjustable base and ladder truss to form a robust triangular support structure. This design effectively resists external forces like strong winds or crowds. |
|

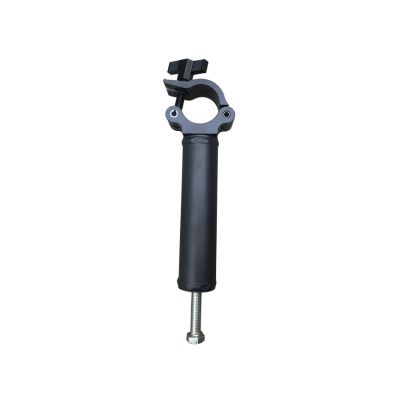

Beam Connector: The beam connector is connected to the upper ground beam through a clamp to ensure the overall stability. This prevents the upper ground beam from shaking during use. It is positioned behind the second ground beam, which is designed to be hidden without affecting the overall appearance. |
|
|
Telescopic Crossbar: Our telescopic crossbar has an internal slide and locking mechanism, offering precise length adjustment. It was designed to solve the problem of traditional fixed crossbar that couldn't fit every curve. The crossbar's flexible extension allows you to precisely set it for any curved displays you need. |
|

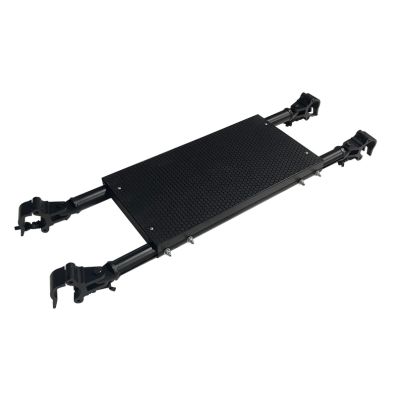

Footboard: Made from high-strengh aluminum alloy, this footboard is designed to give installers a safe placed to stand anwalk during setup and maintenance. It has a strip-shaped design and comes with telescopic clamps on each end. Unlike most fixed footboards, you can adjust its length to fit your exact needs. |
 |
|
Weight: This 25kg weight has a solid structure, ensuring stability during use. It has a sturdy handle in the middle, which makes it easy to move quickly. As a key counterweight for small to medium-sized LED support stands, this weight significantly boosts the whole support stand's stability and safety. |
Why Choose Our Curved LED Ground Support
1. The Foundation: Building a Perfect Curve
Making a perfect curved LED display starts with a strong foundation. Our curved off-ground LED Wall Support is built to withstand the unusual physics of a curve. Unlike most regular supports, they are made for flat panels. Our patented telescopic base and two-layer ground beam work together to create a perfectly level foundation on any terrain, from an indoor stage to rough outdoor ground. We solve your biggest pain point: making sure your spectacular curved design is built on an equally stable base, no matter what.
2. The Elevation: An Elevated View
Putting a large LED wall directly on the ground is risky. It can be damaged by crowds, bumps, or cause bad viewing angles. Our system solves this problem by raising your LED display to an ideal height for visibility. This isn't only about getting a better view. It's also about keeping your costly equipment secure and making sure that people near the display are safe. With our LED stand support, you can raise your screen and your peace of mind.
3. The Result: A Seamless System
Building a complex curved display can be stressful. That's why our ground support is designed to have all parts work together perfectly. Every element, from the quick locks to the ladder trusses, is designed for a perfect fit and quick setup. This smooth integration makes everything easy, so you can have a professional-looking LED display that's ready to amaze without any trouble.
