To maximize ground space in limited areas, GF-Truss has launched a ground-free LED Screen Ground Support to effectively free up space. This is a small size 2*2m Off-ground LED Screen Display Stand, specially designed for limited space and lightweight needs. The adjustable height is divided into two ranges: 0.7 meters to 1 meter, and 1.5 meters to 2 meters. You can flexibly adjust the height according to your specific needs. In addition, if you have fixed requirements for height, we also support customized solutions.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
2×2mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×500mmProduct Introduction

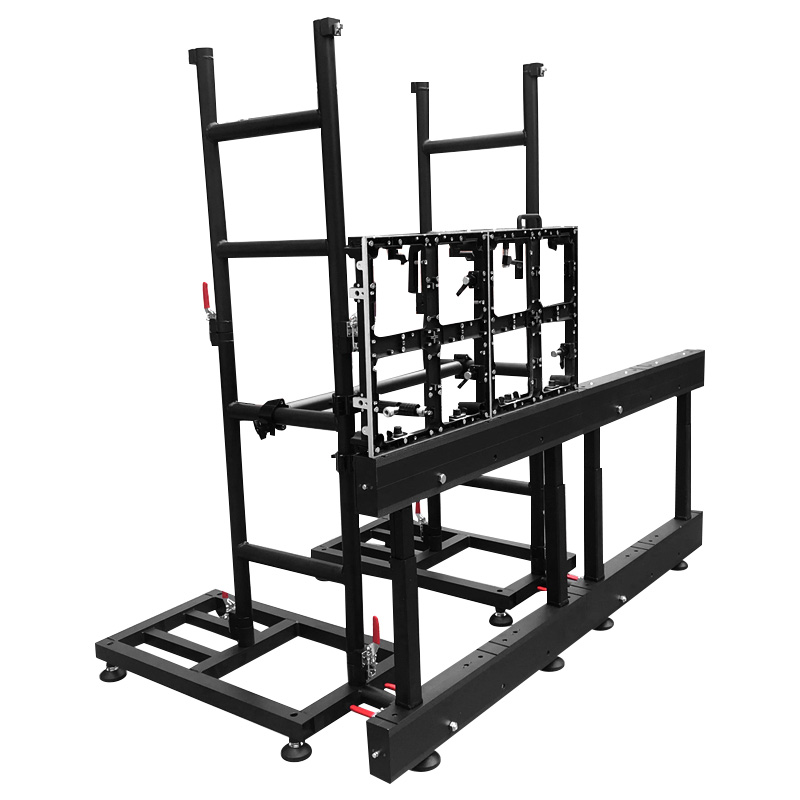

Off-ground LED Screen Display Stand 2*2m
No matter whether it is used in conference rooms, exhibitions, or small event venues, this off-ground LED Screen Ground Support provides solid and reliable support for your LED display. You can flexibly adjust the height according to your specific needs. In addition, if you have fixed requirements for height, we also support customized solutions.
Product List
| Structure List: 2×2m Off-ground LED Screen Display Stand for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
2/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
4/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*800mm |
2/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*900mm |
2/pcs | ||
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
2/pcs | ||
| 4 | Crossbar | Material: aluminum alloy Length：1m/pc Measure: 50*50*1000mm |
6/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
4/pcs |
| 6 | Beam Connector | Material: aluminum alloy 6061-T6 | 2/pcs |
| 7 | Lifting Pipe | Material: aluminum alloy 6061-T6 | 4/pcs |

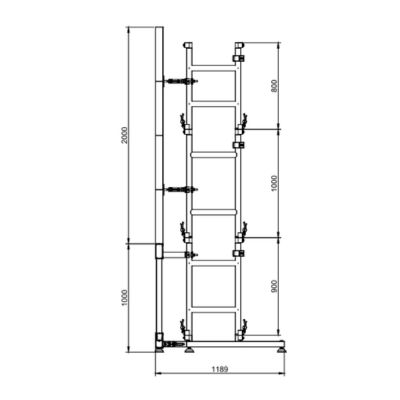

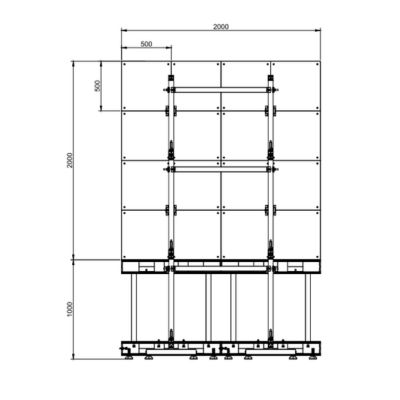

*The LED Wall Ground Support raises the 2×2m LED display to a height of 1 meter.
Key Components
 |

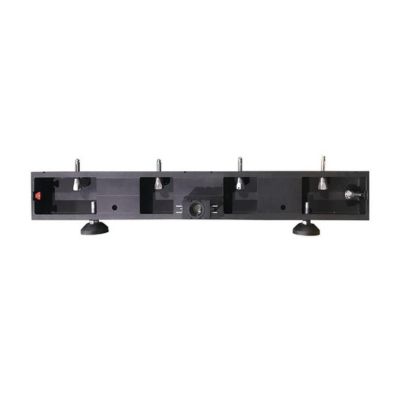

Ground Beam: Many ground beams on the market only serve as a simple placement for the first layer of the cabinet. They cannot provide reliable fixation. Our ground beam innovation lies in its ability to customize exclusive cabinet locks according to your cabinet. These locks will firmly lock your first-layer cabinet to the ground beam. |
|

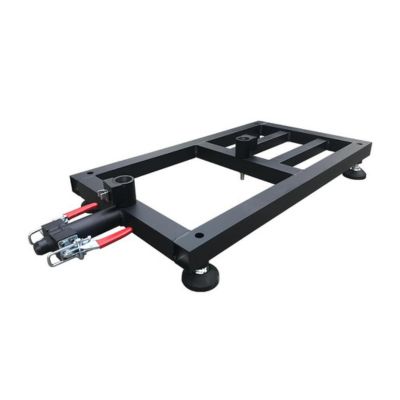

Adjustable Base: The adjustable base is the core support for the whole display stand. It has adjustable feet on the bottom, so you can fine-tune it for uneven ground. This ensures your LED display stays perfectly level and straight. The base connects to the ladder trusses with a special, pre-set interface, which makes assembly much faster. |
 |
 |
Ladder Truss: The ladder truss is designed with high-strength aluminum alloy round tubes. It connects to the cabinets enclosure using quick locks or screw locks. Ladder trusses of varying lengths can be used to accommodate different screen sizes. |
|
Quick Lock: Say goodbye to the hassle of traditional screw locks! Our patented quick lock is made for fast, efficient setup. It’s an efficient connection part designed specifically for LED display walls, and you can install and take it down in seconds, which saves a lot of time.
|
|
 |

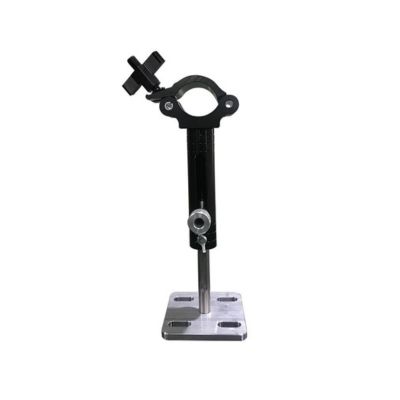

Screw Lock: The screw lock is the most classic and reliable way to secure a straight display stand. This traditional method is known for being sturdy, stable, and very safe, making sure a large display won't budge in any situation. It's especially perfct for long-term displays. |
|

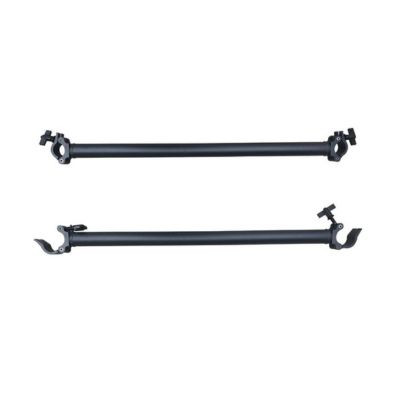

Crossbar: The crossbar connects the ladder trusses, which helps reduce movement and keeps the structure strong. With this firm side connection, the force is spread evenly and focused, providing stable support for long-term use. |
 |
 |

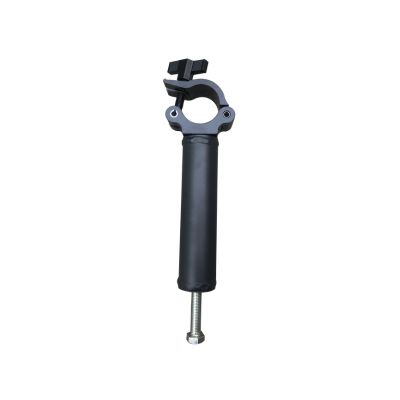

Beam Connector: Beam Connector is used to stabilize the upper ground beam, ensuring that the entire off-ground LED Screen Ground Support remains secure and resistant to shaking. This helps to enhance safety during use. |
|

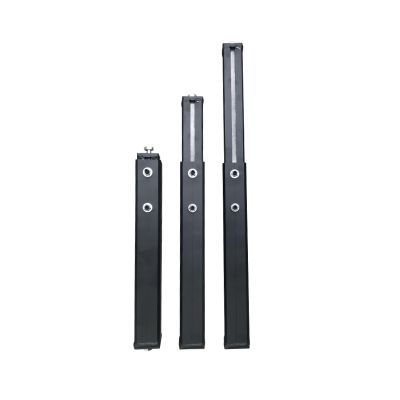

Lifting Pipe: The lifting pipe’s height can be adjusted anywhere from 0.7 to 1 meter, and if you prefer, you can also choose a fixed height between 0.5 and 1.5 meters. We’re happy to offer customized lifting pipes to fit your exact needs. |
|
 |

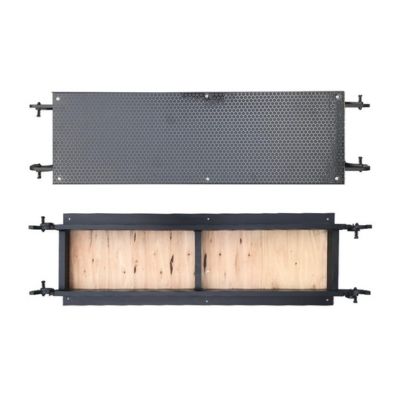

Footboard: To make it safer to operate at high places, the surface of the footboard has been covered with an anti-slip texture. The footboard gives operators a steady place to stand when using with the ladder trusses, which makes installation faster and safer. |
|
Weight: The weights are essential add-ons that maintain the stability of the display stand and are mostly employed to increase the overall resistance to tipping. The total center of gravity of the whole structure can be decreased by adding additional weights in a sensible way, increasing its stability when subjected to external pressures, vibrations, or severe winds. |
 |
Why GF-Truss
The Ultimate Off-Ground LED Wall Support Solution
We provide a off-ground LED Screen Display Stand engineered for unwavering stability. What distinguishes us is our innovative two-layer ground beam design that can firmly lock your LED cabinets. With quick-release locking mechanisms, modular ladder trusses, ground beams and adjustable bases, our LED Screen Display Stand ensures that your display remains rock-solid.
We know the concerns: elevating a heavy straight LED wall can be risky. Most of the users may worry about “how to safely elevate straight LED panels off the ground without imbalance”, and even tipping hazards. These challenges raise anxiety over safety and product integrity during events or installations.
We understand the challenges of off-ground racking systems, particularly concerning safety and efficiency. That's why our off-ground LED Display Stand offers a comprehensive solution. For uneven ground, our adjustable feet make sure the base is perfectly level. We've adopted an innovative ground beam design, which allows for customized panels locks. These locks securely fasten the panel to the ground beam, eliminating any potential for movement or displacement. Combined with the crossbar, this forms a rock-solid overall structure. Moreover, our patented quick locks enable you to accurately and swiftly secure each layer of the panels to the ladder trusses during subsequent assembly. All components utilize this quick-release lock design, making the construction process more efficient and safer than ever before.
