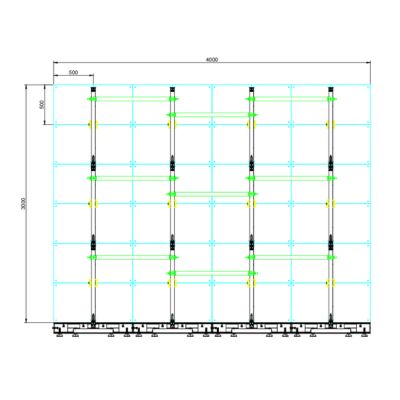

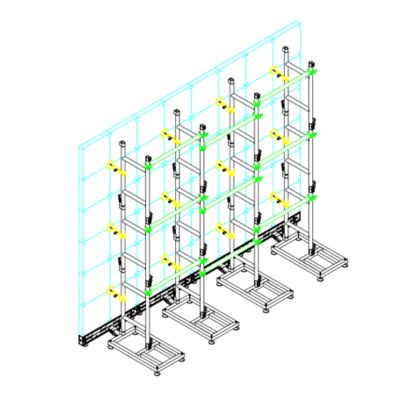

This is a 4m long and 3m high LED Screen Ground Support. It is built with standard aluminium alloy truss 6061-T6. The main structure includes base, ground beam, ladder truss, crossbar and other components. This LED Screen Ground Support is suitable for small and medium-sized needs. The bottom of it is equipped with adjustable feet for quick levelling on uneven ground.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
4×3mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×500mmProduct Introduction

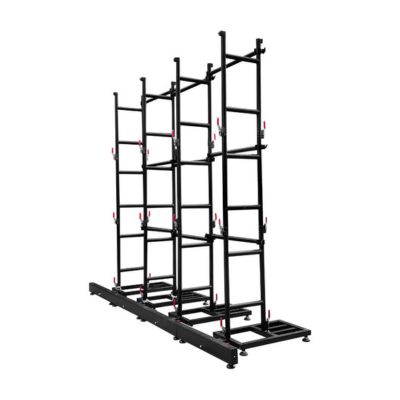

Aluminum LED Screen Ground Support 4*3m for LED Wall
The overall LED Screen Ground Support adopts QUICK LOCK connection. You even do not need many tools. Two to three people can finish the construction. This 4*3m LED Screen Ground Support is suitable for exhibitions, business shows and other occasions. GF-Truss supports customization by your screen size (500*500mm, 500*1000mm, 640*640mm, 960*960mm).
Product List
| Structure List: 4×3m LED Screen Ground Support for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
4/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
4/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*900mm |
4/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
4/pcs | ||
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1100mm |
4/pcs | ||
| 4 | Crossbar | Material: aluminum alloy Length: 1m/pc Measure: 50*50*1000mm |
9/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
12/pcs |
Key Components
 |
Ground Beam: It is made of aluminum alloy. The length, cabinet lock and hole spacing can be customized. Ground Beam is equipped with adjustable feet, which can be easily leveled by them when the ground is uneven. |
|
Adjustable Base: Our adjustable base is made of high-strength aluminum alloy, with excellent corrosion resistance and rust-proof properties. It maintains structural stability over long-term use without deformation. |
 |
 |

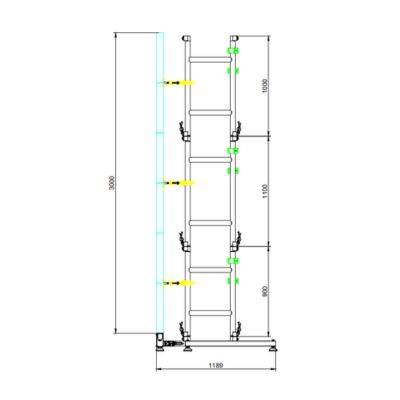

Ladder Truss: The Ladder Truss plays a crucial role in the entire LED Screen Ground Support. Vertically, it offers strong support for the adjustable base. Horizontally, it is securely attached to each cabinet using either a quick lock or screw lock, preventing any lateral movement. |
|
Quick Lock: If your cabinet is equipped with quick-lock holes, congratulations! You’ll enjoy a highly efficient experience that allows you to lock the cabinet in just 5 seconds. This greatly improves setup efficiency. The quick-lock design eliminates the tedious screw fixing steps , making the entire construction faster and more convenient. |
|
 |
Screw Lock: If your cabinet is not equipped with quick-lock holes, then the screw lock will be your optimal choice. It is fixed by connecting the locking holes of four neighboring boxes. It still maintains the stability and reliability of the structure in long-term use. |
|
Crossbar: Crossbar connects the Ladder Trusses. This effectively restricts the displacement of the backstops to the ends of the columns and prevents the structure from loosening. Through this solid lateral connection, the overall force is more uniform and concentrated. Provide reliable protection for long time display. |
 |
 |
Footboard: The Footboard is installed between the ladder trusses, providing the installers with a convenient platform for working at height. It is optional, and you can decide whether to purchase it or not based on your actual needs. |
|
Weight: The counterweight is placed on the base to enhance stability, preventing the screen from tipping forward. It can be purchased optionally based on your requirements. |
 |
Product Advantages
1 Patented Products
2 Easier Installation than Most on the Market
3 Customized Service
4 High Strength and Durability
FAQ
1. What are your advantages?
We are the patented LED Screen Ground Support in China. All our components are developed and produced in our own factory, allowing us to maintain independent design and production capabilities. This enables us to provide customers with more competitive solutions in quality control, production, and research and development.
2. How can I customize the LED Screen Ground Support?
To customize the LED Screen Ground Support, please provide the necessary dimensions, load-bearing requirements. Our technical design team will create a tailored structural design and optimize the scheme based on your needs. Additionally, we support customization based on your cabinet's CAD drawings or physical cabinet samples to ensure that the final product perfectly meets your expectations.
3. Can I reorder a previously ordered product?
Yes. We will keep detailed production records for each batch of factory products, including size specifications and process requirements. You only need to contact our sales team, and we can resume production to ensure that the new product matches your original order.
