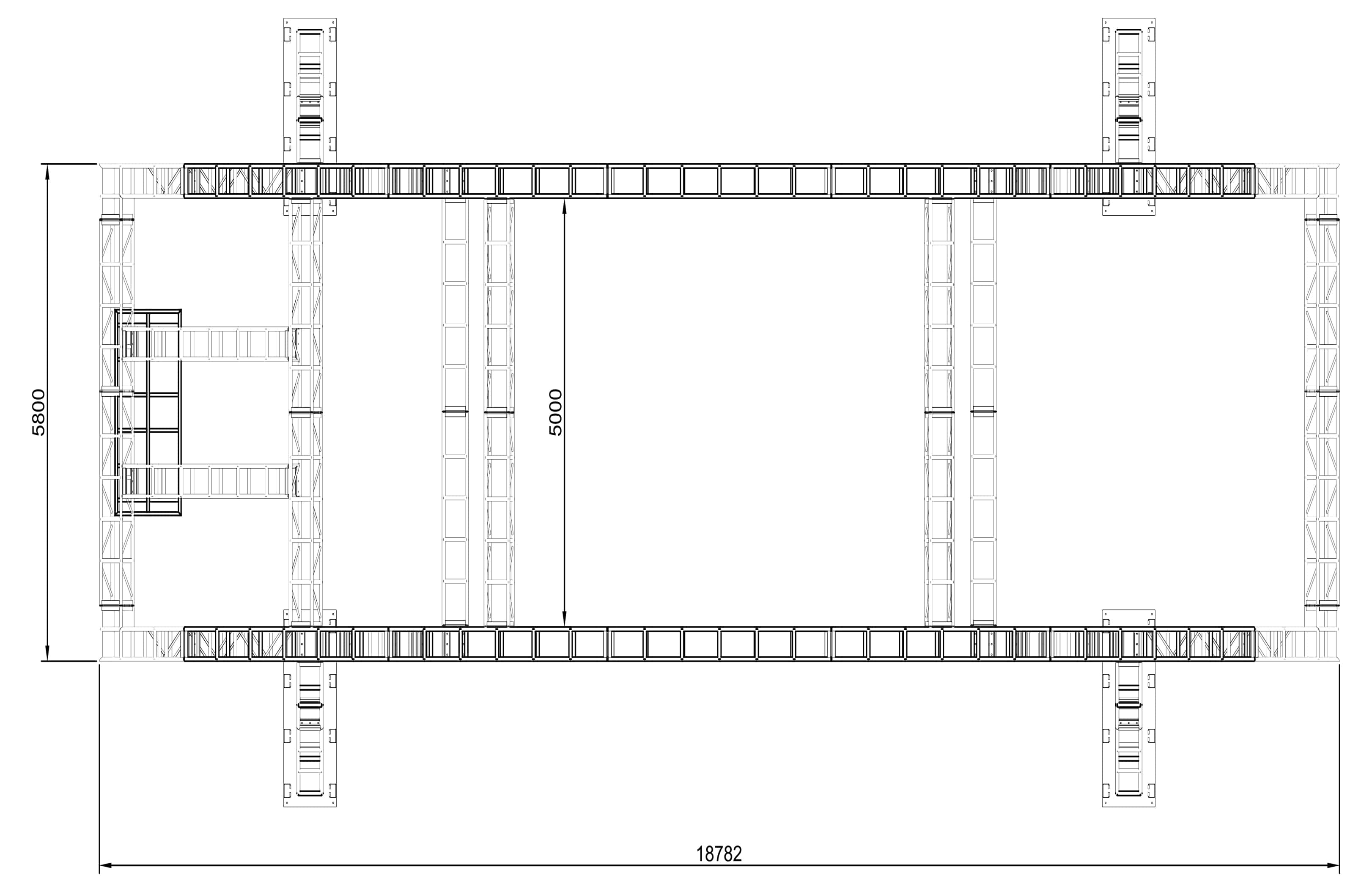

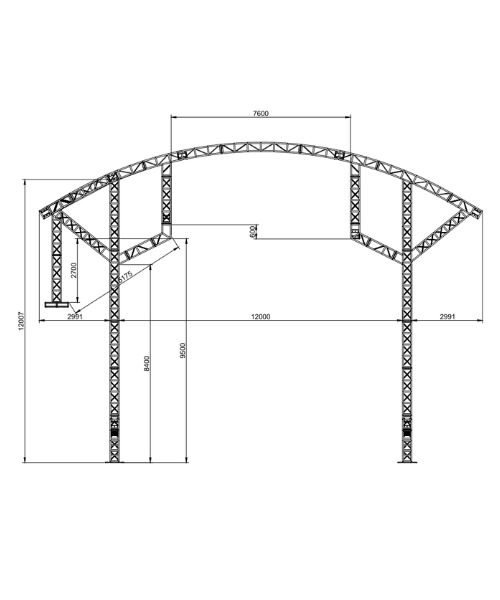

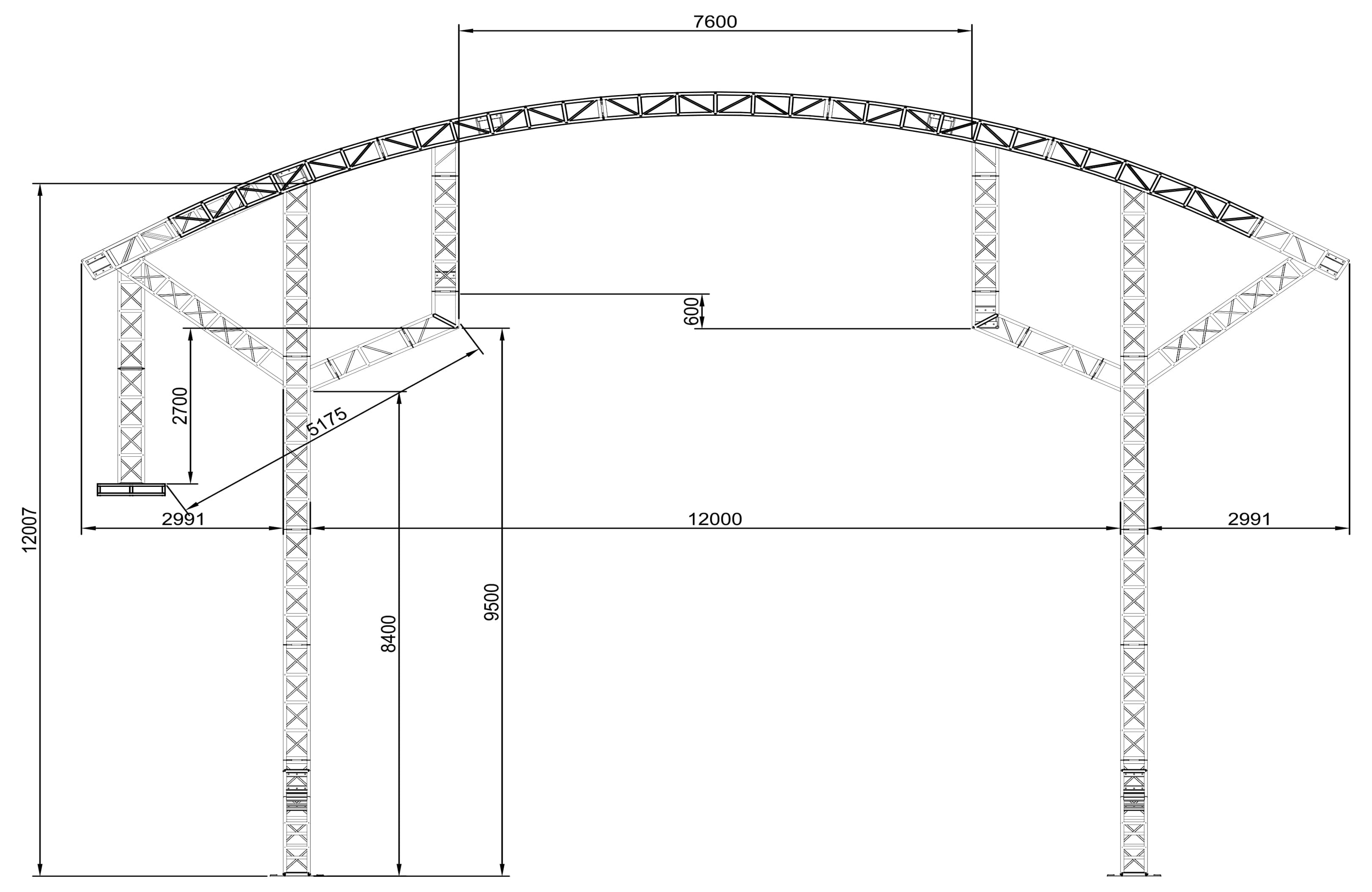

This 18m*5m*12m curved truss structure is customized for acrobatic performances. According to the customer's requirements, the left side of the structure must be 60cm higher than the right side, and the hanging parts on both sides must be 8m apart.
Item No :
S400Connection :
BoltsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingProduct Introduction

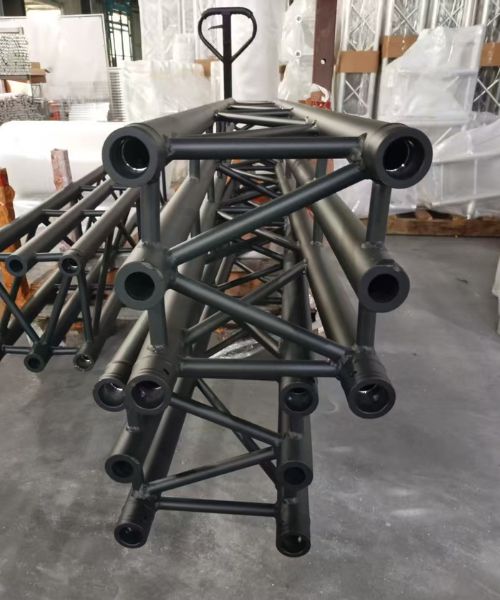

Aluminum Bolt Curved Truss Structure 18*5*12m

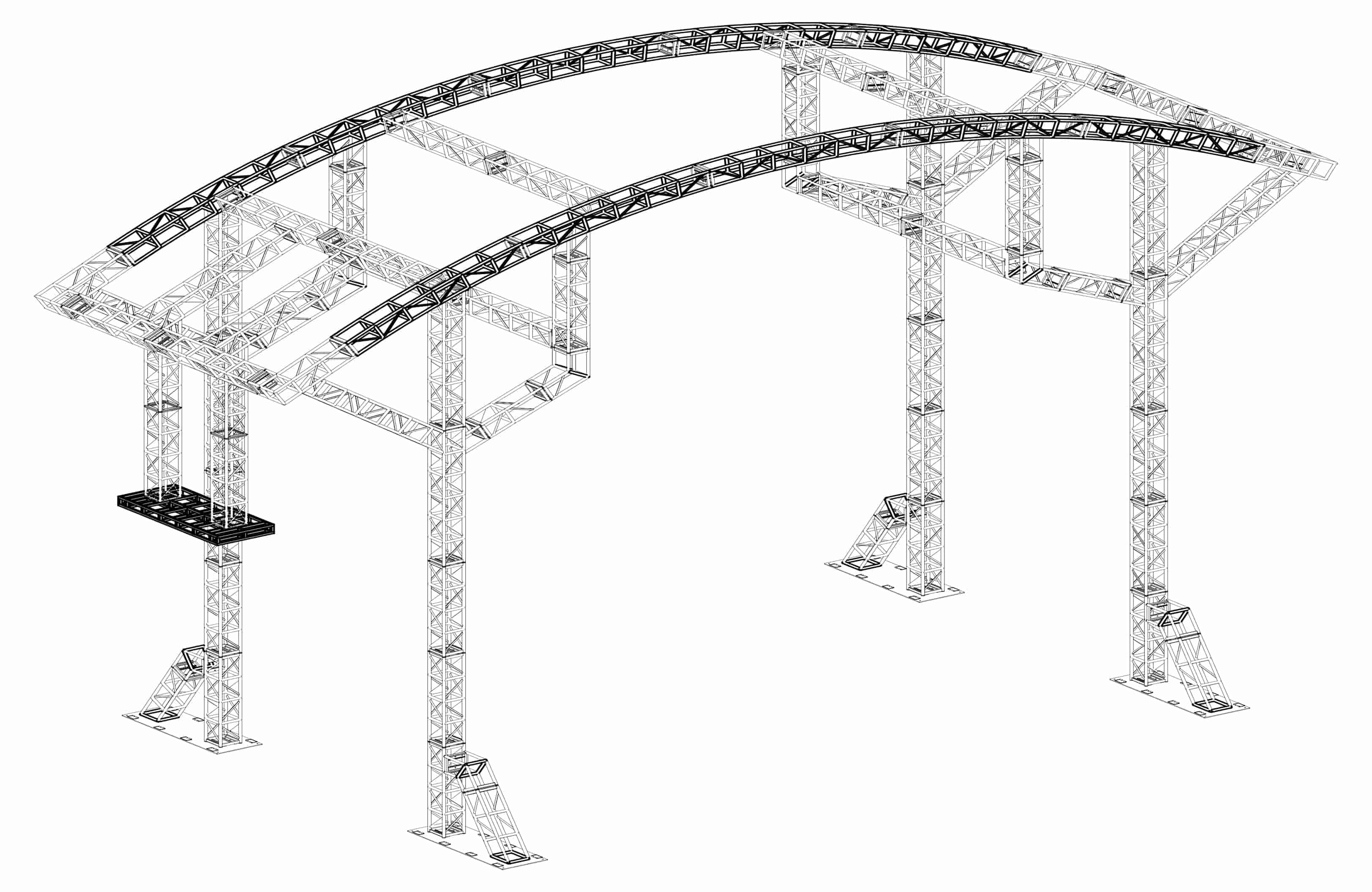

The whole Curved Bolt Truss Structure is designed in an arched shape, providing sufficient space for various high-altitude stunts, aerial acrobatics, and other performances. The trusses are connected by bolts, which provide a solid structural support for the fixed installation. The structure is able to meet the requirements of daily circus performances.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |
400×400mm (4-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*2.0mm |
|
Vice Tube |
⌀20*2.0mm |
|
Brace Tube |
⌀20*2.0mm |
Fabrication Procedure

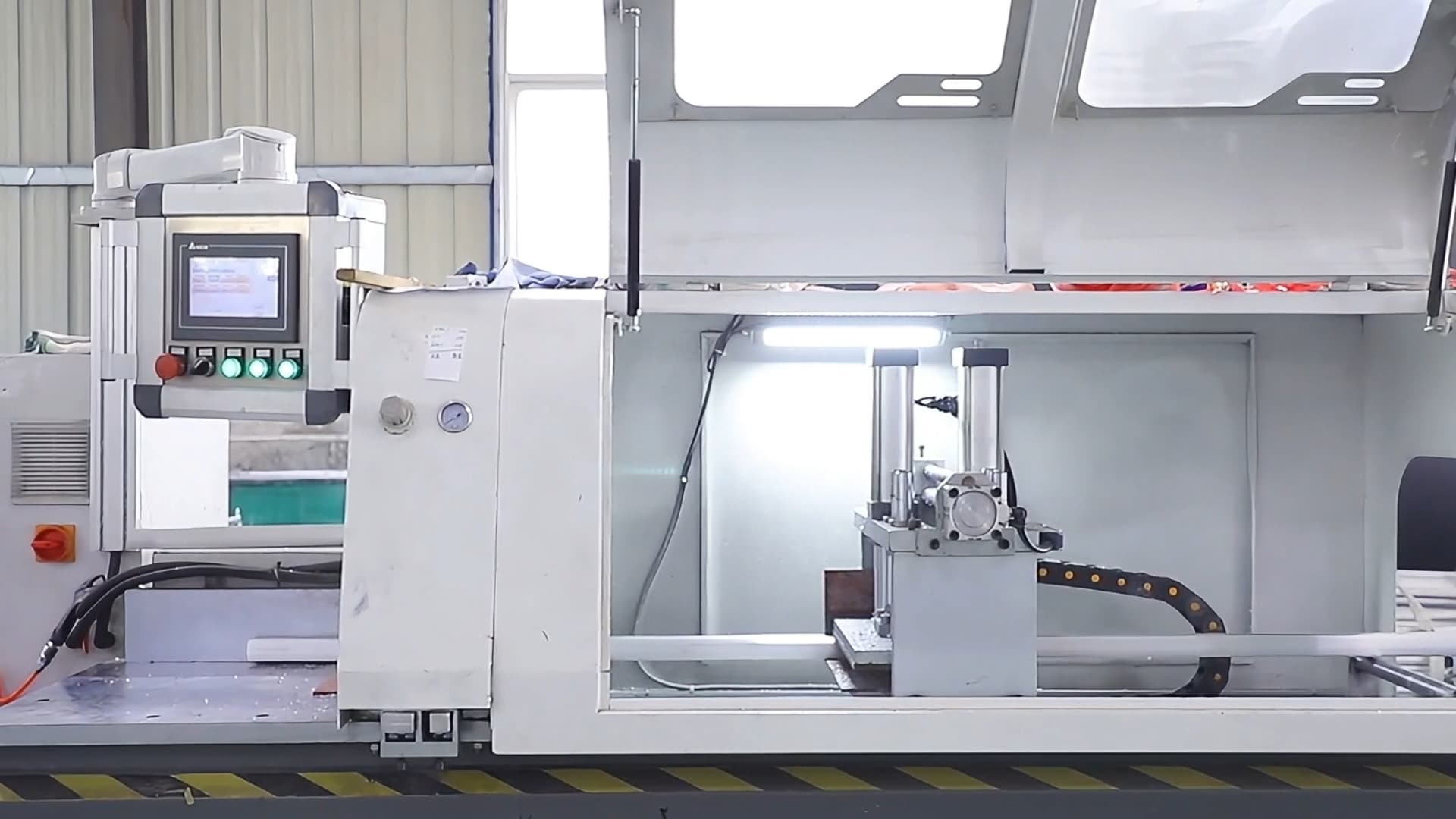

Precision Cutting
The quality of our trusses starts with precise cutting. Unlike manual cutting, which can be slow and inaccurate, we use an advanced automated cutting machine. This machine can cut every tube automatically with incredible accuracy, down to the millimeter. This means there's zero room for human error, and every single part is exactly the same size.
Precision Welding Process
Welding has a great influence on the total load-bearing capability of the truss. Our welding process is carried out by a team of highly experienced and certified welders. With their superior expertise, they ensure that each weld is full and even. Not only does this increase the load-bearing capacity of the trusses but also ensures they do not disintegrate due to fatigue or external forces during long-term usage.
Protective Coating

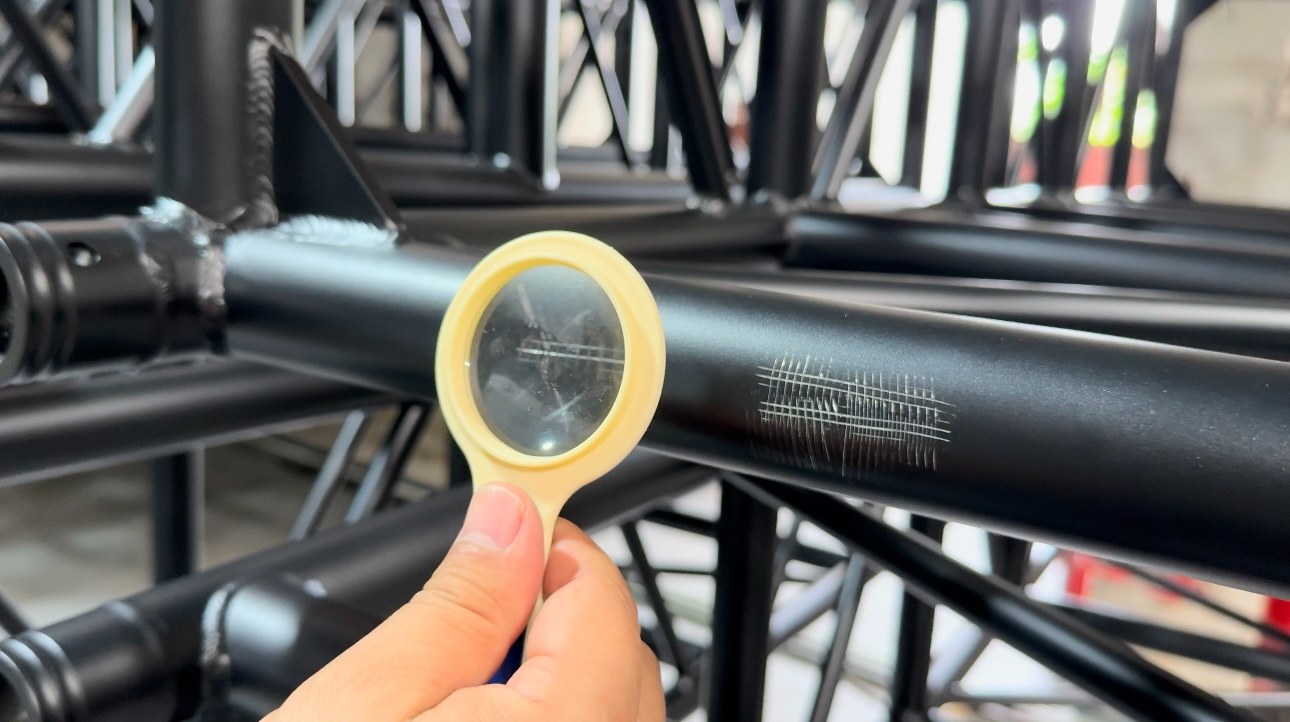

Our trusses can be coated that keeps them looking nice for a long time. To prove how well it sticks, we put it through a rigorous cross-hatch test. We use a blade to create a grid on the surface. Even after cutting, the coating remains firmly attached. It won't peel or flake off, which ensures the finish will last and keep your truss protected for years.
Our Services
Custom Solution Design
GF-Truss works with you to understand what you need for your space, weight, and budget. We are more than just a truss supplier. We can also provide a complete solution for your project. We then create a plan that ensures your structure is safe and perfect. This service turns your ideas into a real design.
Custom Truss Shapes
Trial Build & Test Service

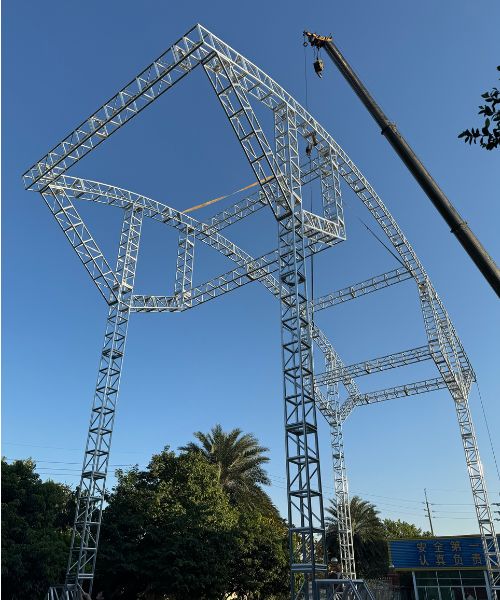

Before we ship your order, we can set up your truss system at our facility. This can make sure whether all the parts fit together perfectly. It gives you peace of mind and ensures a smooth and rapid setup on your project site.
 |

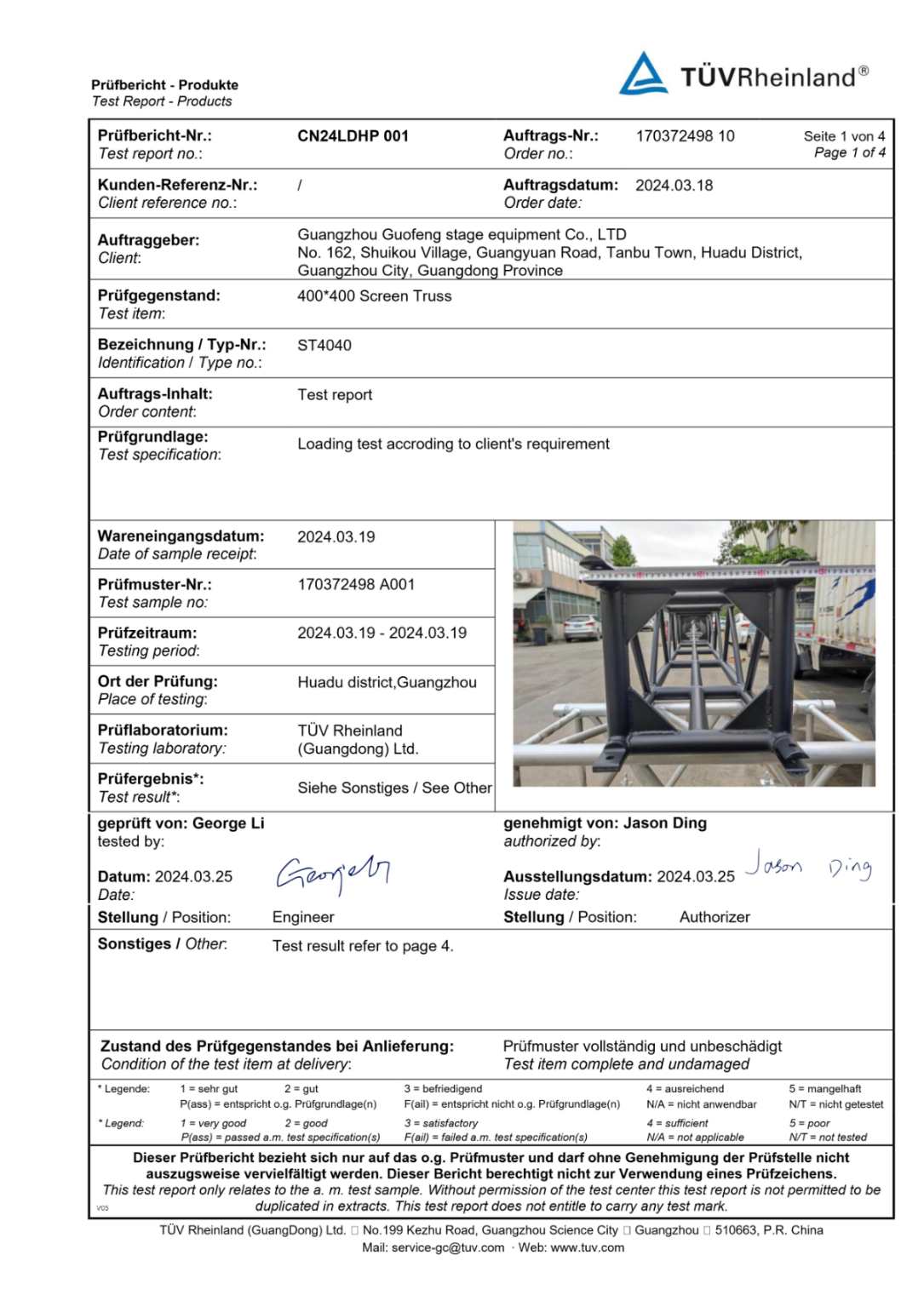

Your project's success depends on the safety and reliability of your trusses.That's why our 400x400mm Bolt Truss isn't just a claim—it has been independently tested and approved by TÜV Rheinland, a worldwide leader in safety and quality.
In a demanding test, a single 12-meter section of our truss was loaded with 840 kg—that’s roughly the weight of a small car. Even with all that weight, it only bent a tiny bit (just 46 mm) and showed no signs of breaking or collapsing.
This isn't just about passing a test. It's about giving you total peace of mind. It’s about knowing you have a support system that offers superior stability and dependable protection for your valuable gear. Your projects deserve the best—and with our TÜV-approved performance, you can be completely confident in every setup you choose. |
This structure featuring a bolt truss frame with a 400*400mm cross-section.This structure consists of 6 columns, 3 beams, and 3 arched diagonal beams. The design focuses on load-bearing capacity and stability, with beam capable of supporting a maximum load of 800kg, making it ideal for heavy-duty applications and large-scale equipment.
