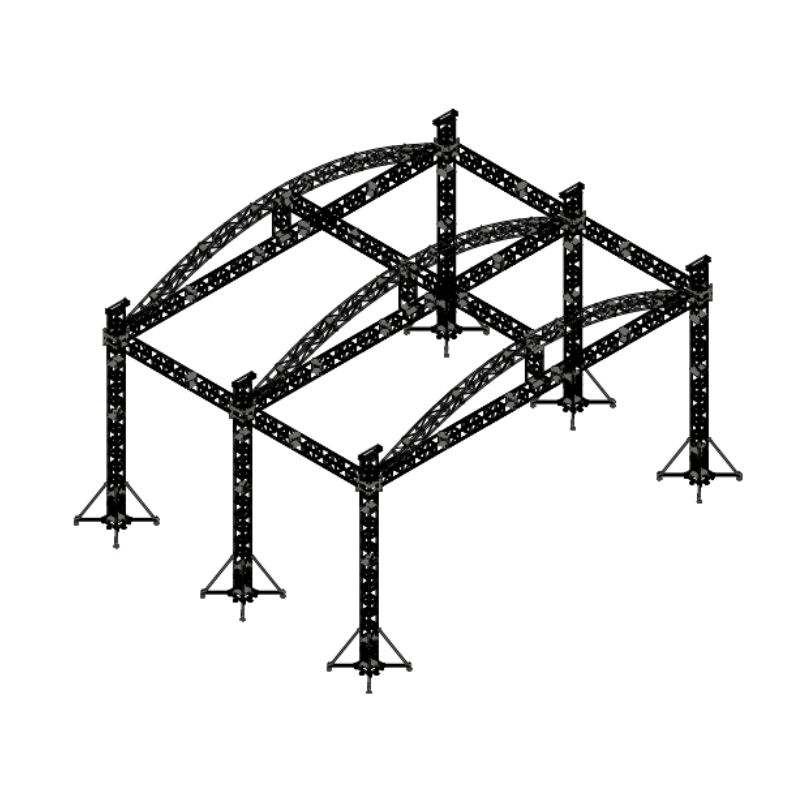

This structure featuring a bolt truss frame with a 400*400mm cross-section.This structure consists of 6 columns, 3 beams, and 3 arched diagonal beams. The design focuses on load-bearing capacity and stability, with beam capable of supporting a maximum load of 800kg, making it ideal for heavy-duty applications and large-scale equipment.
Item No :
S400Connection :
BoltsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingProduct Introduction

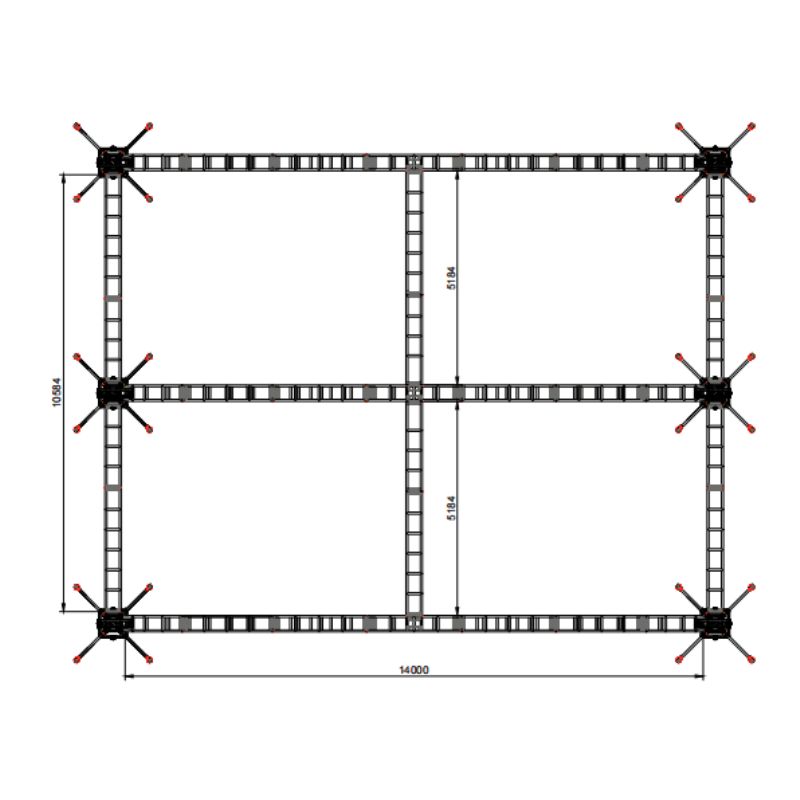

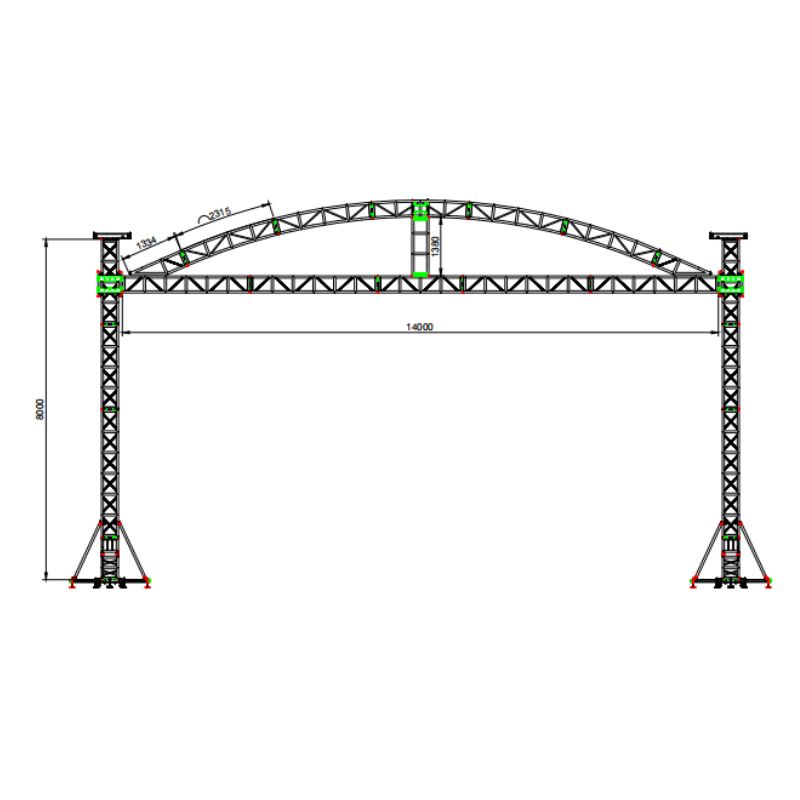

Line Array Arc Roof Aluminum Box Truss System 14*10*8m

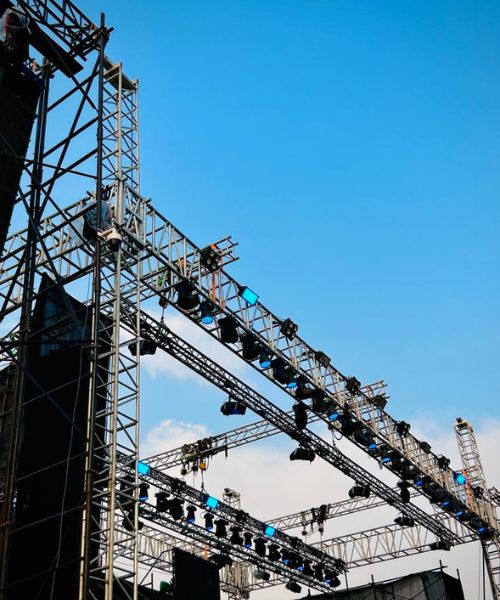

The project is a 14 x 10 x 8 m line array box truss structure. The design combines an arc-shaped roof and a line array hanging function to meet the demand of sound reinforcement for large-scale performances. The structure is widely used in outdoor performances, music festivals, live concerts, and large events. It supports multi-point hanging and quick setup.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |
400×400mm (2-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*3.0mm |
|
Vice Tube |
⌀50*2.0mm |
|
Brace Tube |
⌀25*2.0mm |
Fabrication Procedure
CNC Cutting

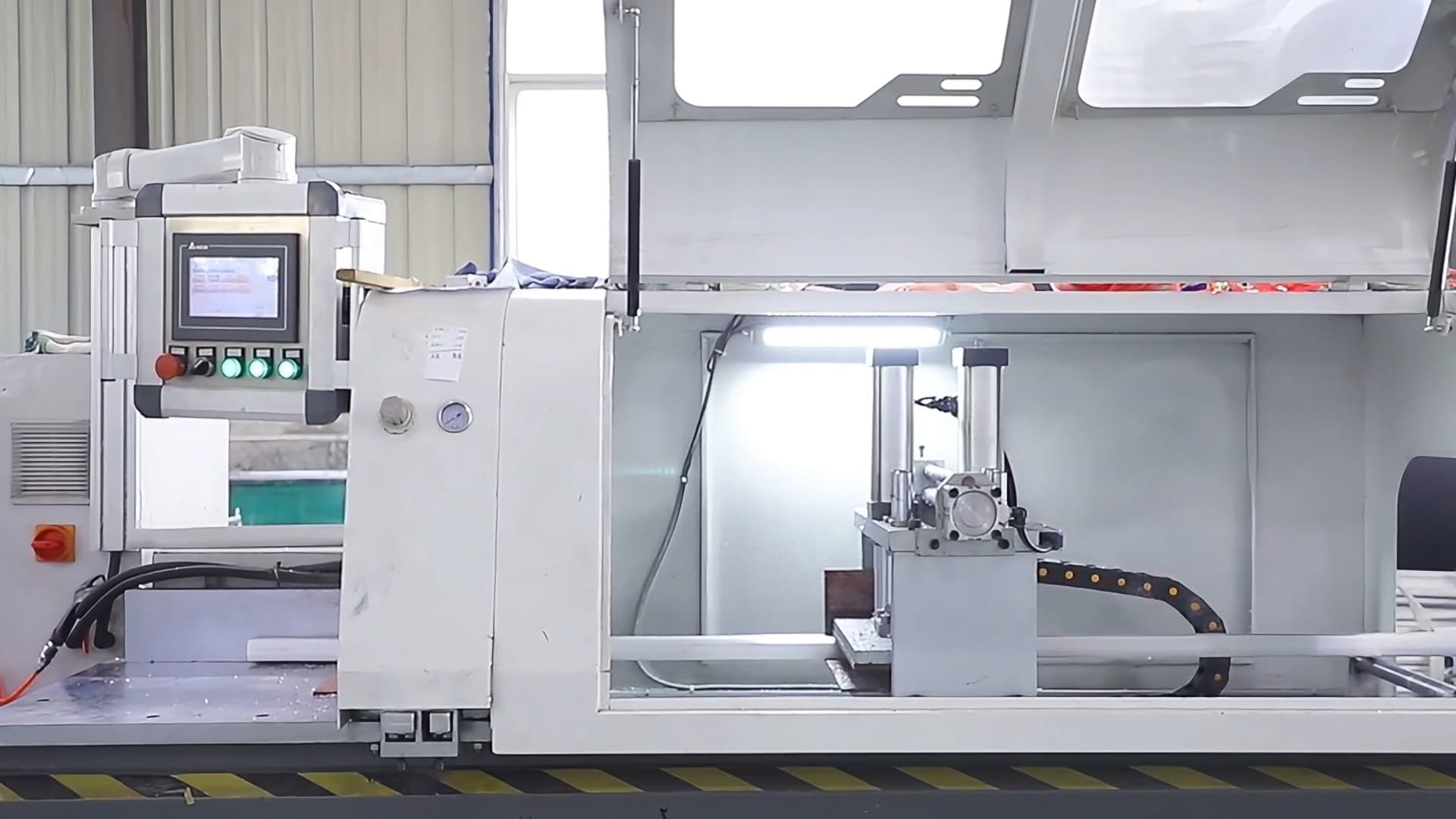

We use advanced, computer-controlled machines to cut our raw materials with incredible accuracy. CNC technology eliminates human error, allowing us to achieve exact dimensions and smooth edges every single time. It uses computer-controlled programs to cut each aluminum tube and plate with millimeter-level accuracy. CNC machining allows us to ensure what we deliver is not just sturdy and dependable but also made to the highest standards of quality.
Automatic Welding

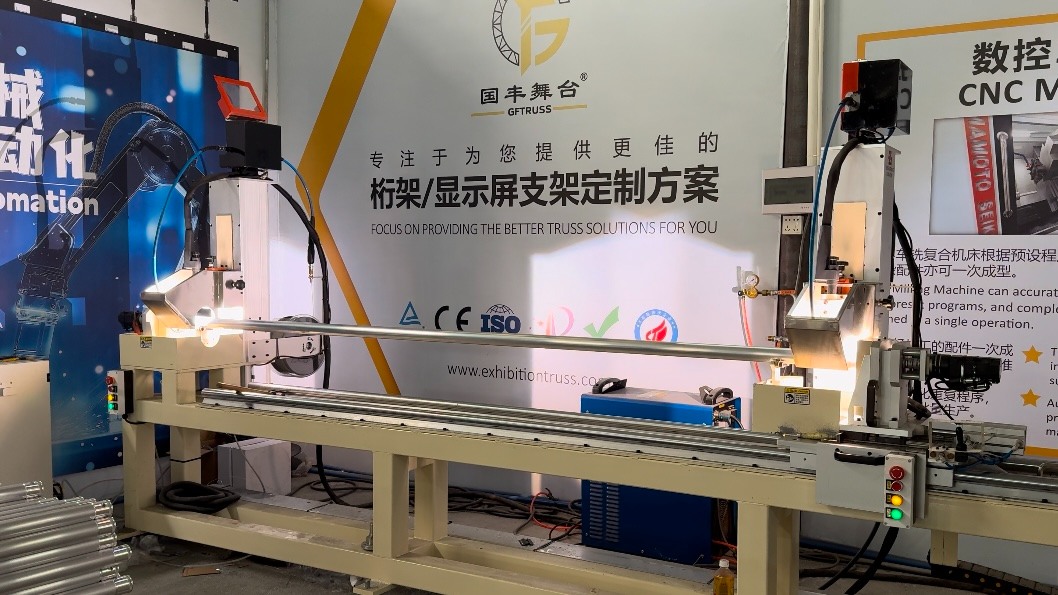

After cutting the aluminum tubes, the following step is to unite them using automated welding. We use automatic welding machines to make precise and even welds on every joint of our trusses. This process can make strong and consistent connections of the trusses, making the structure more durable. It also improves the load-bearing strength and keeps the trusses stable, even in tough conditions.
Powder Coating

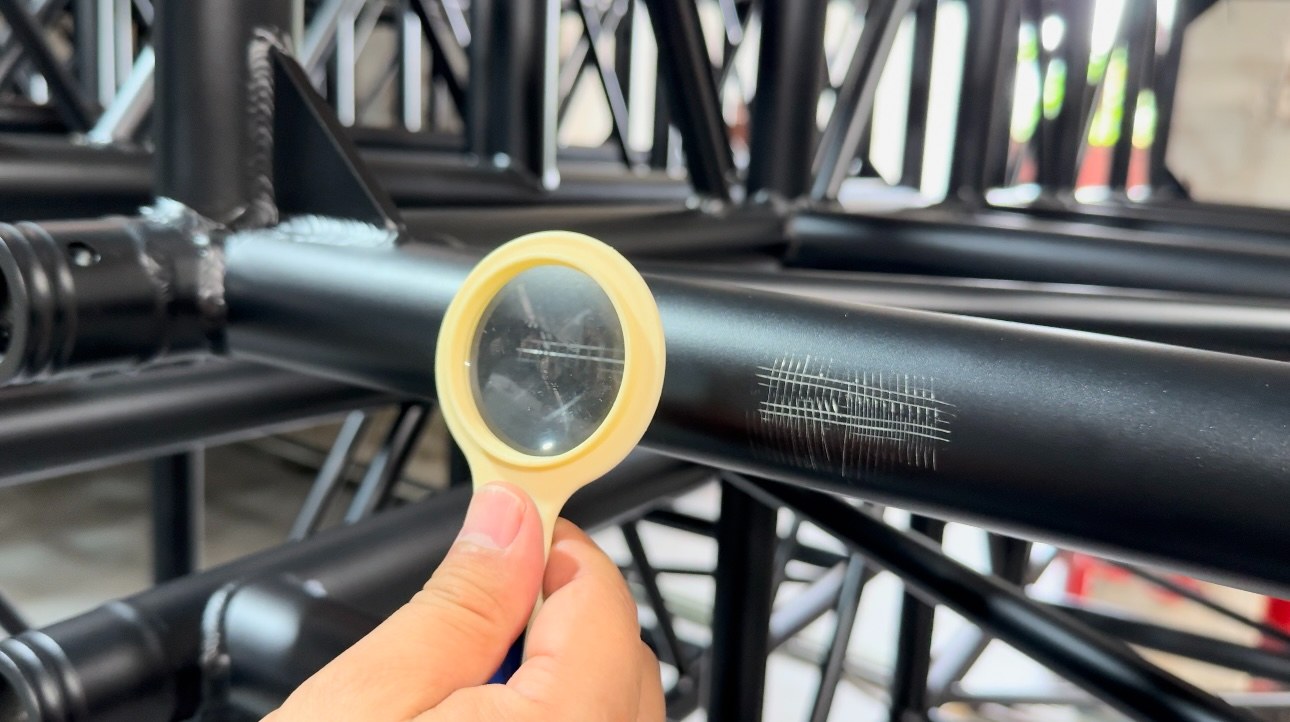

Powder coating not only enhances the appearance of our products, but it also coats them with a strong layer of protection. This makes our aluminum trusses suitable for both indoor and outdoor use, even under demanding weather conditions. We use the cross-hatch test to confirm the coating's endurance. As we can see in the image, the coating adheres strongly and won’t chip or flake. This test guarantees that the finish on our products is not just on the surface but is part of the product itself.
Our Services
Laser LOGO

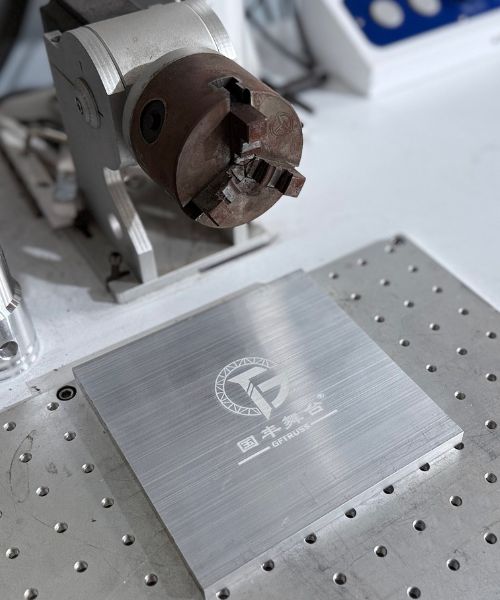

Looking for a way to add a personal touch to your product? We offer laser logo services to customize your trusses, stages, and barriers. Unlike regular stickers or paint, laser-marked logos are permanent. It gives you a clean, precise finish that won't fade or peel over time. It's a nice way to highlight your brand and keep your equipment organized.

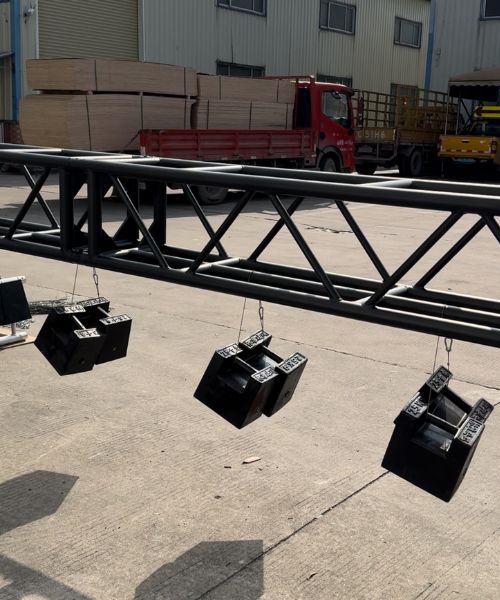

TÜV Load Test
Trial Build & Test Service
We provide a Trial Build & Test Service. Before the main event, we can build a section of your truss structure at our factory, following your exact design plans. This lets us find any potential issues with assembly, or the structure itself ahead of time. That ensures your on-site setup will be fast and safe. This service can lower your project's risk, ensuring your structure goes exactly as planned.
This structure featuring a bolt truss frame with a 400*400mm cross-section.This structure consists of 6 columns, 3 beams, and 3 arched diagonal beams. The design focuses on load-bearing capacity and stability, with beam capable of supporting a maximum load of 800kg, making it ideal for heavy-duty applications and large-scale equipment.
Read More
This flat roof truss structure is composed of a 24*12*12.5m truss structure combined with a canopy structure, which is used for indoor and outdoor commercial performances. After completing the production, we conducted a TUV load testing of 24m beam and a trial assembly of the structure for two days.
Read More
This 18m*5m*12m curved truss structure is customized for acrobatic performances. According to the customer's requirements, the left side of the structure must be 60cm higher than the right side, and the hanging parts on both sides must be 8m apart.
Read More
This is a four-sided screen hoisting system consisting of 8*8m and a 6.5*6.5m square truss structure and electric hoists, designed specifically for stadium events. The slanted design provides better viewing angles, making it easier for the audience to watch the sports games. The electric hoisting system enables the structure to be raised and lowered in parallel, ensuring the screen remains stable during operation.
Read More
