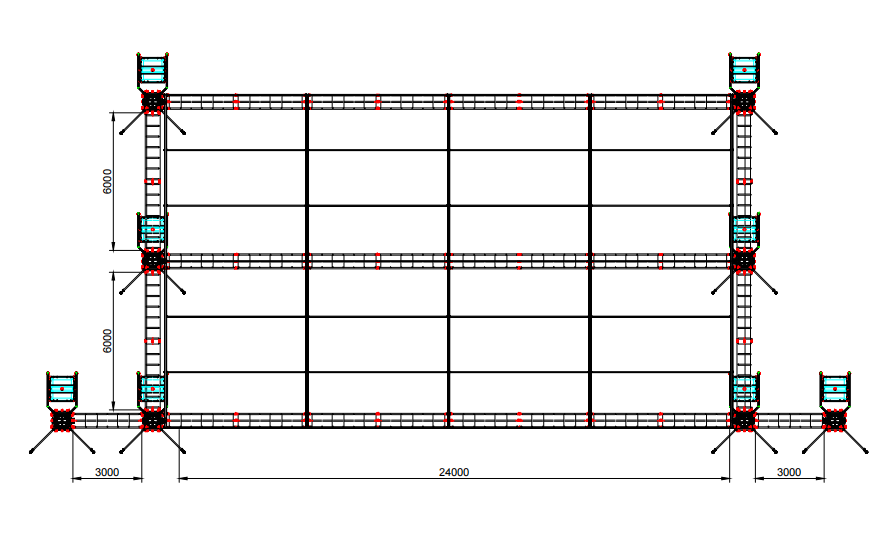

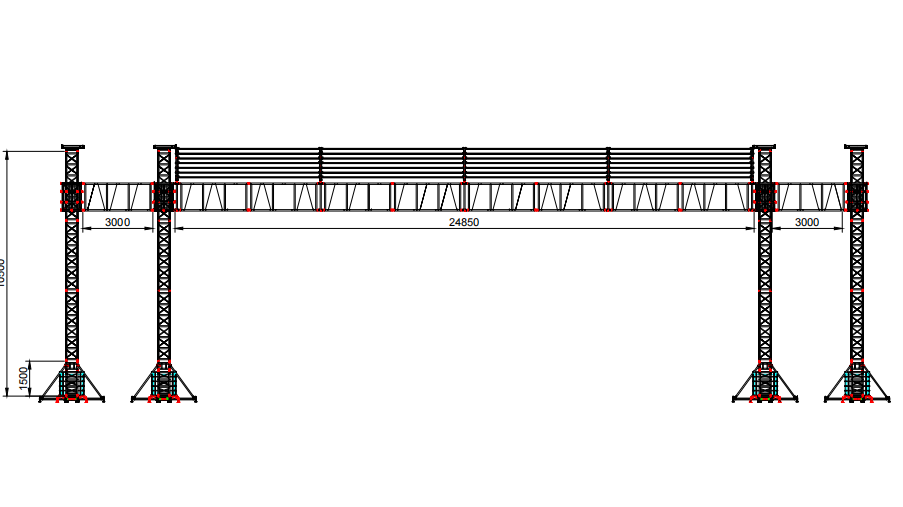

This flat roof truss structure is composed of a 24*12*12.5m truss structure combined with a canopy structure, which is used for indoor and outdoor commercial performances. After completing the production, we conducted a TUV load testing of 24m beam and a trial assembly of the structure for two days.
Item No :
V6512Connection :
Pins, R-clipsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingProduct Introduction
Heavy-duty Aluminum Flat Roof Spigot Truss Structure 24*12*12.5m

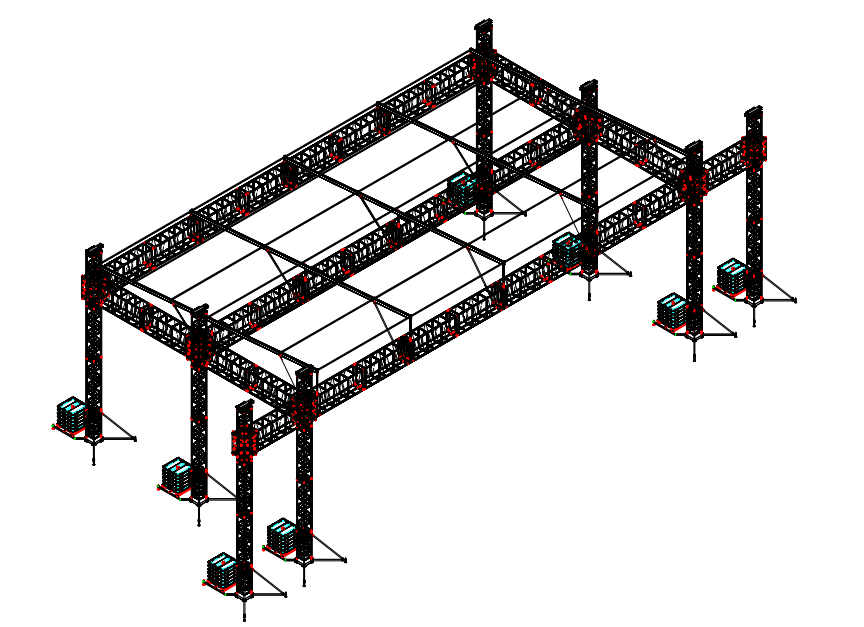

This is a set of large flat roof truss with 500*500mm columns and 650*1200mm beams. 650*650mm beams can easily carry line array sound systems, large LED screens, and lighting equipment. This Heavy-duty Aluminum Truss System is suitable for large-scale or outdoor fixed constructions that require heavy-duty suspension capability, ensuring reliability and durability for long-term use.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |
650×1200mm (2-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀60*5.0mm |
|
Vice Tube |
⌀50*4.0mm |
|
Brace Tube |
⌀40*3.0mm |
Our Services
Laser LOGO
GF-Truss uses advanced laser technology to print your brand name, company logo, or custom markings directly onto your trusses. This powerful laser permanently etches your logo into the surface. This makes sure your logo is incredibly clear and durable and won't wear away, fade, or be affected by bad weather.
TÜV Load Test
Trial Build & Test Service

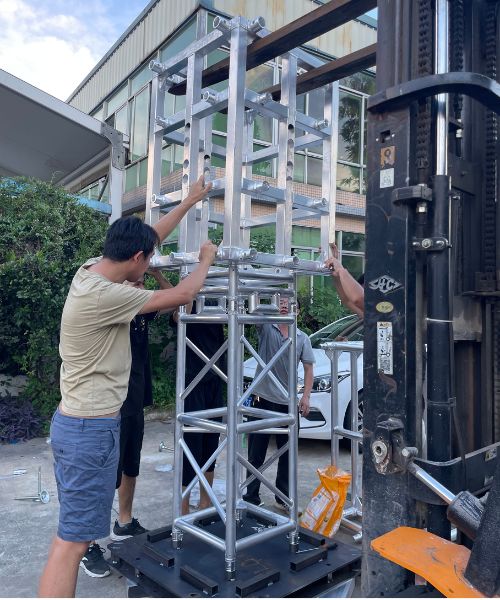

We provide a complete trial assembly service to make sure your truss structure fits perfectly and works as it should. Your truss system can be pre-assembled according to your needs. This hands-on process allows us to inspect every connection and component, ensuring all pieces fit together seamlessly before they leave our factory. This process makes sure your actual installation goes smoothly, saves time, and helps you avoid any problems.
Successful Deployment

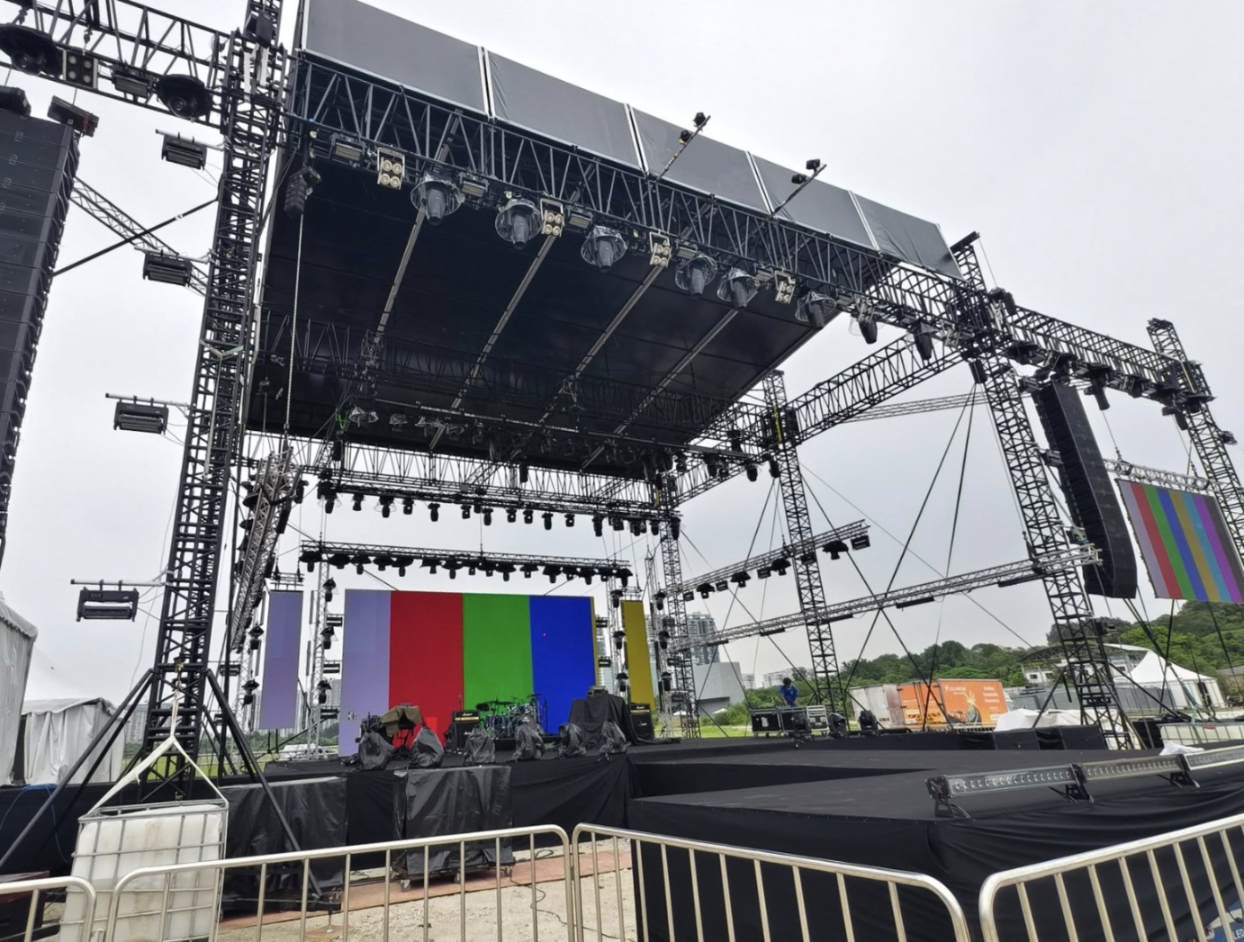

As shown in the image, this system was successfully used at an event site in Malaysia. This 24×12×12.5 m Heavy-duty Aluminum Flat Roof Truss System is perfect for large events that require exceptional strength and stability. The cross-section of the truss measures 650×1200 mm, and all the trusses are coated in sleek black for a premium look. The spigot connection system ensures precise alignment and effortless setup, delivering maximum rigidity without unnecessary weight. Its modular flat-roof construction offers outstanding adaptability, making it ideal for complex event setups.
 |

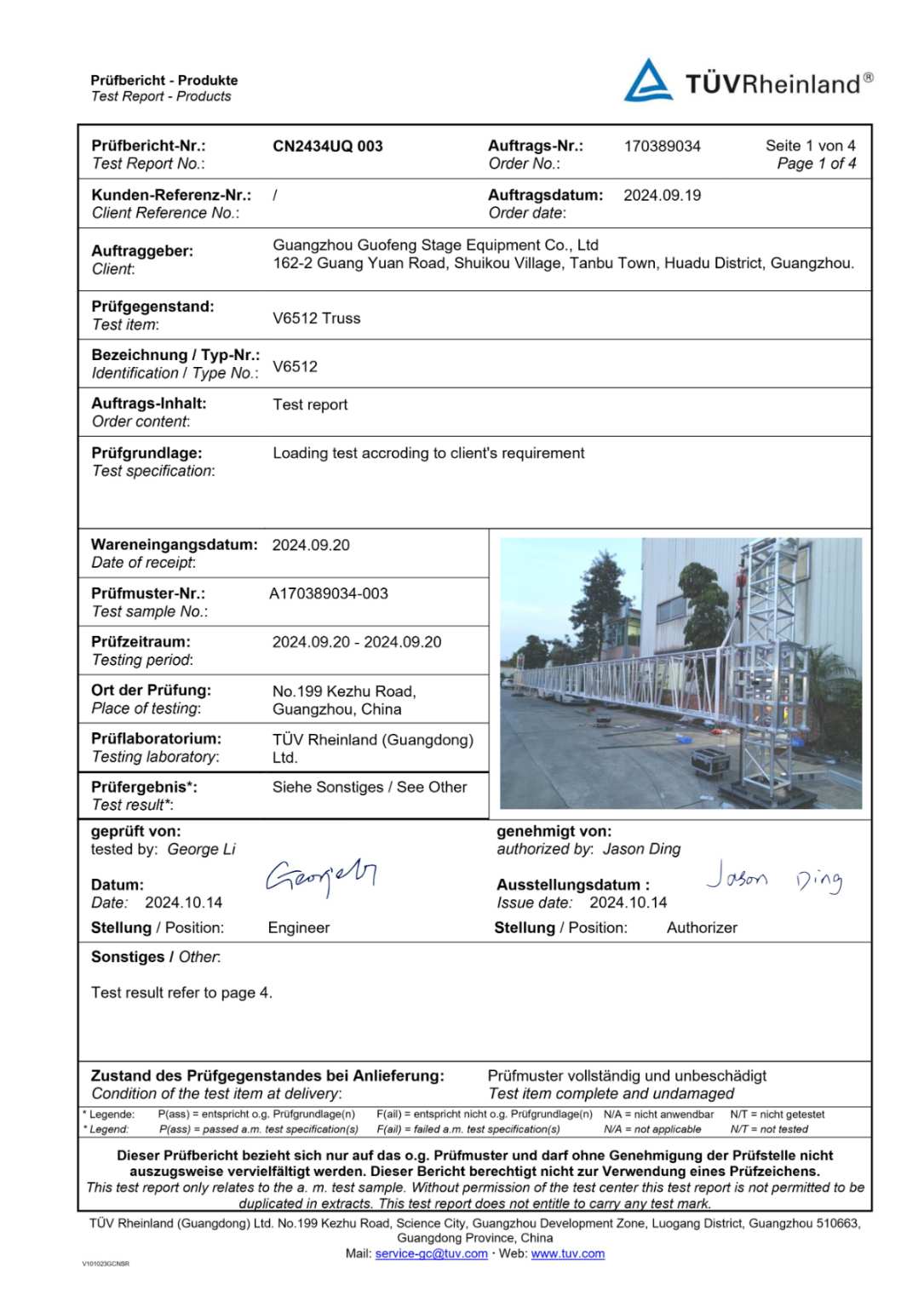

Our safety promise is not simply a statement. It's supported by an independent, third-party authority. Our V6512 truss has successfully passed a rigorous load-bearing test conducted by TÜV Rheinland, a well-known certification company. In the challenging test, a 24-meter section of our truss safely supported a weight of 4,576 kg. Importantly, there was no damage or collapse throughout the entire test. This outcome demonstrates that our truss is not only incredibly strong but also completely reliable. When you choose our system, you're not just purchasing a product. You're also investing in certified safety for your valuable equipment. This allows you to feel completely confident and at ease with every project. |
