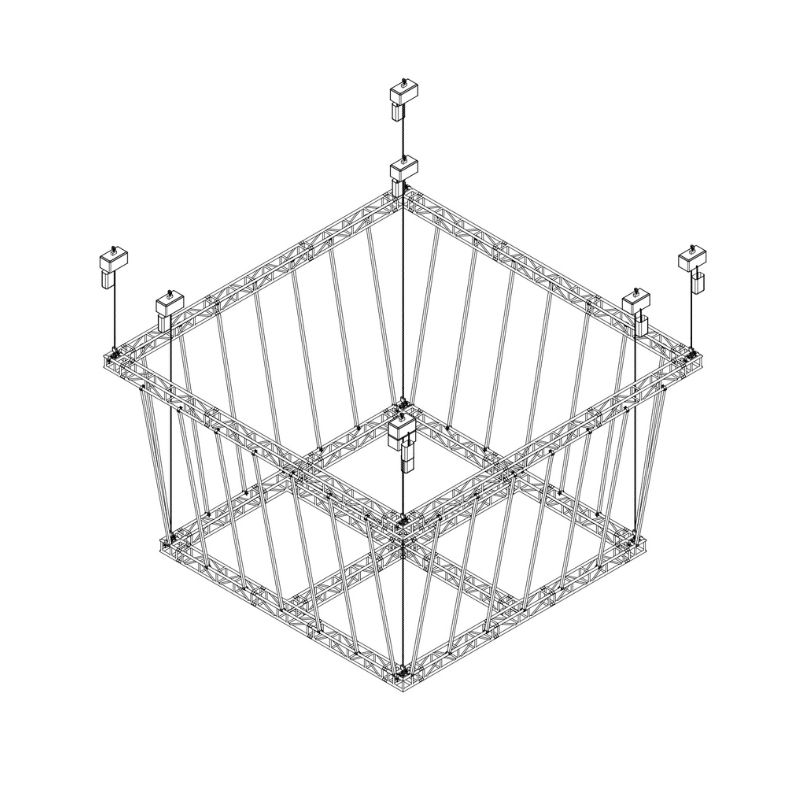

This is a four-sided screen hoisting system consisting of 8*8m and a 6.5*6.5m square truss structure and electric hoists, designed specifically for stadium events. The slanted design provides better viewing angles, making it easier for the audience to watch the sports games. The electric hoisting system enables the structure to be raised and lowered in parallel, ensuring the screen remains stable during operation.
Item No :
V6512Connection :
Pins, R-clipsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingProduct Introduction

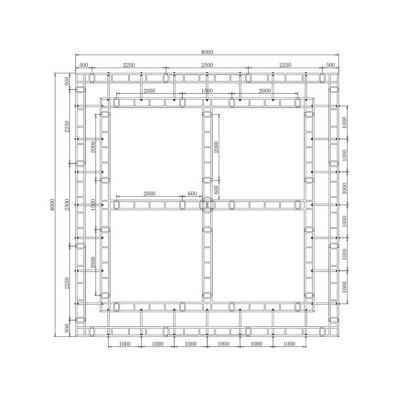

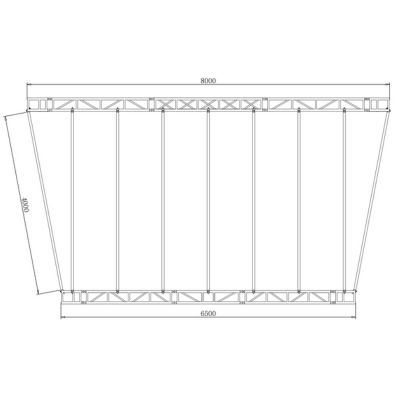

Square Ceiling Screen Aluminum Truss Structure 8*8m
This is a truss structure specially designed for four-sided LED screens in stadiums. The whole structure is made of high-strength aluminum alloy with excellent load-bearing performance and structural stability. The structure is very suitable for basketball, volleyball, and other indoor venues. It can significantly enhance the audience's immersive viewing experience.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |
400×400mm (2-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*3.0mm |
|
Vice Tube |
⌀50*2.0mm |
|
Brace Tube |
⌀25*2.0mm |
Fabrication Procedure

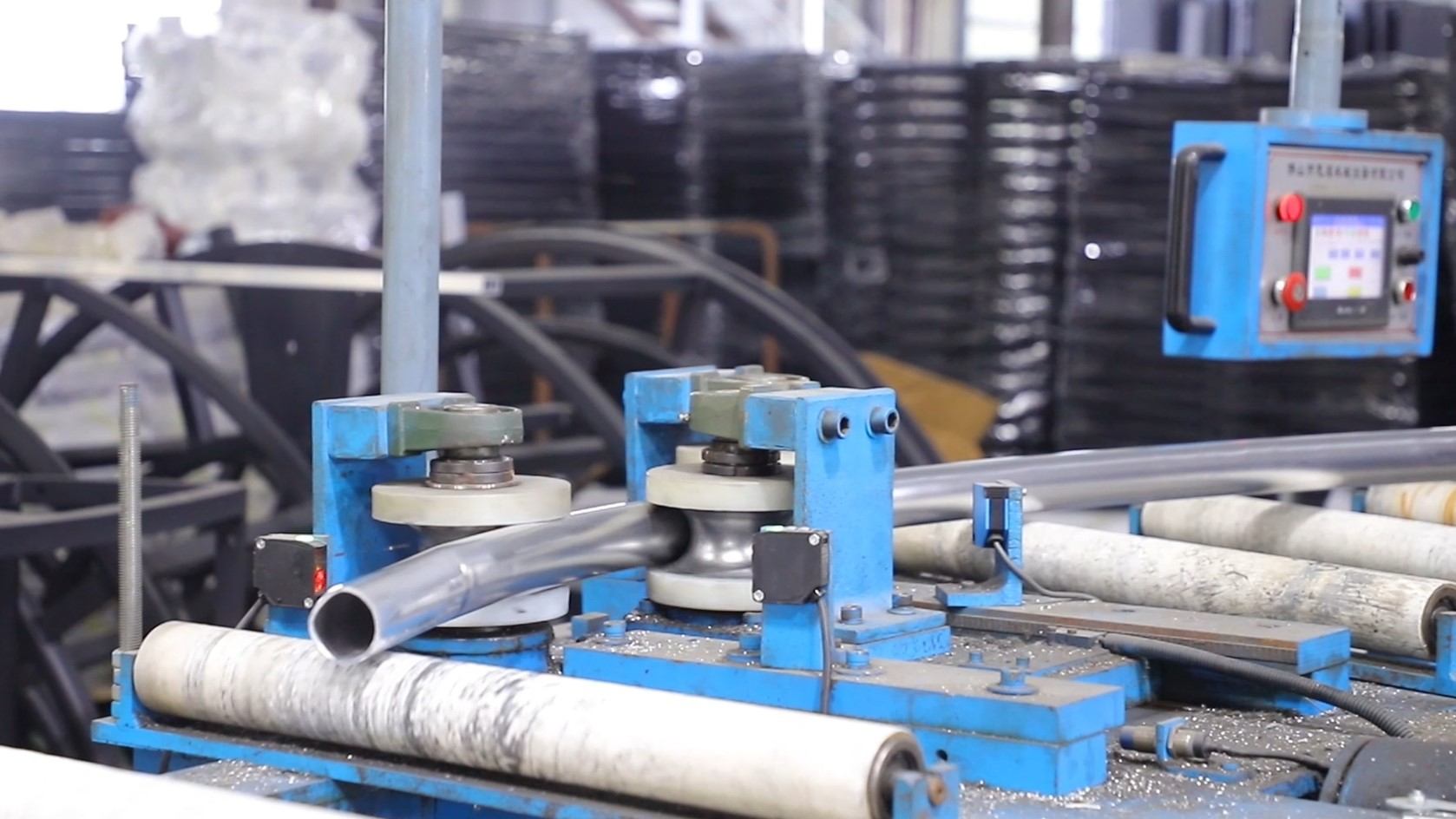

GF-Truss uses advanced bending machines to ensure every aluminum tube is bent to the exact angle required. The computer precisely controls the pressure and speed, which prevents cracks or damage to the tube's structure. This procedure preserves the initial strength and resilience of the aluminum alloy. This technology allows us to create trusses with smooth, uniform curves for arcs and other custom shapes.
CNC Machining

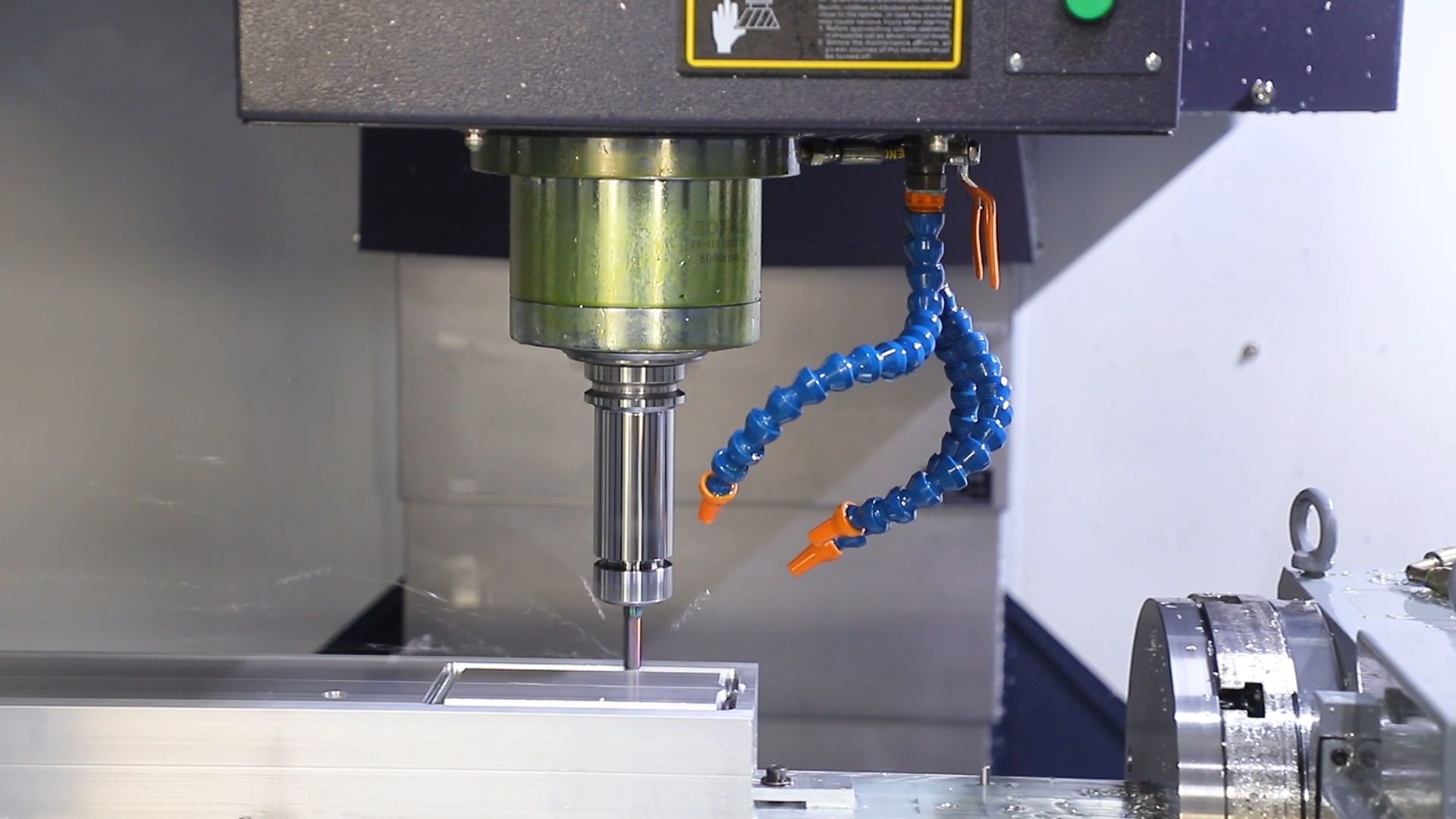

CNC machining enables us to perform high-precision cutting, drilling, milling, and other complex machining operations on aluminum alloy. The advantages of it are the unparalleled precision and consistency it delivers. The movement of the cutting tools is controlled by computer programs. This allows them to easily accomplish difficult and high-precision cutting that is hard to achieve with traditional processes.
Manual Welding

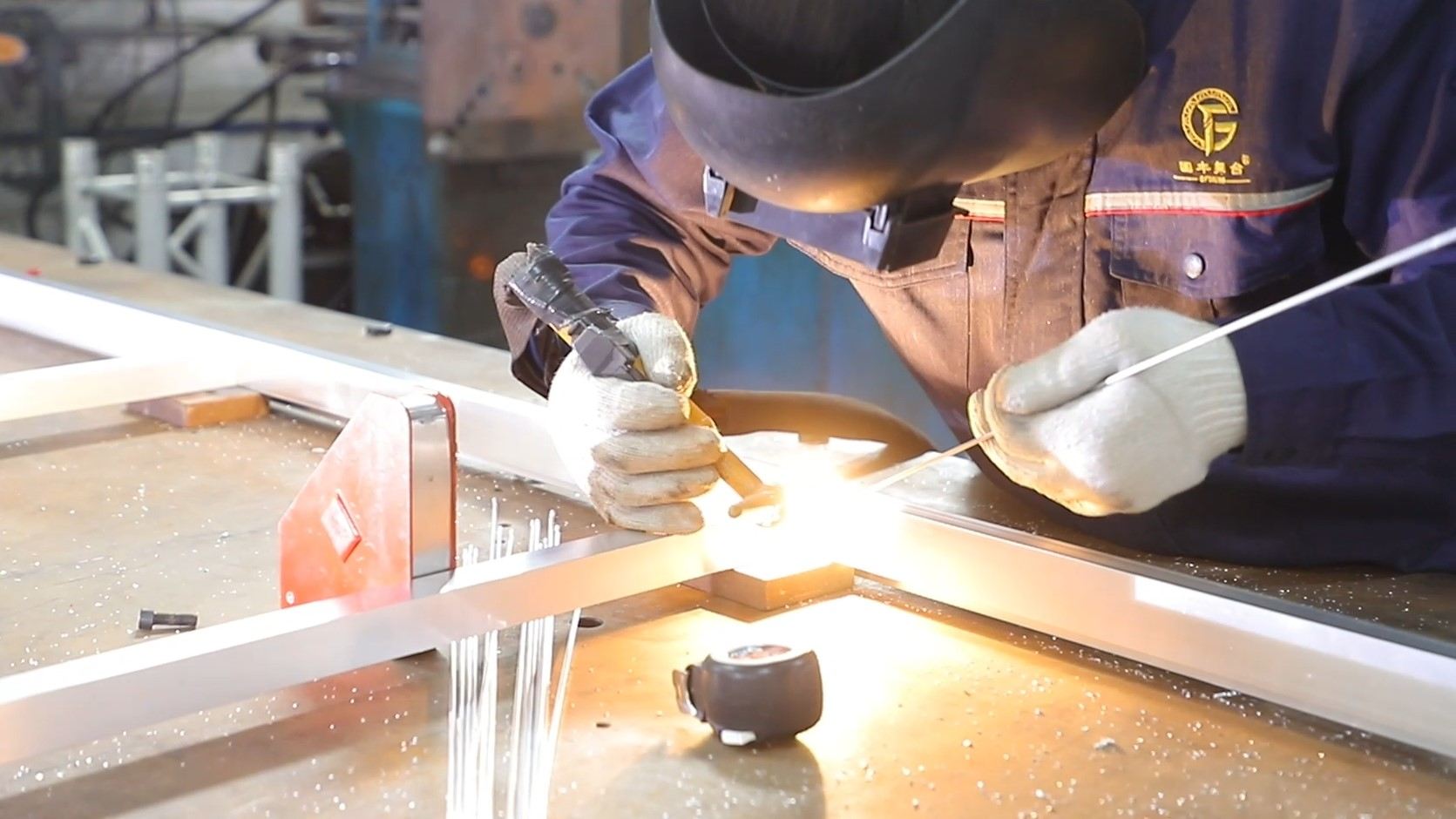

Even with our advanced automated equipment, manual welding is still the irreplaceable production process at GFtruss. Our welders are highly experienced workers who are highly experienced in the aluminum industry. They not only possess superb welding skills but also have a deep understanding of the properties of aluminum alloys.
Successful Deployment

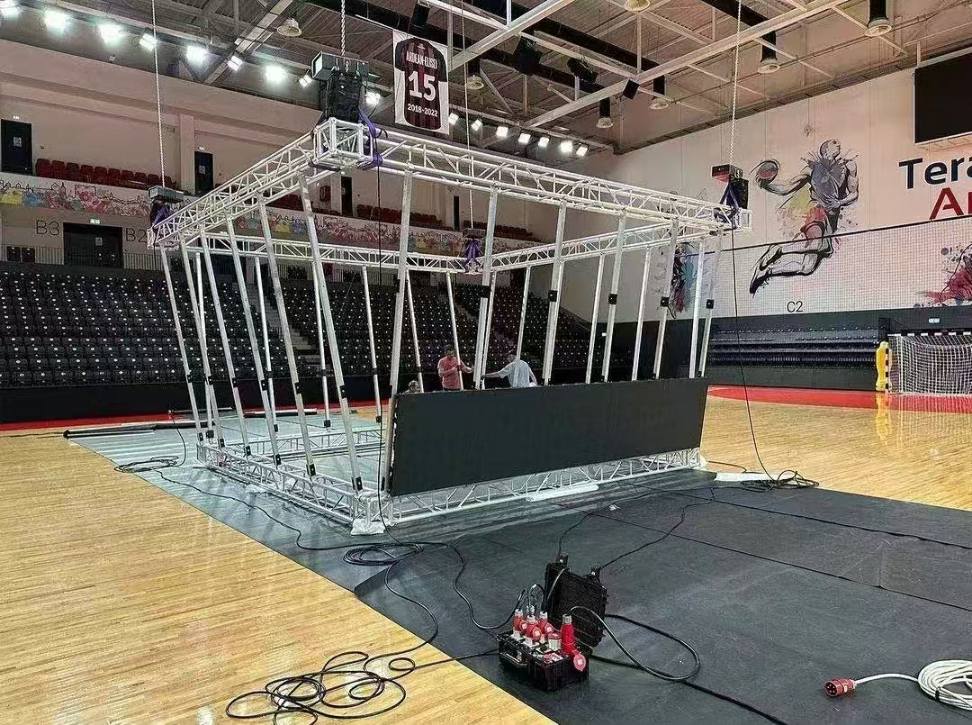

As shown in the image, this is our four-sided ceiling screen aluminum truss structure. Especially ideal for events that require a clear view from every angle, this structure is designed to seamlessly integrate large LED screens for an immersive audience experience.
Its unique trapezoid shape ensures full visual coverage and a better viewing experience for the audience. The main structure adopts high-strength 400x400mm pin-connected aluminum truss.
This rig is quite adaptable because it can work with different screen weights and sizes. From concerts and basketball games to major events, it offers a safe solution for a variety of requirements.
-
 |

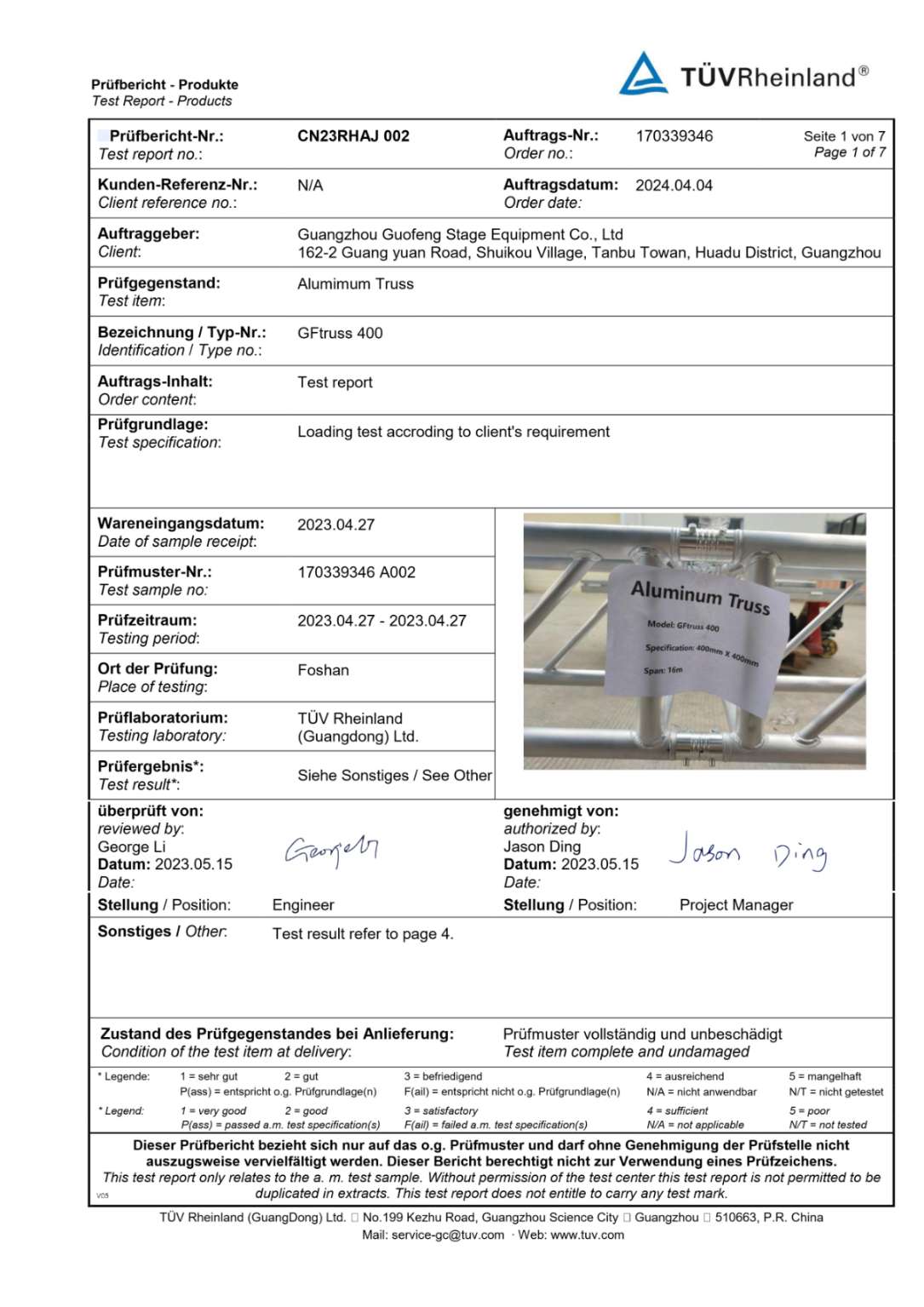

This document proves the superior quality of GFtruss's 400x400mm aluminum truss, confirming it meets international standards. The report's key data clearly shows the truss's exceptional load-bearing capacity across a 16-meter span. It performed reliably and maintained stability across various load tests in real conditions. When subjected to a Uniformly Distributed Load (UDL) of up to 800 kg, the maximum deflection was only 129mm. In a more demanding Center Point Load (CPL) test, the deflection was 126mm when bearing a 500 kg weight. All test reports explicitly note its superior structural strength and toughness. GF-Truss uses scientific data to assure you that this truss is fully capable of handling rigging and construction tasks for large-scale events, stage productions, exhibitions, and other professional settings, making it a safe and reliable choice. |
This structure featuring a bolt truss frame with a 400*400mm cross-section.This structure consists of 6 columns, 3 beams, and 3 arched diagonal beams. The design focuses on load-bearing capacity and stability, with beam capable of supporting a maximum load of 800kg, making it ideal for heavy-duty applications and large-scale equipment.
Read More
This flat roof truss structure is composed of a 24*12*12.5m truss structure combined with a canopy structure, which is used for indoor and outdoor commercial performances. After completing the production, we conducted a TUV load testing of 24m beam and a trial assembly of the structure for two days.
Read More
This 18m*5m*12m curved truss structure is customized for acrobatic performances. According to the customer's requirements, the left side of the structure must be 60cm higher than the right side, and the hanging parts on both sides must be 8m apart.
Read More
This is a four-sided screen hoisting system consisting of 8*8m and a 6.5*6.5m square truss structure and electric hoists, designed specifically for stadium events. The slanted design provides better viewing angles, making it easier for the audience to watch the sports games. The electric hoisting system enables the structure to be raised and lowered in parallel, ensuring the screen remains stable during operation.
Read More
