Outdoor events aluminum spigot 520×520mm truss is constructed of main tube(⌀50×3.0mm), vice tubes(⌀50×2.0mm) and brace tubes (⌀25×2.0mm). This Outdoor Events Aluminum Truss can suspend lighting at multiple points, along with LED screens and speakers. It is suitable for medium and large performance structures.
Item No :
V520Connection :
Pins, R-clipsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingAvailable Length :
500/1000/1500/2000/2500/3000/4000mmProduct Introduction
Events Custom Aluminum Stage Spigot Truss 520×520mm

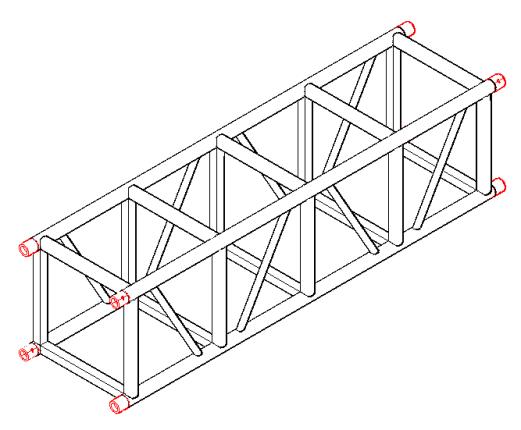

The aluminum stage spigot truss 520×520mm truss is made of high-strength aluminum alloy, ensuring excellent load-bearing capacity. It is recommended for spans of up to 16 meters. This truss features a pin-connection design for quick installation and efficient disassembly.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |

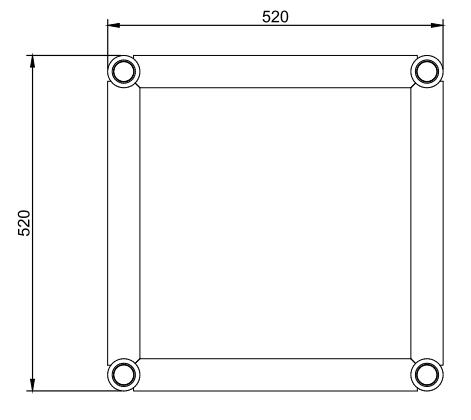

520×520mm (2-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*3.0mm |
|
Vice Tube |
⌀50*2.0mm |
|
Brace Tube |
⌀25*2.0mm |
|
Available Length |
500/1000/1500/2000/2500/3000/4000mm |
Fabrication Procedure
Material Selection and Cutting Preparation
Our automatic material cutting machine improves efficiency and accuracy during production. Once the specifications are set, the system measures and cuts aluminum tubes to the required lengths without manual intervention. This reduces waste and keeps every piece uniform, which is critical when assembling large truss structures.

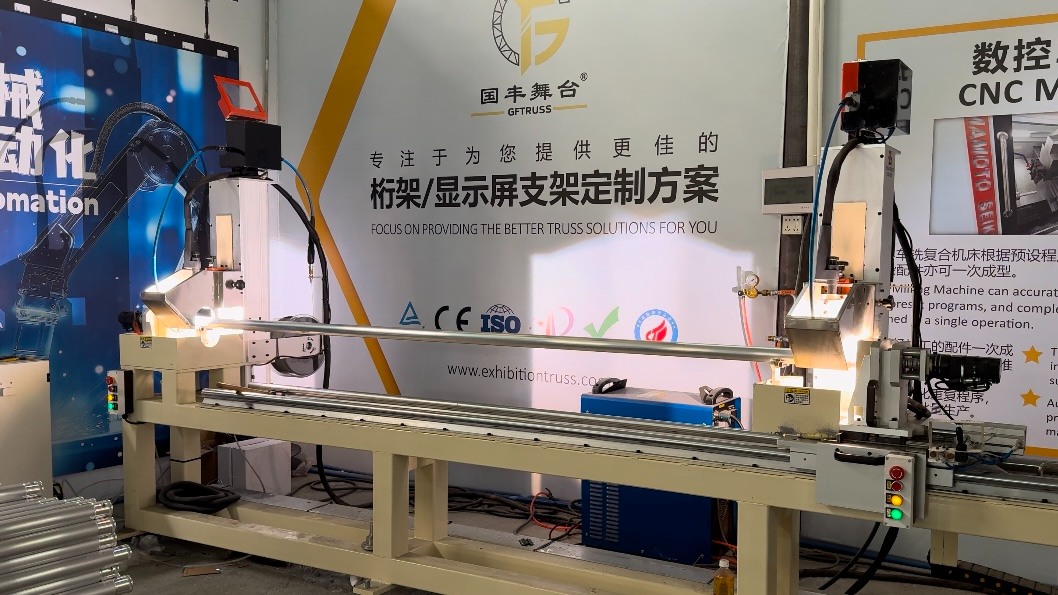

Tube Welding
The aluminum tube welding machine is designed to provide robust, uniform welds on single aluminum tube . With automated welding, it ensures that every connection is uniform and free from weak points. It also works faster, making it ideal for high-volume production while maintaining reliability. After welding, each tube will be inspected to check its quality.
Powder Coating

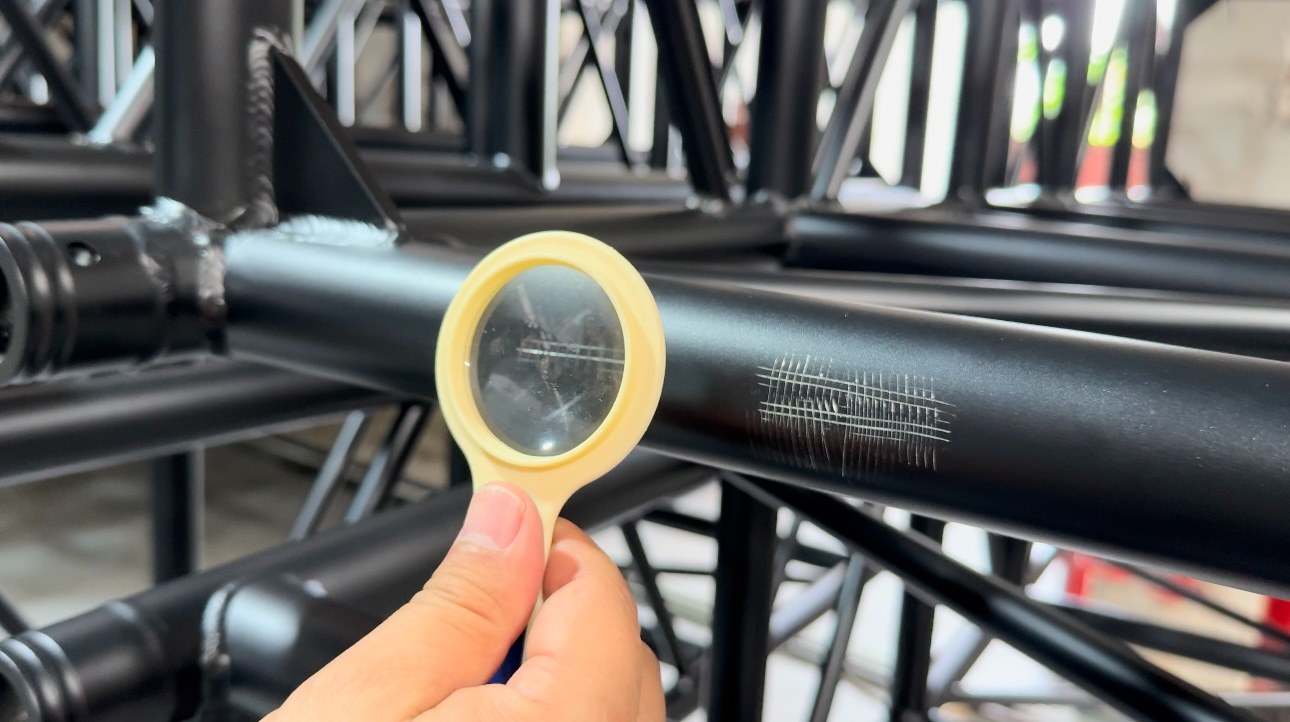

All GF-Truss products are shipped in their natural aluminum finish. If you prefer a black finish , we offer professional powder coating services upon request. During the coating process, a fine layer of powder is sprayed evenly onto the aluminum surface. The coated parts are then baked at high temperatures in a controlled oven, allowing the powder to melt and bond tightly with the aluminum. Even if the truss surface gets scratched during use, the coating stays attached and does not peel or flake off.
Quality Assurance
|

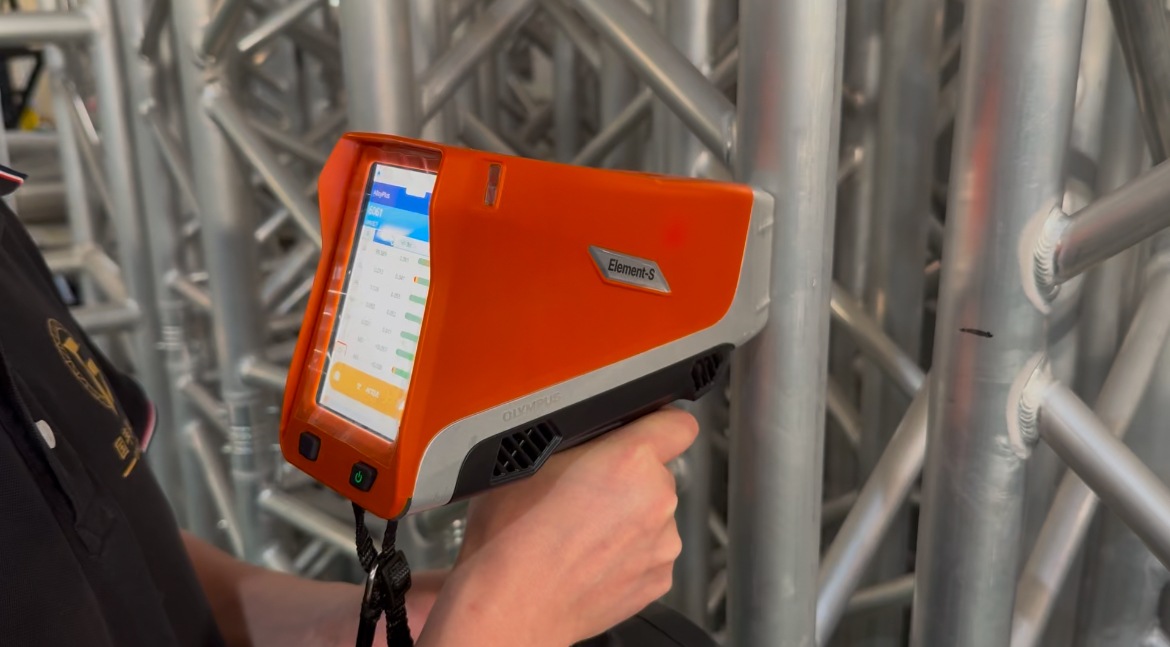

We always put material quality first, making sure every truss meets our strict standards. Each aluminum truss we manufacture undergoes rigorous testing to comply with our stringent standards. We use the Olympus XRF Analyzer to check the metal's composition accurately. Our testing can find even tiny amounts of impurities, ensuring our trusses are made from top-quality aluminum. We test each truss before it leaves our factory, as this is a key part of our quality assurance process. This step is part of our overall quality assurance approach. The XRF analyzer provides specific data on the composition of the aluminum, so we can be confident that it can perform well under real conditions. |
 |
