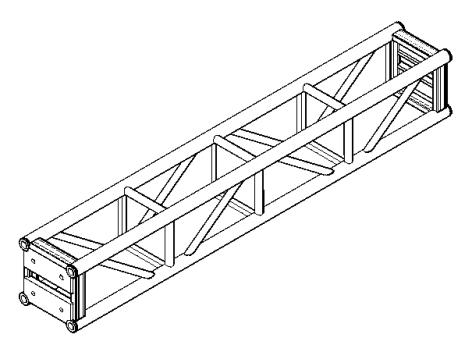

Aluminum 305*305mm box truss is constructed of main tube(⌀50×3.0mm), vice tubes(⌀50×2.0mm) and brace tubes (⌀25×2.0mm). The two ends are designed with two thick aluminum plates ensuring a more stable and reliable structure. The recommended load-bearing span is within 14 meters.
Item No :
L305Connection :
BoltProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingAvailable Length :
500/1000/1500/2000/2500/3000/4000mmProduct Introduction
High-strength Custom Lighting Aluminum Box Truss 305×305mm
Compared to standard box trusses, 305*305mm box truss has aluminum plates welded at both ends, which effectively enhances the stability of the connection parts. The overall structure is more solid and has better load-bearing performance. The square cross-section structure enhances the overall torsional resistance, making it suitable for medium to large performance stages and lighting suspension systems.
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |

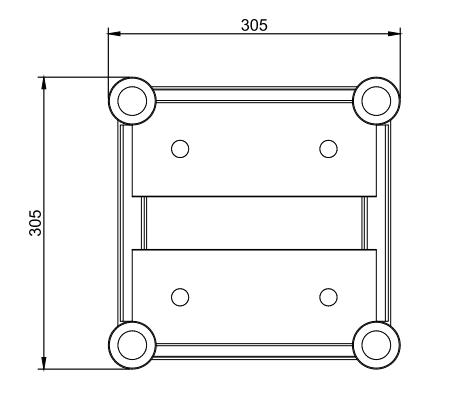

305×305mm (2-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*3.0mm |
|
Vice Tube |
⌀50*2.0mm |
|
Brace Tube |
⌀25*2.0mm |
|
Available Length |
500/1000/1500/2000/2500/3000/4000mm |
Product Advantage
Built Tough with Premium Aluminum
One Truss, Countless Possibilities
Fast Assembly, Rock-Solid Connection
Designed for Flexibility and Fit
Fabrication Procedure
Material Selection and Cutting Preparation
Material selection and cutting preparation are critical first steps in any manufacturing project. Once the material is chosen, we will begin precision cutting. This process uses advanced numerical control cutting to shape the raw material into the correct length. Proper preparation is essential to prevent waste and mistakes, saving time and money.

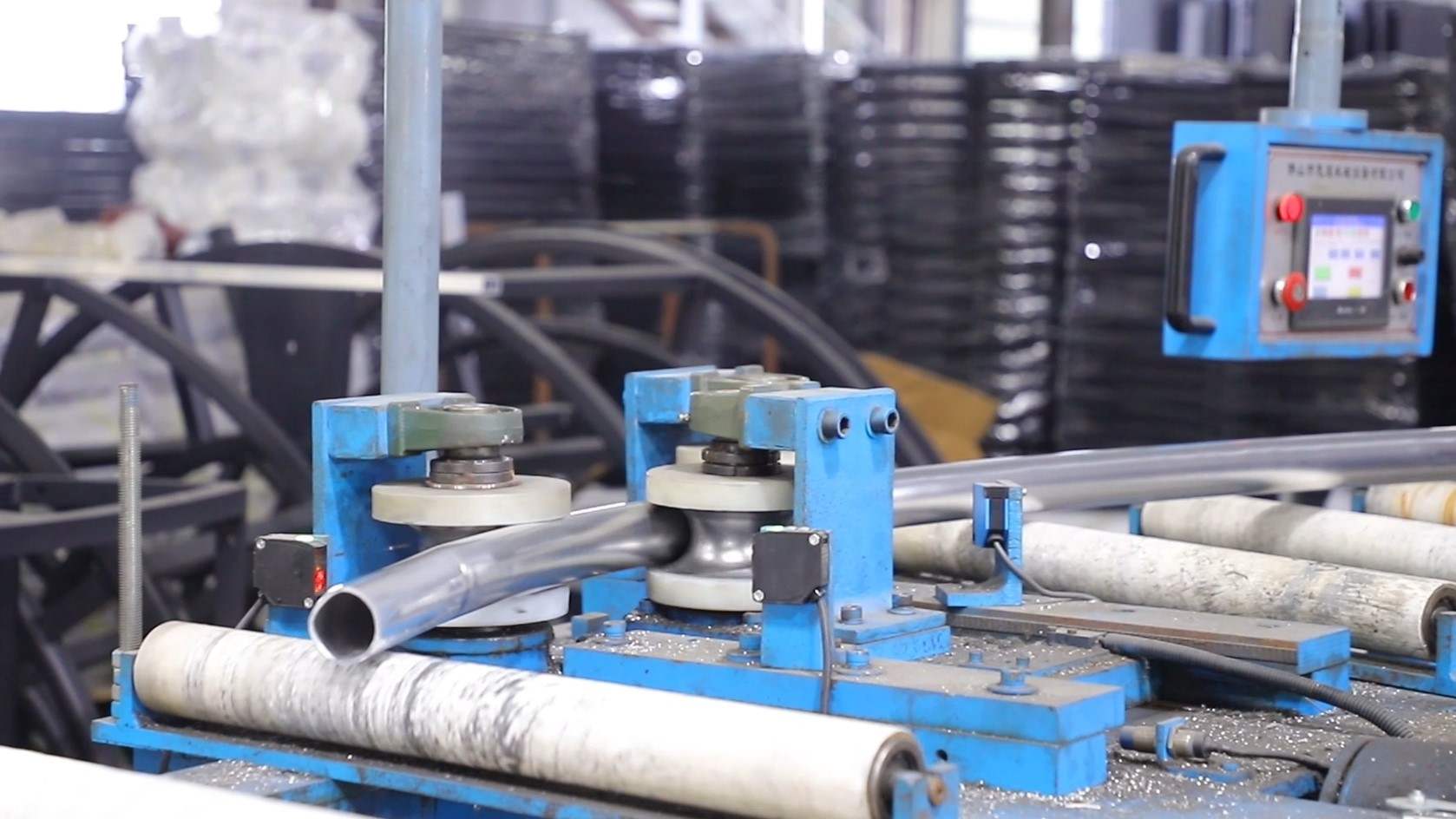

Tube Bending
Tube bending process is the fundamental step in creating special shape trusses. Tubes will be precisely bent to form the specific shapes needed for the truss's design. This process is critical because the accuracy of each bend directly affects the overall integrity of the final structure.
Precision Welding Process
Unlike welding by machines, a skilled human welder can adapt to complex and irregular shapes. They can also make real-time adjustments based on the material’s reaction to the heat. Manual welding gives us better control over the process. During welding, we also check the position of every tube to ensure proper alignment. After finishing, each weld is inspected to confirm the quality.
FAQ
1. Can I customize size, color, or shape of the truss system?
Yes, we offer full customization services. You can choose the size, color, and shape based on your needs. If you want a special requirement, we can make it for you. You can also choose custom finishes like powder coating on trusses. Just tell us your requirements, and we will create a solution that matches your project.
2. How can I customize my products？
Please share your specific requirements with us, including dimensions, colors, and any special design ideas you may have. We will then prepare a CAD drawing and a detailed quote based on your requirements. Once you confirm the design, we will begin manufacturing.
3. Is GF-Truss resistant to water, standing in water and extreme temperatures?
Yes, GF-Truss is made from high-strength aluminum alloy with excellent corrosion resistance, making it suitable for outdoor use in rain, standing water, and extreme temperature conditions. However, prolonged exposure to extreme temperatures 50°C or below -20°C may affect its long-term durability. For specific environmental requirements, we recommend consulting our technical team for customized solutions.
4. Do you offer installation assistance?
We have several options to help you with installation. First, we offer video guides that show you how to set up the truss structures step by step. If you need more support, we can send specialists to your site for on-site help. They will work with your team during the setup to make sure everything is installed correctly and safely.
