This 12×12 inch Aluminum Bolt Box Truss is engineered with heavy-duty 50x3.0mm main tubes and 20x2.0mm brace tubes to handle significant loads. It features a precision-milled, solid aluminum plate at every connection point. Built from aluminum 6061-T6 or 6082-T6, the integrated plate design provides a massive, flat-surface contact area that stabilizes the entire span. It's a technical solution designed to keep your rigging safe, even when loaded with high-torque moving heads or heavy LED panels.
Connection :
Bolts, Nuts and WashersProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingAvailable Length :
500/1000/1500/2000/2500/3000/4000mmProduct Introduction

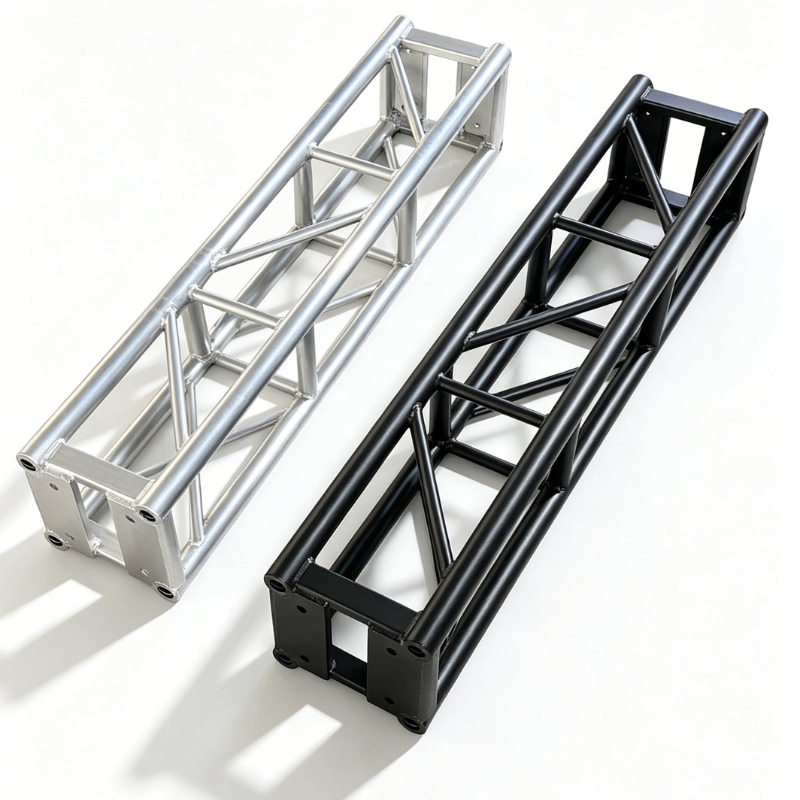

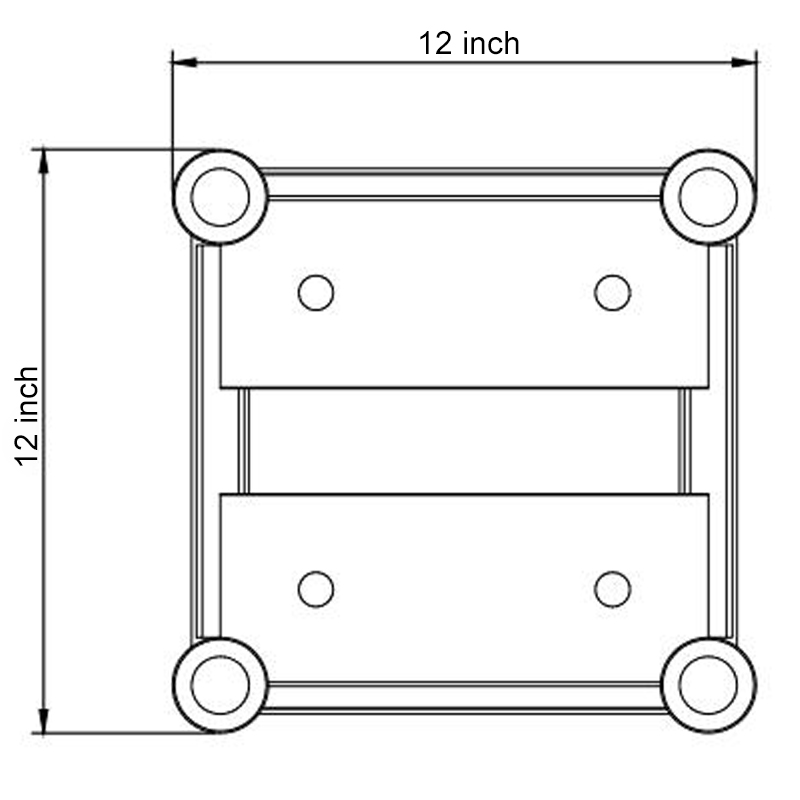

12×12 inch Aluminum Bolt Box Truss
When you are setting up a stage or an event, you need equipment that you can trust every single time. This bolt box truss is designed to be a workhorse for you because it focuses on strength and ease of use. Every piece is welded carefully to make sure the corners are square and the fit is tight. The reinforced plates at the ends mean that it can stop the whole truss from twisting or warping when you hang heavy equipment.
Product Parameters
| Main Tube Size | ⌀50*3.0mm |
| Vice Tube | ⌀20*2.0mm |
| Brace Tube | ⌀20*2.0mm |
| Material Type | Aluminum 6061/6082-T6 |
| Connection Method | Bolts, Nuts, Washes |
| Plate Thickness | 10mm |
| Available Lengths | 500mm/1000mm/1500mm/2000mm/2500mm/3000mm/4000mm |
| Weight (1000mm) | 10kg |
Product Advantage

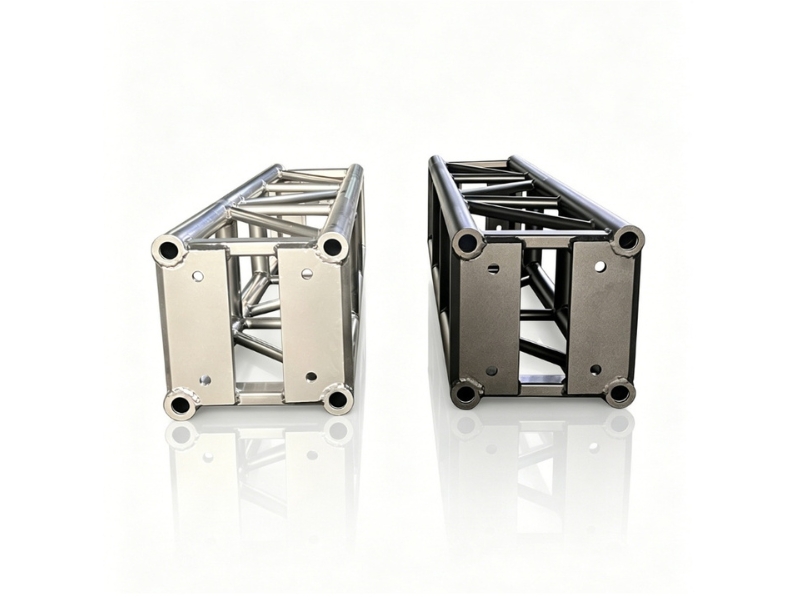

l Anti Torsion Reinforced End Plates
The end plates are welded to all four main chords to create a massive surface area for structural connection. This design prevents the truss from twisting under asymmetric loads. It is essential for enhancing the overall stability of the structure and significantly extending the working lifespan of the truss through years of heavy use.

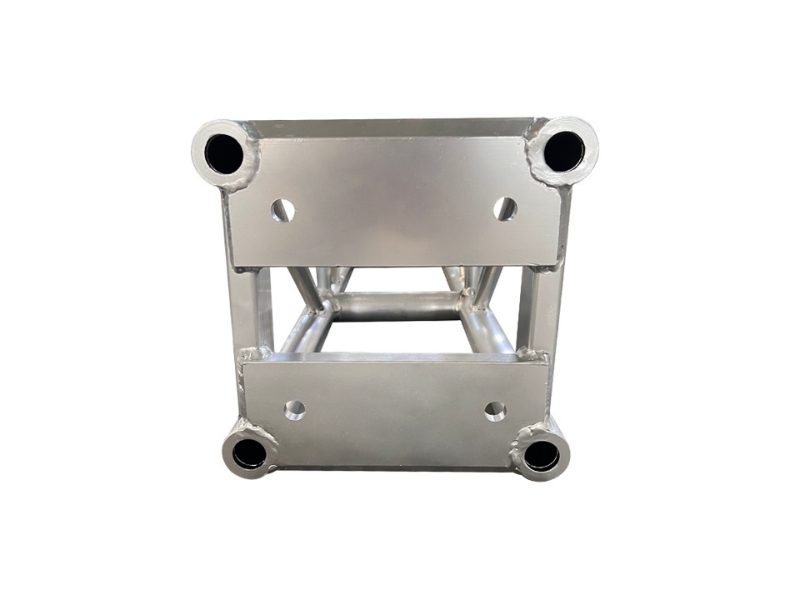

l Precision CNC Drilled Alignment
We use CNC machinery to drill the bolt holes in the end plates after the welding process is complete. This helps reduce misalignment issues that can happen when hole positions shift during production. More accurate hole placement also makes section-to-section connections smoother during assembly. The bolts fit more consistently, reducing the need for repeated adjustments on site.
l Certified High Penetration Hand Welding

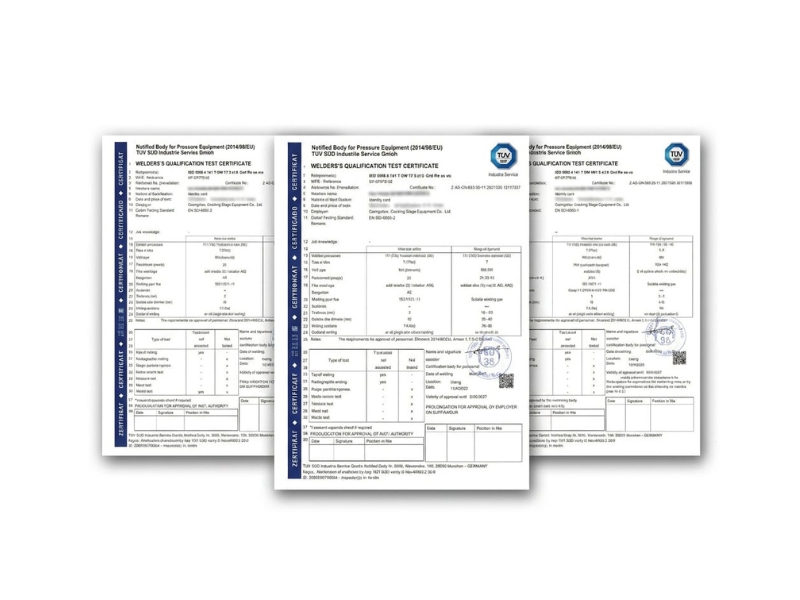

Every joint on the truss is hand welded using advanced TIG technology to ensure deep penetration at the chord to plate junction. Our entire production team consists of expert welders who hold international professional certifications, ensuring that every structural bond meets rigorous global safety standards.
Diverse Application
l Corporate Events and Exhibition Booths
This truss is perfect for building clean and professional looking booths for trade shows. It provides a very solid place to hang L screens, banners, and small lighting arrays without taking up too much room on the floor or looking too bulky for a corporate environment.

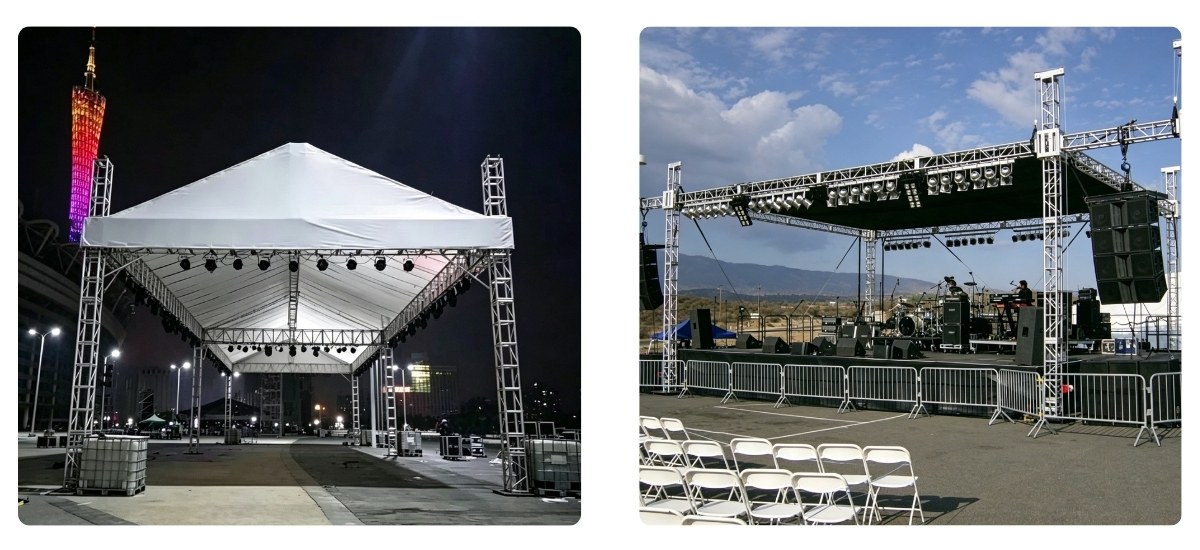

l Small to Mid Sized Stage Setups
For weddings, parties, or small club shows, this truss is the ideal size for a goalpost or a simple lighting truss system. It is easy to set up with a small crew and provides a very stable platform for the basic gear that most events require every day.

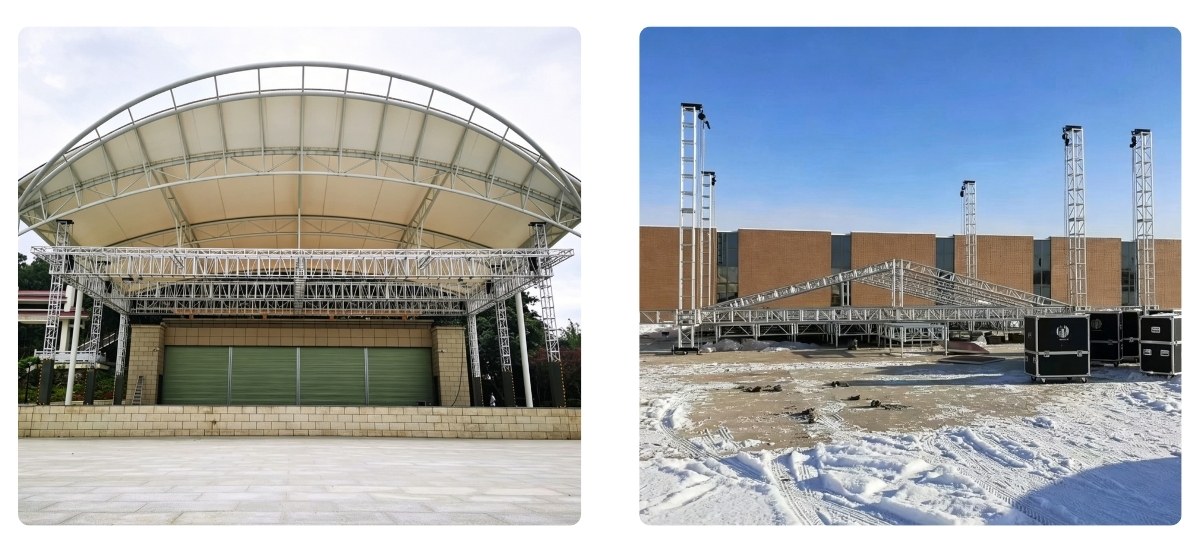

l Indoor Installations and Retail Displays
Many gyms, theaters, and stores use this truss for permanent grids because it is so reliable and easy to inspect. Once it is bolted together, it stays in place for years without needing any adjustment, making it a very low maintenance choice.
FAQ
Q: How many people do I need for setup?
A: For setting up a small structure like a goalpost truss system or a standard exhibition booth, we generally recommend a crew of 2 to 3 people. This allows one or two people to safely hold and align the truss segments while the third person manages the bolt installation and tightening process.
Q: What tools are required for assembly?
A: No special tools are needed. You just need a wrench, or a battery powered impact wrench if you want to speed up the process for a large scale grid or a complex stage setup.
Q: Does bolt truss take longer to assemble than spigot truss?
A: Usually yes. Bolt truss requires bolts and tools during installation, so setup is generally slower compared to quick-lock spigot systems. However, many crews still choose bolt truss for projects where connection rigidity matters more than setup speed.
