Aluminum Square Box Bolt Truss 400×600mm

This high load capacity aluminum 520x760mm spigot truss are made from high-strength aluminum alloy. It is constructed of main tube(⌀50x4.0mm), vice tubes(⌀50x2.0mm) and brace tubes (⌀30x2.0mm). The length of 520x760mm truss is available in 1000mm/2000mm/3000mm/4000mm. It has an excellent load-bearing and span capacity.

This large-scale black aluminum 650×1200mm spigot truss is constructed of main tube(⌀60×5.0mm), vice tubes(⌀50x×4.0mm) and brace tubes (⌀40×3.0mm). Equipped with the reinforced sleeves and the triangle plates, this 650×1200mm truss is more stronger and more resistant to deformation. It can also be designed as a pre-rig light truss, offering a very high loading capacity.

This is a lightweight square aluminum 290×290mm×1m spigot truss. The thickness of the main tubes is ⌀50×3.0mm, while the vice tubes and the brace braces are ⌀20×2.0mm. The pins and R-clip connection system ensures a quick and secure assembly, saving you valuable time on-site. It is a perfect solution for advertising displays or hanging lights.

Aluminum 305*305mm box truss is constructed of main tube(⌀50×3.0mm), vice tubes(⌀50×2.0mm) and brace tubes (⌀25×2.0mm). The two ends are designed with two thick aluminum plates ensuring a more stable and reliable structure. The recommended load-bearing span is within 14 meters.

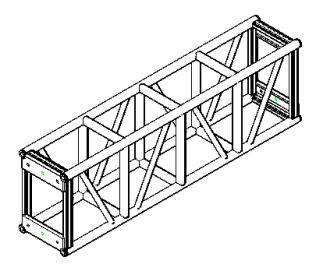

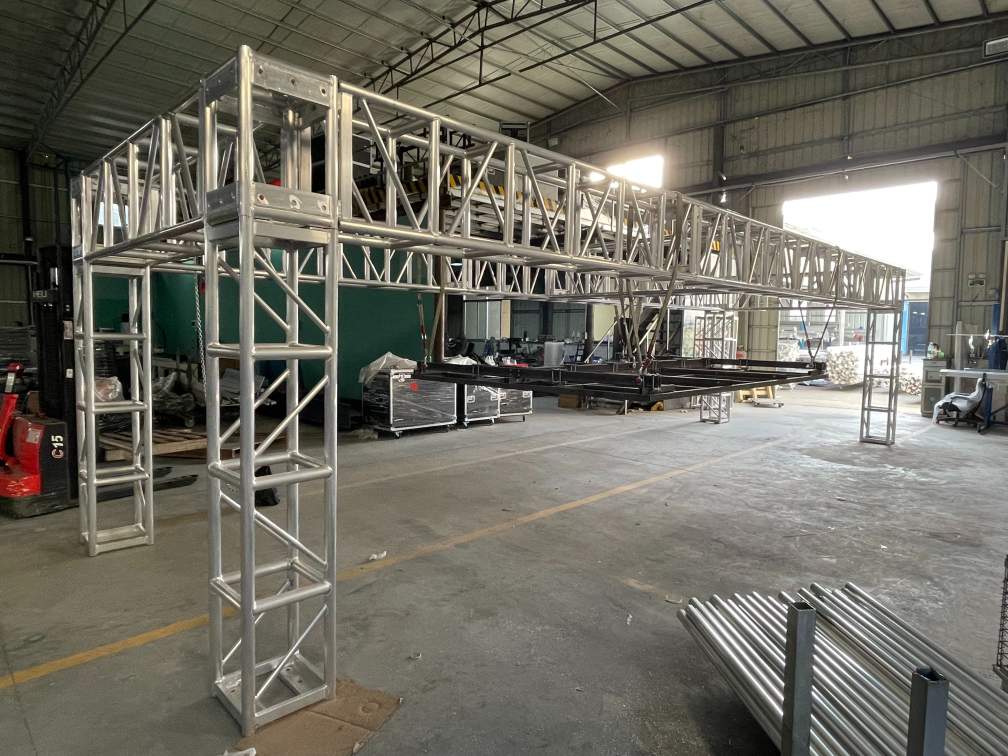

Aluminum square 400×600mm box truss is designed with two-sided brace tubes, commonly used for beams. Both ends are welded with aluminum plates, which can enhance the overall strength and stability. It can also be customized with four-sided brace tubes or X-shaped reinforcement in main tubes to accommodate higher load requirements.

Circle aluminum 290×290mm×4m truss has a diameter of 4 meters and cross-sectional dimensions of 290×290 mm. It is composed of four arc segments, each with an arc length of 3142mm. Aluminum Circle truss is made of high-strength aluminum alloy, which can offer excellent load-bearing capacity. Circle Truss is ideal for stage lighting suspension, exhibition installations, and various truss structures.

This 290×290mm×3m star shape aluminum truss is a non-standard shaped truss, made of high-strength aluminum alloy. The whole star-shaped truss has a diameter of 3m. The modular design allows for segmented assembly, making it easy to be installed according to different spaces.

This 400 × 400 mm spigot truss comes in a range of lengths, making it easy to fit into different booth truss or stage truss layouts. It is a solid choice for mid-span structures because it handles substantial loads while remaining manageable during transport and installation. This truss size is widely used in many projects, especially when customers need higher hanging points or wider spans without adding extra weight. Its strong structure makes it a dependable option for event truss systems, trade show booth truss setups, and stage lighting truss applications.
