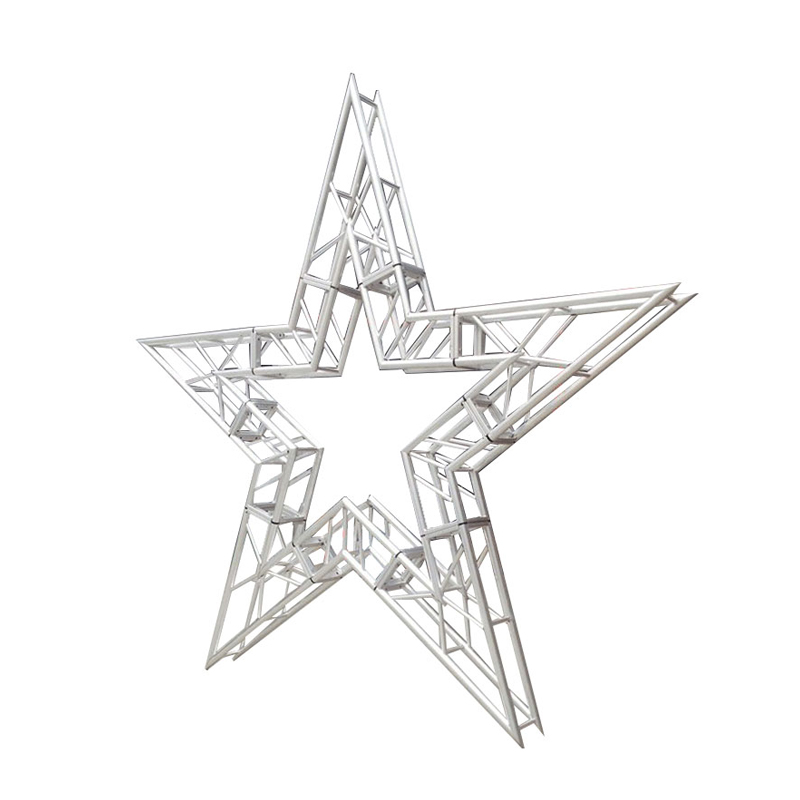

This 290×290mm×3m star shape aluminum truss is a non-standard shaped truss, made of high-strength aluminum alloy. The whole star-shaped truss has a diameter of 3m. The modular design allows for segmented assembly, making it easy to be installed according to different spaces.
Item No :
SV290-3Connection :
Pins, R-clipsProduct Origin :
Guangzhou, ChinaColor :
Sliver/BlackSurface Finish :
SprayingProduct Introduction
290×290mm×3m Star Shape Aluminum Spigot Truss
 |
If you are looking for visual impact and unique design, aluminum star-shaped truss is undoubtedly our top recommendation. It is available in a variety of sizes, truss dimensions, connection methods, and surface treatments, such as spraying and anodizing. Whether used individually or in combination with other truss structures, Star-shaped Aluminum Spigot Truss can achieve unique effects. |
Product Parameters
|
Material |
Aluminum Alloy 6061-T6/6082-T6 |
|
Size |
290×290mm (2-side Brace Tube) |
|
Color |
Silver/Black |
|
Main Tube |
⌀50*3.0mm |
|
Vice Tube |
⌀20*2.0mm |
|
Brace Tube |
⌀20*2.0mm |
Product Advantage
Sophisticated craftsmanship
Star truss is made of high strength aluminium alloy with precision welding and surface treatment. With excellent durability and corrosion resistance, it can stand up fearlessly to long-term or outdoor environments.
Unique shape
The star-shaped truss design is novel and highly recognizable, which can quickly attract the attention of the audience and improve the overall visual effect.
Support customization
The spigot star-shaped truss can be customized in terms of angle and size to meet the personalized requirements.
Fabrication Procedure
Material Selection and Cutting Preparation
GF-Truss uses high-strength aluminum alloy 6061-T6 to ensure our products are strong and durable. Before we start production, we will check all raw materials to make sure they meet quality standards. Then we will cut and shape the materials to get them ready for forming according to the design specifications.
4+4 Milling Machine
Aluminum components are processed with precision using preset programs. This milling machine makes complex components in one operation. This not only speeds up production but also ensures consistent accuracy across every piece. By reducing errors and eliminating rework, the process ensures we can consistently produce components that meet precise specifications.
Precision Welding Process
During production, we believe in using manual welding for the delicate parts. This is a technical task that requires welders to precisely control every joint with years of experience and superb skills. They not only need to precisely control the heat and depth of the weld, but also make instant adjustments according to subtle changes in the material to ensure that each weld is perfect.
FAQ
1. Can I customize size, color, or shape of the truss system?
Yes, we offer customization services including size, color and shape of truss systems. Just share your requirements and our team will provide tailor-made solutions to meet your needs.
2. How can I customize my products？
To customize your product, you need to share your requirements with us. We will create CAD drawings based on your needs and discuss the technical details with you. Once everything is confirmed, we will start production.
3. Is GF-Truss resistant to water, standing in water and extreme temperatures?
GF-Truss is made from strong aluminum alloy that resists corrosion. It works well in many temperatures. However, if it is exposed for a long time to extreme heat above 50°C or extreme cold below -20°C, its durability may be affected. For difficult environments, please consult our technical team for expert advice.
4. Do you offer installation assistance?
Yes. We provide step-by-step video guides to help you assemble the truss system easily and quickly. If you want more specific assistance, we can arrange for our specialists to assist you on-site. we can arrange for our specialists to assist you on-site. They will provide hands-on guidance during the installation.
