This 8-meter-long, 5-meter-high LED Screen Bracket is well-suited for large-scale outdoor events and sports venues where a wide LED screen display area is needed. To ensure stability, additional weights should be added during setup. We also recommend using our extra ladder trusses and enlarged bases to improve wind resistance and prevent forward tipping. Water tanks can be installed at the base for extra ballast.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
8×5mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×500mmProduct Introduction

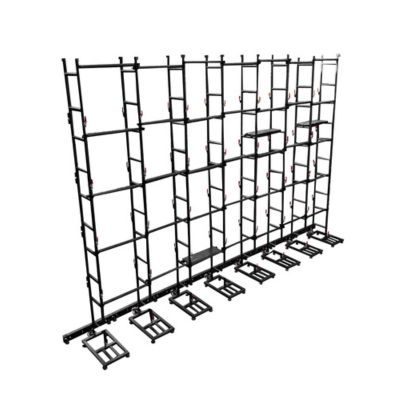

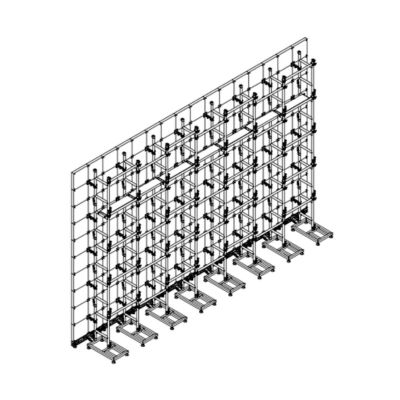

Aluminum LED Screen Bracket LED Stacking System 8*5m
As a patent producer of LED Screen Bracket in China, we highly recommend our 8*5m LED Screen Bracket. This bracket is made of high-strength aluminum alloy 6061-T6, which has been strictly tested to ensure the stability of its load-bearing screen. It performs effortlessly even when supporting large-scale LED screens display or in complex installation environments. We support custom cabinets’ hole spacing, so our patented Quick Lock comes in handy and can greatly improve your installation efficiency. Choosing our 8*5m LED Screen Ground Support is a professional, efficient and reliable guarantee.
Product List

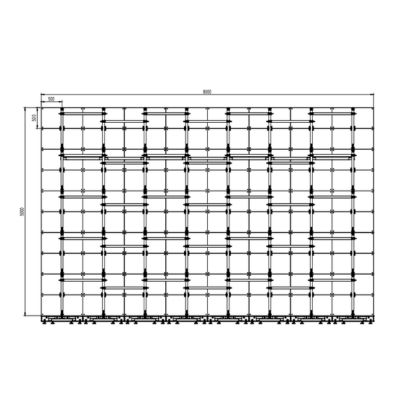

| Structure List: 8×5m LED Screen Bracket for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
8/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
8/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
40/pcs |
| 4 | Crossbar | Material: aluminum alloy Length: 1m/pc Measure: 50*50*1000mm |
35/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
40/pcs |
| 6 | Footboard | Material: aluminum alloy + 9mm plywood Measure: 380*85*1000 |
7/pcs |
Key Components
 |
Ground Beam: Unlike common Ground Beams on the market, our ground beam has special cabinet locks. They are easy to use and can connect the cabinets firmly, preventing them from loosening or moving during use. This improves the stability of the whole structure and makes installation faster and safer. |
|
Adjustable Base: The adjustable base is constructed from durable aluminum alloy with superior corrosion and rust resistance, allowing it to maintain structural integrity and remain deformation-free over years of use. |
 |
 |
Ladder Truss: The ladder truss is an important part of the LED Wall Ground Support. Vertically, it provides strong support for the adjustable base. Horizontally, it is firmly connected to each cabinet with a quick lock or screw lock, which stops any sideways movement. |
|
Quick Lock: If your cabinet has quick-lock holes, then you can lock the cabinets in only 5 seconds, which makes the setup much faster. This design removes the need for screws, so the whole process becomes easier and more efficient. |
|
 |
Screw Lock: If your cabinet does not have quick-lock holes, the screw lock will be the best choice. It works by connecting the locking holes of four nearby cabinets. It still keeps the structure stable and reliable for long-term use. |
|
Crossbar: The crossbar connects the ladder trusses, which helps reduce movement and keeps the structure strong. With this firm side connection, the force is spread evenly and focused, providing stable support for long-term use. |
 |
 |
Footboard: The footboard is installed between the ladder trusses, providing the installers with a convenient platform for working at height. It is optional, and you can decide whether to purchase it or not based on your actual needs. |
|

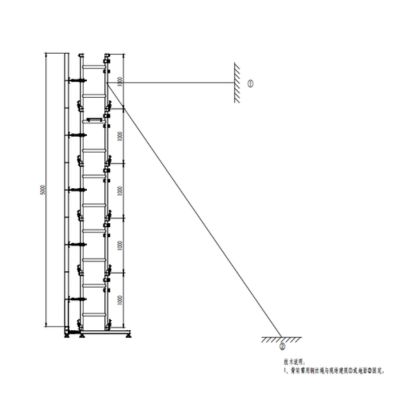

Weight: The counterweight is placed on the adjustable base to improve stability and prevent the screen from tipping forward. You can choose to purchase it or not according to your needs. |
 |
Why GF-Truss
Large-scale LED Screen Bracket · Reliable Solution
When it comes to contrasting large-scale LED screen supports, GF-Truss has extensive experience in designing and constructing stable and reliable LED Wall ground stacking structures. For customers who want a visually appealing display but do not wish to use a traditional goal post truss frame, GF-Truss offers the perfect alternative.

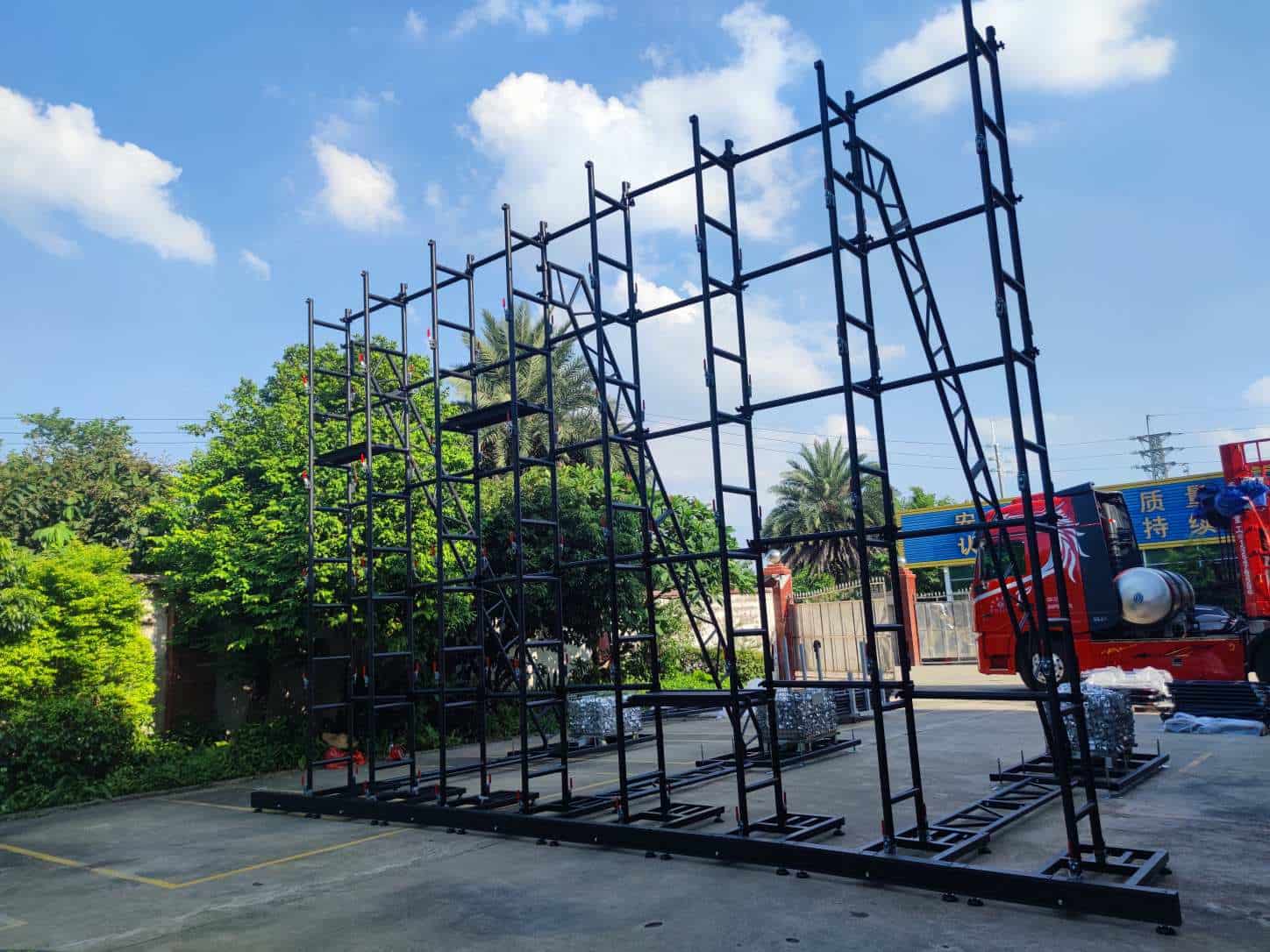

Our LED Screen Support System is made from robust but lightweight aluminum alloy, so it stays steady without being cumbersome. The modular design is like building blocks. You can easily adjust the size, height of your screen to fit your needs. Every part, from ladder trusses to crossbars and ground beams, is tested to make sure it can handle the load and last a long time, even under tough conditions!
