The 6*3m LED Wall Support Stacking System is a patented product developed by GF-Truss. This bracket is a hot product because of its solid structure and easy installation. All of our LED Screen Ground Support have a modular design. All parts are connected by Quick Locks. It is easy and convenient to install, requiring only 2 to 3 people. It is particularly well-suited for exhibitions, trade shows, stage performances, and commercial launches.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
8×5mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×500mmProduct Introduction

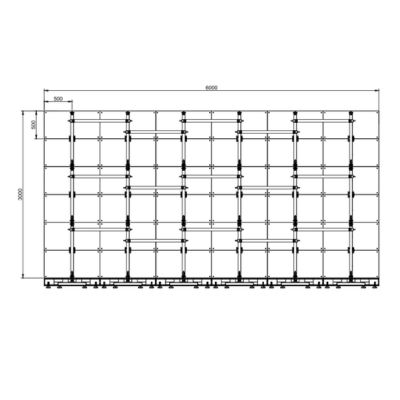

LED Wall Support Stacking System 6*3m

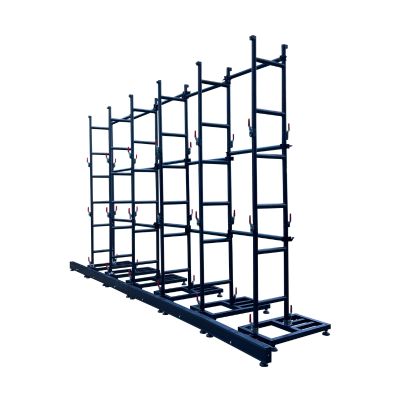

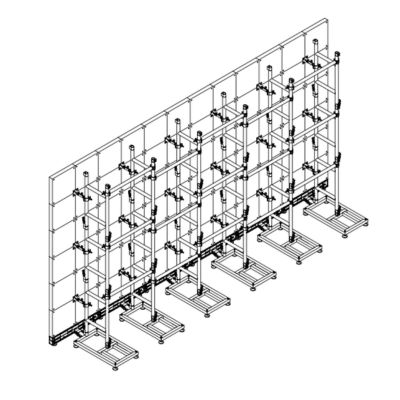

The 6×3m LED Wall Support Stacking System is one of our best-selling products, which can provide you with stable support for medium-sized video walls during various events. It ensures both reliability and easy installation. We recognize the importance of customized solutions, so please feel free to share your cabinet size and hole spacing — we’ll make sure the LED Wall Ground Support fits your specific setup needs.
Product List
| Structure List: 6×3m LED Wall Support Stacking System for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
3/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
3/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
6/pcs |
| 4 | Crossbar | Material: aluminum alloy Length: 1m/pc Measure: 50*50*1000mm |
4/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
6/pcs |
Key Components
 |
Ground Beam: The ground beams are securely fastened to the cabinet via cabinet locks, thereby enhancing the overall load-bearing capacity and safety. Our ground beams feature a patented design, incorporating special cabinet lock mechanisms that are simple to operate yet provide a firm lock on the screen panels. This effectively prevents loosening or displacement during use. Compared to common ground beams available on the market, GF-Truss’s ground beams significantly improve the safety of the cabinets. |
|
Adjustable Base: The adjustable base is constructed from durable aluminum alloy with superior corrosion and rust resistance, allowing it to maintain structural integrity and remain deformation-free over years of use. |
 |
 |

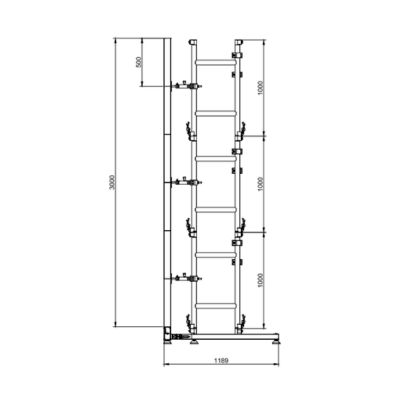

Ladder Truss: The ladder truss is the key part of the LED screen support system. It is mainly used to hold and connect the cabinets. It is light, strong, and not easy to deform. Compared to traditional connection methods using pins and clips, our ladder truss employs a quick-release locking system. Furthermore, our ladder truss has a quick-release lock, which makes installation much faster and easier. The ladder truss is designed to be flexible, and can be mixed and matched according to different screen sizes and display needs, rather than a fixed one-time setup combination. |
|
Quick Lock: The quick lock is a patented device developed by our company in order to make the LED Wall Stacking System much faster to install. Connecting it to the cabinet takes less than 5 seconds, which saves a lot of setup time. It is also built to stay strong and reliable, even after many times of disassemblies and reinstallations.
|
|
 |
Screw Lock: If your cabinet does not have quick-lock holes, the screw lock will be the best choice. It works by connecting the locking holes of four nearby cabinets. It still keeps the structure stable and reliable for long-term use. |
|
Crossbar: The crossbar connects the ladder trusses, which helps reduce movement and keeps the structure strong. With this firm side connection, the force is spread evenly and focused, providing stable support for long-term use. |
 |
 |
Footboard: The footboard is placed between the ladder trusses. It gives installers a safe and steady platform to work on, making installation and maintenance easier and safer. |
|
Weight: The counterweight is placed on the adjustable base to improve stability and prevent the screen from tipping forward. You can choose to purchase it or not according to your needs. |
 |
Innovative Patents · Reliable Quality
About LED Wall Ladder Truss
The ladder truss is also a patented product developed by GF-Truss. It's designed for efficient installation and ease of use. We've made a great breakthrough improvement compared to traditional ladder trusses on the market. Most of the ladder trusses for LED Screen Stacking use pins and R-clips for connection. However, our ladder truss is equipped with a quick-release locking system. It only requires simple operation to complete a firm connection, completely eliminating the cumbersome steps of pins and clips. This quick-release lock not only significantly reduces installation time but also reduces the complexity of manual operation.
More importantly, the quick-release lock maintains efficiency while ensuring firmness and stability, avoiding safety hazards caused by loose connections. Therefore, if you are looking for an LED display screen bracket that can ensure safety and stability while taking into account efficiency and convenience, GF-Truss will be your ideal choice!
This is a 4m long and 3m high LED Screen Ground Support. It is built with standard aluminium alloy truss 6061-T6. The main structure includes base, ground beam, ladder truss, crossbar and other components. This LED Screen Ground Support is suitable for small and medium-sized needs. The bottom of it is equipped with adjustable feet for quick levelling on uneven ground.
Read More
This LED Wall Ground Support with a size of 3 meters long and 2 meters high is built with a standard aluminum alloy truss 6061-T6. It is suitable for temporary construction needs of small LED screens, such as conference background screens, indoor displays or advertisements. It can be customized to fit different screen sizes and according to your needs. The bases support the installation of wheels for easy mobility, improving setup and dismantling efficiency.
Read More
This 8-meter-long, 5-meter-high LED Screen Bracket is well-suited for large-scale outdoor events and sports venues where a wide LED screen display area is needed. To ensure stability, additional weights should be added during setup. We also recommend using our extra ladder trusses and enlarged bases to improve wind resistance and prevent forward tipping. Water tanks can be installed at the base for extra ballast.
Read More
The 6*3m LED Wall Support Stacking System is a patented product developed by GF-Truss. This bracket is a hot product because of its solid structure and easy installation. All of our LED Screen Ground Support have a modular design. All parts are connected by Quick Locks. It is easy and convenient to install, requiring only 2 to 3 people. It is particularly well-suited for exhibitions, trade shows, stage performances, and commercial launches.
Read More
This is our medium-sized LED Video Wall Ground Support. With a length of 6 meters and a height of 4 meters, it is suitable for many product launches, conferences or performances. It skillfully balances space occupation and load-bearing requirements. It does not look bulky and heavy, but also can steadily support all kinds of mainstream LED cabinet sizes. What's more worth mentioning is that GF-Truss supports mixed use of 500*500mm and 500*1000mm cabinets, satisfying flexible adaptation to different cabinet sizes and layout requirements.
Read More
The Ballast System Enlarged Base LED Video Wall Ground Support is specially designed for large-scale LED displays. It maintains a stable structure while enhancing load-bearing capacity and safety performance. In addition to the adjustable base and ground beams, it features aluminum ladder trusses and enlarged bases, which provide a larger base area for stability.
Read More
All parts of the 5*3m LED Wall Ground Support are made of high-strength aluminum alloy 6061-T6. Its surface is painted to resist rust, making it suitable for long-term and repeated use. Compared to most similar LED wall ground support available on the market, our 5*3m bracket features a more streamlined design that occupies less space.
Read More
This Curved LED Screen Ground is 8 meters long and 4 meters high. It allows for easy angle adjustments within a range of ±10 degrees. The curved LED Screen Ground Support also supports the mixed-use of the cabinets. Whether for performances, rental events, or permanent installations, GF-Truss provides stable, efficient, and flexible solutions.
Read More
