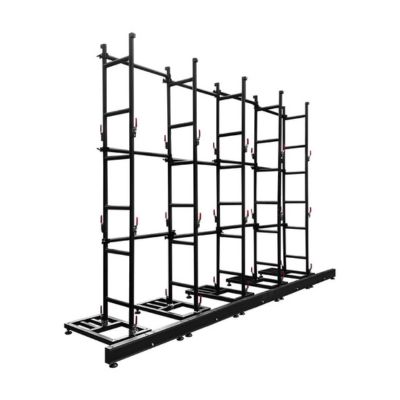

All parts of the 5*3m LED Wall Ground Support are made of high-strength aluminum alloy 6061-T6. Its surface is painted to resist rust, making it suitable for long-term and repeated use. Compared to most similar LED wall ground support available on the market, our 5*3m bracket features a more streamlined design that occupies less space.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
5×3mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×1000mmProduct Introduction

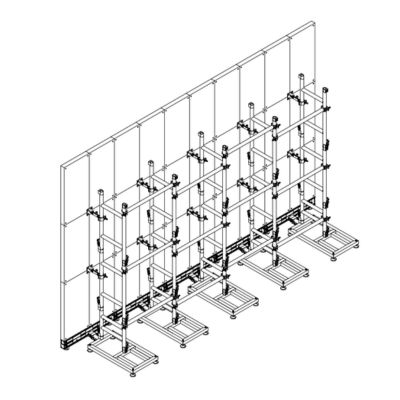

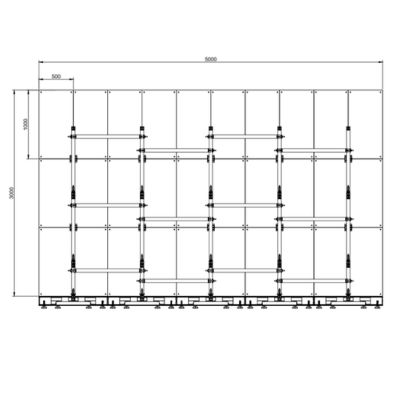

LED Video Display Ground Support 5*3m
The overall design is simple, requiring minimal tools, so even non-professionals can easily set it up. This structure incorporates a quick-lock mechanism, significantly reducing the number of screws needed and improving construction efficiency. Let us know your desired size, and we will provide you with an LED Wall Ground Support solution that meets your needs!
Product List
| Structure List: 5×3m LED Video Display Ground Support for 500×1000mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
5/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
5/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*500mm |
5/pcs |
| Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
10/pcs | ||
| 4 | Crossbar | Material: aluminum alloy Length：1m/pc Measure: 50*50*1000mm |
12/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
10/pcs |
Key Components
 |
Ground Beam: Most ground beams on the market only offer basic support. They can't secure the cabinets. Our ground beam is completely different. It has a unique and exclusive cabinet lock. This lock holds your display cabinets firmly in place. It prevents them from loosening or shifting from bumps or movement. This greatly improves the stability of the entire structure. Your large screen will be rock-solid in any environment. You can have peace of mind. |
|
Adjustable Base: The adjustable base is constructed from durable aluminum alloy with superior corrosion and rust resistance, allowing it to maintain structural integrity and remain deformation-free over years of use. |
 |
 |

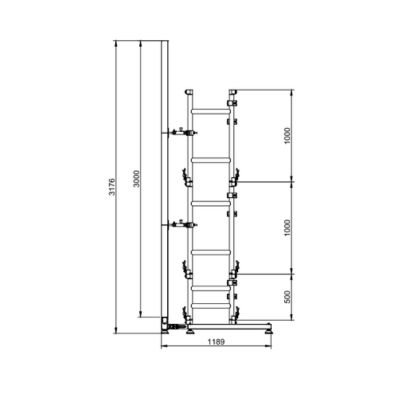

Ladder Truss: The ladder truss plays a crucial role in the entire LED Wall Ground Support. Vertically, it offers strong support for the adjustable base. Horizontally, it is securely attached to each cabinet using either a quick lock or screw lock, preventing any lateral movement. |
|
Quick Lock: The quick lock makes setting up a screen display much faster. Compared to traditional installation, screw lock requires numerous screws. With our quick lock, you simply need to align it and click it into place. The whole process only costs just a few seconds. |
|
 |
Screw Lock: Screw locks are essential for the structural safety of any LED screen. It provides long-term stability. This makes it perfect for permanent installations. They all have strong grip and can withstand vibrations and external forces over time. They won't easily loosen, even in strong winds or in crowded areas. |
|
Crossbar: The crossbar links the ladder trusses together, which helps limit the movement and keeps the structure firm. With this strong side connection, the force is spread more evenly and stays focused, giving stable protection for long-term display use. |
 |
 |
Footboard: A footboard gives installers a safe and stable platform when they work at height, especially building large-scale screen displays. It is also a must-have for later maintenance. It makes the work more efficient and keeps the site safe. The footboard is a necessary tool for every project. |
|
Weight: A counterweight is key for projects for high wind or outdoor events with large screens. By adding weight to the bottom, it lowers the center of gravity. This makes the whole LED Wall System much more wind-resistant. GF-Truss strongly recommend a ballastounterweight for any LED video display over 3 meters heigh. Different weights can be mixed and matched. This makes it easy to adjust for any project size. For a large event where you want complete safety, the counterweight is your invisible guardian. |
 |
FAQ
1. Is this LED Screen Ground Support System compatible with my LED cabinets?
Our LED Screen Ground Support is engineered for wide compatibility. The adjustable components and standard connections are designed to work seamlessly with most common LED cabinets on the market. For specific models, you can contact us directly.
2. What about wind and weather? Will my screen be safe?
The safety of your screen is our top priority. Our system’s high load capacity and anti-tip design provide excellent stability outdoors. We always recommend using a counterweight or ballast system. This helps counter wind forces. It can keep your LED display stays secure in all weather.
3. Is this LED Screen Ground Support System durable enough for repeated use and transport?
Yes, absolutely. Our LED Wall Display System is made with durable and high-grade aluminum alloy. It's built to withstand the demands of frequent setups, teardowns, and transport. It is the perfect choice for rental and touring companies.
