This is our medium-sized LED Video Wall Ground Support. With a length of 6 meters and a height of 4 meters, it is suitable for many product launches, conferences or performances. It skillfully balances space occupation and load-bearing requirements. It does not look bulky and heavy, but also can steadily support all kinds of mainstream LED cabinet sizes. What's more worth mentioning is that GF-Truss supports mixed use of 500*500mm and 500*1000mm cabinets, satisfying flexible adaptation to different cabinet sizes and layout requirements.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
6×4mLocking System :
Screw LockBuilding Shape :
StraightCompatible Cabinet Size :
500×500mmProduct Introduction

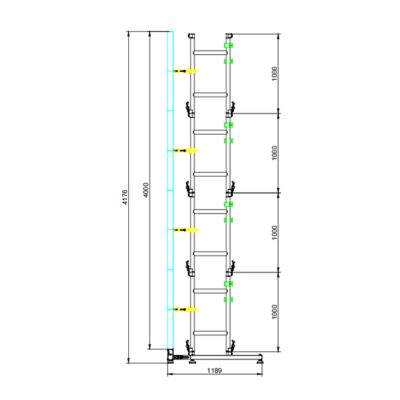

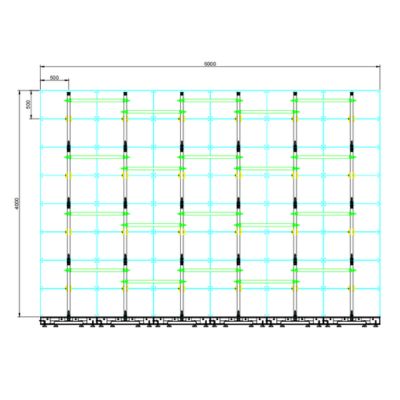

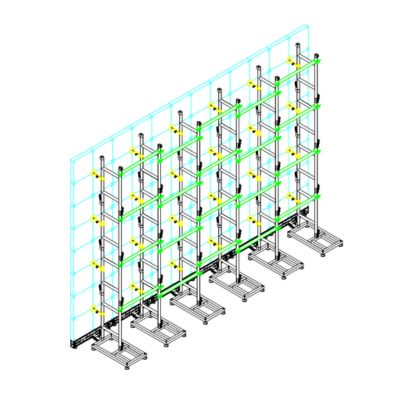

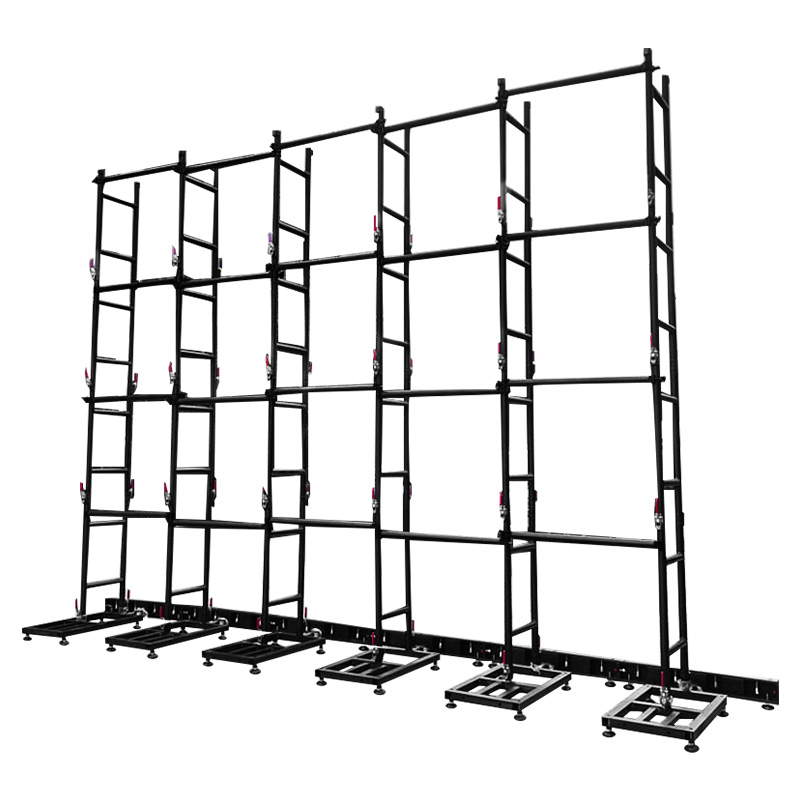

LED Video Wall Ground Support 6*4m
This 6*4m LED Video Wall Ground Support is one of the specifications favored by most customers. It prioritizes stability and efficiency while ensuring a secure installation for large screens. To address concerns about installation speed, GF-Truss adopts a special quick-lock mechanism that allows for rapid assembly and disassembly. Compared to traditional pin and bolt connections, this way saves both labor and time costs.
Product List
| Structure List: 6×4m LED Video Wall Ground Support for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
6/pcs |
| 2 | Ground Beam | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 150*500*1000mm |
6/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
24/pcs |
| 4 | Crossbar | Material: aluminum alloy Length: 1m/pc Measure: 50*50*1000mm |
20/pcs |
| 5 | Screw Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
24/pcs |
Key Components
 |
Ground Beam: GF-Truss's ground beams are securely fastened to the cabinet via cabinet locks, which effectively boosts the overall load-bearing capacity and safety. Our ground beams have a patented design with a unique cabinet lock mechanism. It Is simple to operate yet provides a very firm lock on the screen panels. This effectively prevents any loosening or displacement during use. Compared to common ground beams on the market, our ground beams significantly enhance the safety of the cabinets. |
|
Adjustable Base: The adjustable base is made from a robust aluminum alloy that resists corrosion and rust. This makes sure it stays strong and it will not deform even with years of use. |
 |
 |
Ladder Truss: The ladder truss is a core component of our LED screen support system. Its main role is to hold and connect the screen cabinets. It's built to be lightweight, strong, and resistant to deformation. Unlike traditional pins and clips connection, our ladder truss uses a quick-release locking system that makes installation much faster and easier. Its flexible design can also let you mix and match it for different screen wall sizes and display needs, so you’re not stuck with a single and fixed setup. |
|

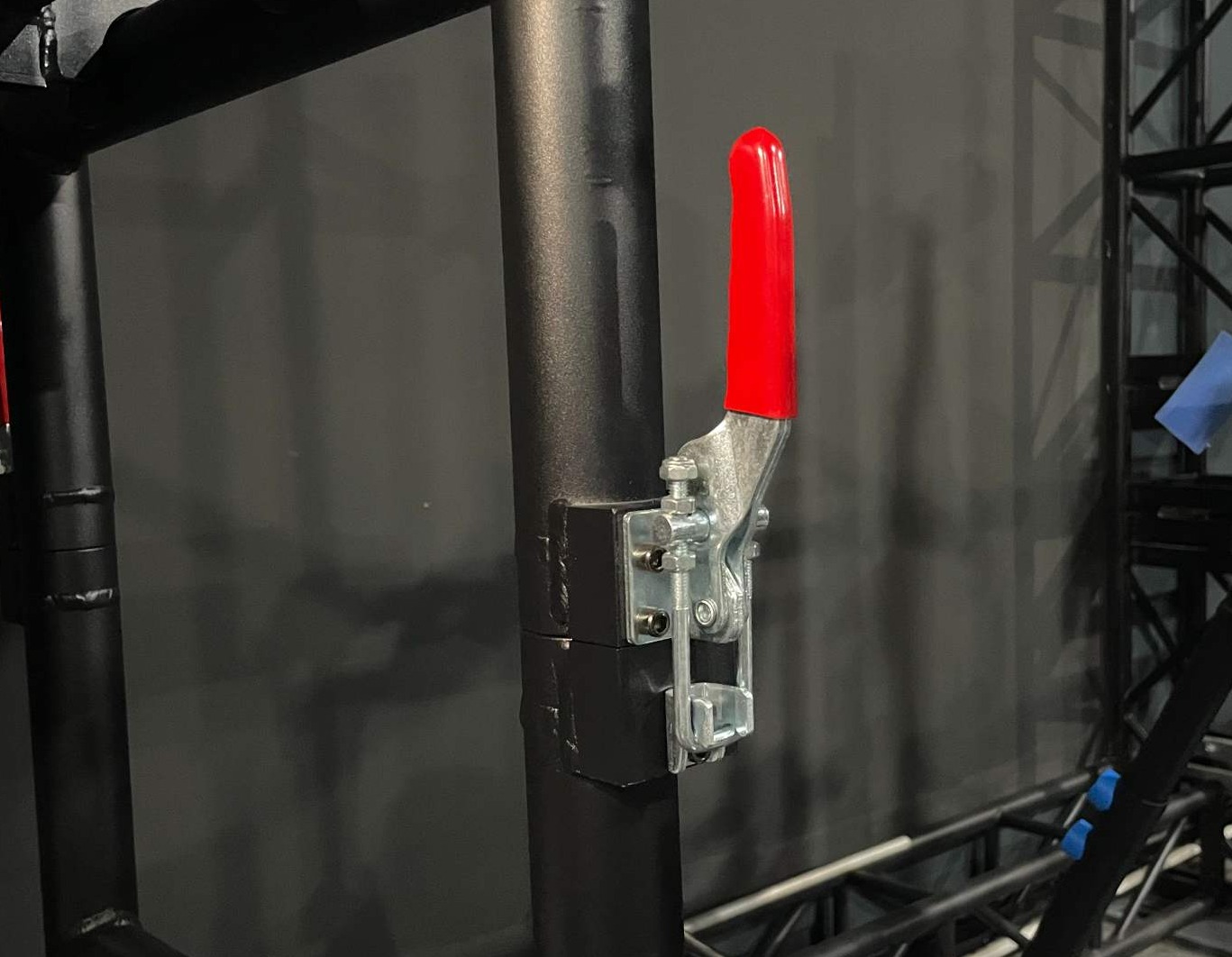

Quick Lock: Our quick lock is a patented device we developed to make our LED Video Wall Ground Support much faster to install. You can connect it to the cabinet in less than 5 seconds, which cuts down on installation time. It's also engineered to maintain its strength and dependability through repeated assembly and disassembly.
|
|
 |
Screw Lock: For a cabinet without quick-lock holes, the screw lock is the perfect solution. It connects the locking points of four adjacent cabinets, keeping the entire structure stable and dependable for a long time. |
|
Crossbar: The crossbar connects the ladder trusses, which helps reduce movement and keeps the structure strong. With this firm side connection, the force is spread evenly and focused, providing stable support for long-term use. |
 |
 |
Footboard: The footboard is placed between the ladder trusses. It gives installers a safe and steady platform to work on, making installation and maintenance easier and safer. |
|
Weight: The main purpose of the counterweight is to add stability to your LED video wall support, protecting it from wind or accidental bumps that could cause the screen wall to tip. We recommend carefully evaluating your needs based on the screen's size, height, and environment to maximize the safety of your setup. To address potential stability issues, we recommend using a ballast when necessary, bolting the base into solid concrete, or securing the entire structure with steel cables. |
 |
Innovative Patents · Reliable Quality
About Patented Quick-release Locking
When it comes to LED video walls, installation efficiency and structural safety are the two elements that users are most concerned about. In order to meet these needs, GF-Truss had independently developed and obtained the patent for the quick-release locking device of the LED video wall Stacking.
This device is aimed to make setup faster while maintaining the stability and reliability of the LED Video Wall system. Traditional LED video wall ground support often connected by cumbersome pins and R-clips, which undoubtedly increases the workload and time cost. And our quick-release locking device completely changes this traditional method. Its core design concept revolves around "fast, easy and safe".
This lock can make ladder trusses firmly connected together in seconds. A single quick-release lock can be controlled in seconds, which can save a lot of time for large LED video wall projects that require rapid construction and disassembly. We know that our customers' trust comes from the reliability of our products. We are proud that we haven’t received any negative feedback about difficult installation or security vulnerabilities.
