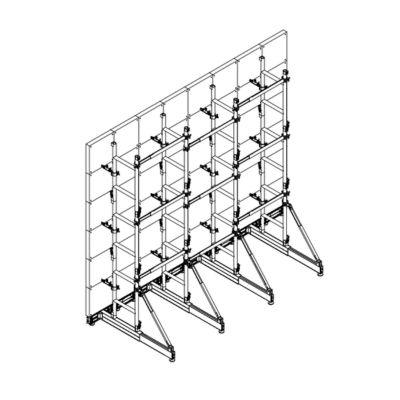

This is a medium-sized 4*3m Curved Ground Support for LED Wall. The whole structure is made from high-quality aluminum alloy, making it both lightweight and strong. This curved bracket can be used in various settings, such as stage events and exhibition displays. Whether you want to create a visual effect or meet high standards of structural safety requirements, it offers a reliable and professional bracket solution for your LED display.
Material :
Aluminum AlloySurface Finish :
SprayingSize :
4×3mLocking System :
Quick LockBuilding Shape :
CurvedCompatible Cabinet Size :
500×500mmProduct Introduction

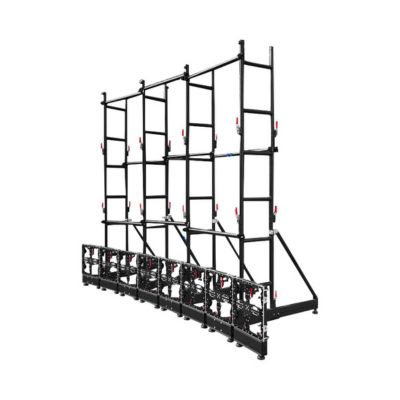

Curved Ground Support for LED Wall 4*3m
If you are looking for an eye-catching visual focal point for an exhibition, advertising, or immersive space, Curved Ground Support for LED Wall 4*3m is perfect for you. The bracket can be easily adapted to fit the site's requirements, allowing for three structure modelling in a straight line, inner arc, or outer arc. With a modular design, setup on-site is efficient, and maintenance is straightforward. The surface is sprayed with a protective coating, making it sturdy enough for long-term indoor or outdoor use.
Product List
| Structure List: 4×3m Curved Ground Support for LED Wall for 500×500mm Cabinet | |||
| NO. | Item Name | Specification | Quantity |
| 1 | Adjustable Base | Material: Aluminum alloy 6061-T6 Adjustable Length: 850~1500mm |
4/pcs |
| 2 | Ground Beam | Material: Aluminum alloy 6061-T6 Material size: 450*68*166mm |
8/pcs |
| 3 | Ladder Truss | Material: aluminum alloy 6061-T6 Main Tube: 50*3mm Measure: 50*500*1000mm |
12/pcs |
| 4 | Quick Lock | Material: aluminum alloy+Iron stretchable clamp Customized per cabinet's pitch of hole |
12/pcs |
| 5 | Telescopic Crossbar |
Material: 6061-T6 aluminum alloy Adjustable Length: 800~1500mm |
21/pcs |
| 6 | Diagonal Bracing |
Material: 6061-T6 aluminum alloy Material size: outer tube: 50*3*650mm; inner tube: 44*3*600mm |
9/pcs |
Key Components
 |
Ground Beam: Ground Beam for Curved LED Wall Support is shorter than the ones used for straight screens. The standard size is 500mm. This reduced length makes it much easier to create a perfect and smooth arc. Adjacent ground beams connect using pins. You only need to bring them together and then drop in the pins. |
|
Adjustable Base: The Adjustable Base for our curved system looks very different from the base used for straight LED wall. We changed the conventional rectangular base to a sleek and strip shape. This design has an inner and an outer tube, allowing it to extend from 850mm to 1500mm. It also has adjustable feet, making it easy to level the stand on uneven ground. |
 |
 |
Ladder Truss: The Ladder Truss comes in a range of lengths, like 500mm, 900mm, 1000mm and 1100mm, etc.. We will match the size to your specific needs. All our ladder trusses are strictly tested in real use. We have got zero negative reviews from our customers. |
|
Quick Lock: Forget the complicated screw installations！ Our Quick Lock makes setting up an LED Wall display much faster. You just align the cabinet with the lock hole and gently twist. The connection is secure and takes only seconds. This innovative design greatly shortens your setup time. It also cuts down on tool use. The whole process becomes simpler, more efficient, and safer. |
|
 |
Hinge Lock: Unlike common screw locks, our hinge lock has an adjustable angle design. This allows installers to flexibly adjust the angle of the screen, making it ideal for curved or uniquely shaped screens. It can ensure the Curved LED Wall Stand stays strong and stable even when you adjust different angles. |
|
Telescopic Crossbar: Unlike the fixed-length crossbar used for LED screen ground support, the Telescopic Crossbars offer adjustable lengths, making them ideal for curved LED Wall designs. Due to fixed-length rods can't meet the precise needs of varying curvatures, the flexibility of telescopic crossbars allows them to perfectly accommodate the shapes of displays with different arcs. |
 |
 |
Diagonal Bracing： The Diagonal Bracing is a critical support component of the Curved LED Display Ground Support. It provides the whole structure extra stability through diagonal support. Unlike the fixed-length diagonal braces, the diagonal bracing is adjustable, allowing for flexible length adjustments based on the length of the adjustable base and the on-site environment. |
|
Footboard: The footboard for the Curved Ground Support is an efficient support tool specifically designed for the installation and maintenance of large LED displays. Its unique design features two telescopic clamps at each end, so that it can firmly attach to the ladder trusses while flexibly adapt to different angles. |
|
|
|
Weight: The weight used for the curved LED screen ground support differs from standard design weights. A special groove is designed at the bottom of the weight to securely accommodate the adjustable base of the curved LED screen ground support. This design can ensure that the weight is firmly fixed to the adjustable base. Of course, this is an optional component that you can choose to purchase according to your needs. |
Innovative Patents · Reliable Quality
 |
Why Your Curved Screen Displays Need Our Patented Hinge Lock? Traditional screw locks often fall short when building curved LED displays. They fix angles and lack flexibility, making them suitable only for straight screen splicing. When dealing with curved shapes or curved screens, you may get uneven splicing gaps and unbalanced structural stress. This also makes installation much harder. Ultimately, it even affects the screen's flatness and visual effect.
That's why GF-TRUSS launched this patented Hinge Lock. The biggest advantage lies in its innovative adjustable angle design. You can precisely adjust the opening and closing of the hinges and the length of the locking bar for each cabinet, achieving smooth and natural curved splicing.
It ensures a stable and reliable connection. Our hinge lock can make your curved screen look perfect, whether for a temporary event or a long-term installation.
Choose our patented hinge lock to make your curved screen display structure flatter and more professional. Every display deserves such an efficient, safe, and reliable support accessory. |
